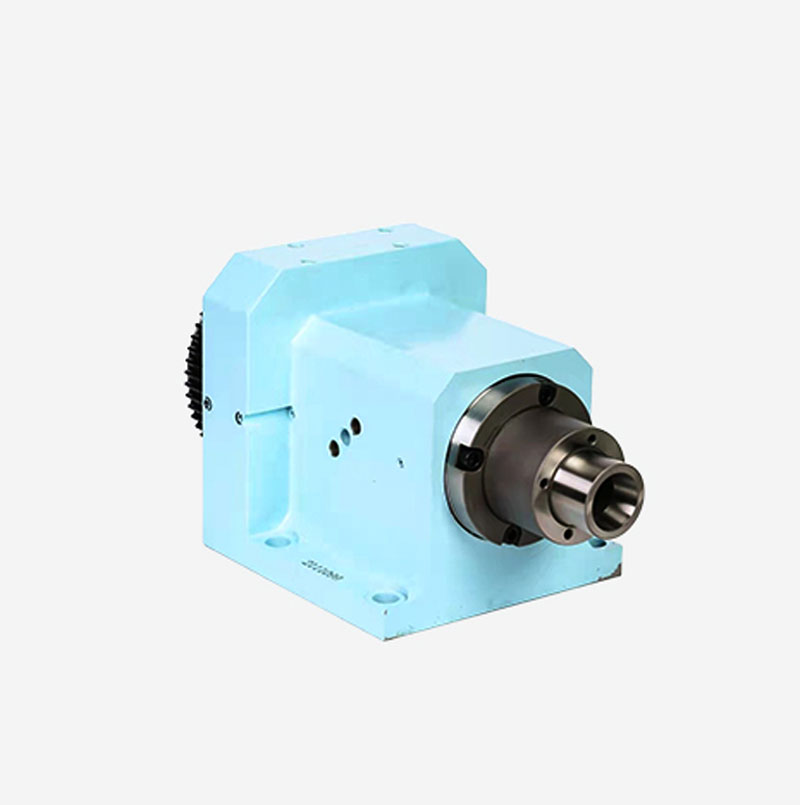

JAT tool grinder spindle holder

Add.: Yaoguan, WuJin District, Changzhou, Jiangsu, China 213000
Contact Person: Joanna Zhou
Mobile/Whatsapp/Wechat: <a href="https://api.whatsapp.com/send?phone=613815018181Joanna zhou 8618861119906Jane zhang" target="_blank"> 8613815018181Joanna zhou 8618861119906Jane zhang

Inquire Now Next

Product Details

Product Features：
● Shackleberry high-precision spring bobbin clamp design
● Single bobbin clamp, the precision of clamp base body is 0.005mm, and the precision of workpiece repeated clamping is ≤0.01mm
● The maximum working pressure is 6kg/cm², Maximum speed ≤500 rpm/min
● The assembly of the clamp seat is shown in the figure, which can be designed horizontally, ≤45°, 90° installation as required,
● Piston area: 68 * 2cm²The piston moves inward, and the workpiece is clamped. The piston stroke is 5mm, and the clamping stroke is 1mm
● Concentric datum at "0" position ensures concentricity.
● Composite waterproof mechanism design ensures waterproof performance
● Different clamping methods can be made according to the workpiece and processing

Product Application：
● It is mainly used in tool grinding industry and high-precision shaft processing.

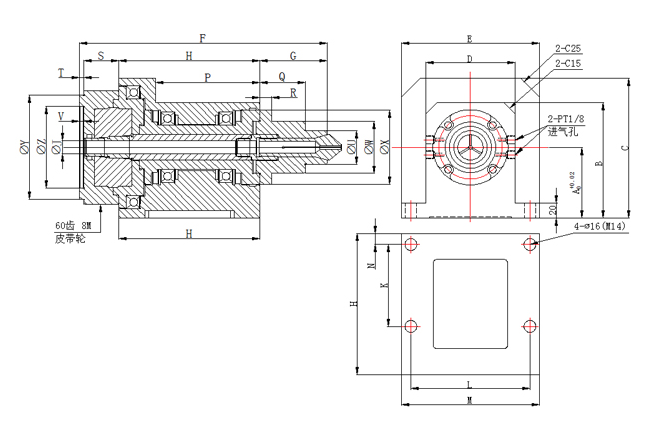

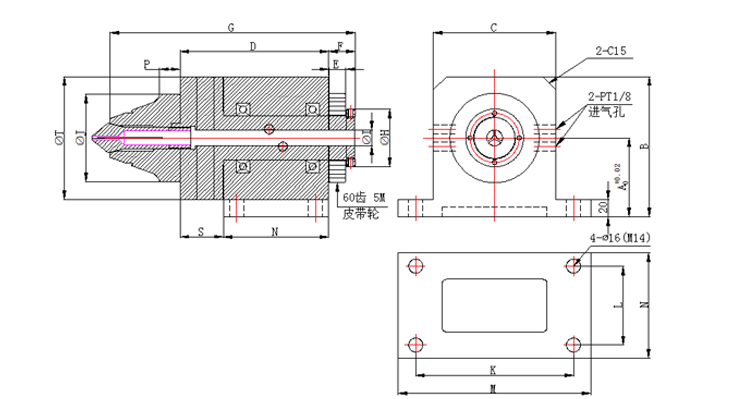

Product Size

Product Parameters

Product Model	Product Parameters
	A	B	C	D	E	F	G	H	I	J	K
JAT-W20(D-S)	90	160	140	169.5	19.5	29.5	269	66	18	100	180
JAT-W25(D-S)	90	160	140	169.5	19	30	279.5	66	18	100	180

Product Model	Product Parameters
	L	M	N	P	S	T	Adapt to bobbin clamp	pulley
JAT-W20(D-S)	90	220	120	15	49.5	140	W20 Bobbin clamp	60 gear-5M
JAT-W25(D-S)	90	220	120	24	49.5	140	W25 Bobbin clamp	60 gear-5M
