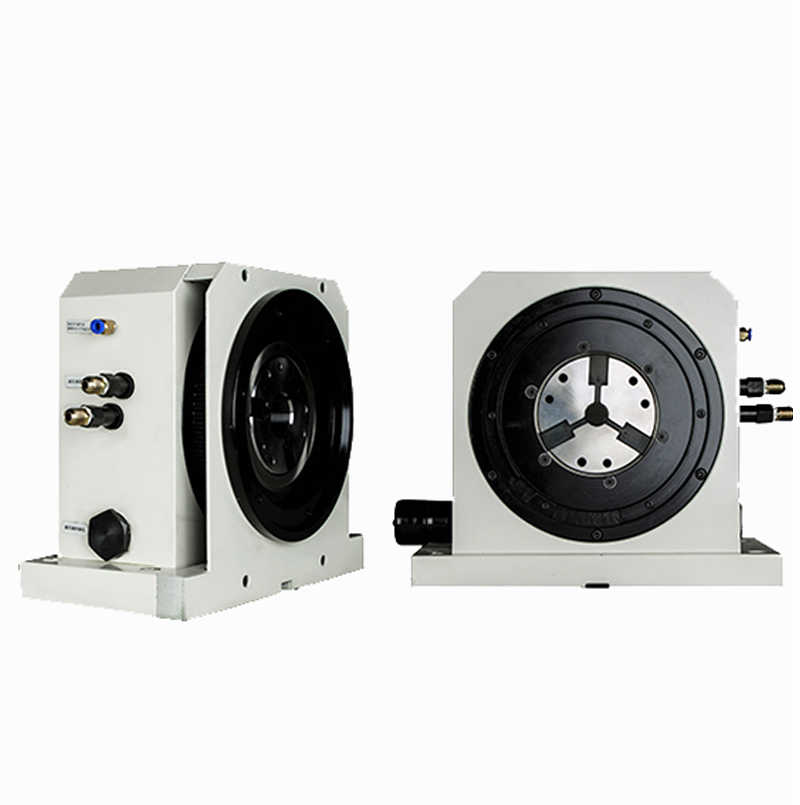

JHP-72 Standard Double Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp (Extension sleeve can be added)

Add.: Yaoguan, WuJin District, Changzhou, Jiangsu, China 213000
Contact Person: Joanna Zhou
Mobile/Whatsapp/Wechat: <a href="https://api.whatsapp.com/send?phone=613815018181Joanna zhou 8618861119906Jane zhang" target="_blank"> 8613815018181Joanna zhou 8618861119906Jane zhang

Inquire Now Next

Product Details

Product Features：
● The double tube clip holds, the accuracy of the holding body is 0.005mm, and the repeated accuracy of the workpiece is ≤0.03mm.
● The maximum use pressure is 20kg/cm², and the maximum speed is 2000rpm/min.
● The assembly of the clip can be installed according to the requirements of the design level, ≤45 °, 90 °,
● The piston area: 147cm² piston movement to the left, the workpiece is clamped, the piston itinerary: 6mm
● Synchronous wheel: 80-8m-25-bs
● "0" concentric bases ensure concentricity. Let the knife design easily solve the short -term workshot into the knife.
● Compound waterproof mechanism design ensures waterproof performance

Product Application：
● Two -ends of spinning special planes, heart shafts, shaft sleeve pipe processing; widely used in manufacturing industries involving shaft applications such as automobiles, mechanical and electrical categories.
● 180mm long -holding workpiece is processed with two -sided workpiece. You can support automatic feeding

Product Size

None

Product Parameters

Product Model	Product Parameters
	A	B	C	D	E	F	G	H	I	J	K	L	S	R	N	M (Clamping length)	Extension sleeve Clamping length	Maximum through hole	Adapter cartridge clip
JHP-72(158)	155	280	250	116	27.5	182.5	17	222	280	100	320	140	178.5	13	8.5	158	325	72	NGT-105T
JHP-72(198)	155	280	250	156	27.5	240.8	17	222	280	150	320	190	228.5	13	8.5	198	375	72	NGT-105T
JHP-72(238)	155	280	250	196	27.5	280.8	17	222	280	180	320	220	258.5	3	8.5	238	415	72	NGT-105T
JHP-72(288)	155	280	250	246	27.5	280.8	17	222	280	220	320	267	305.5	0	8.5	288	465	72	NGT-105T
