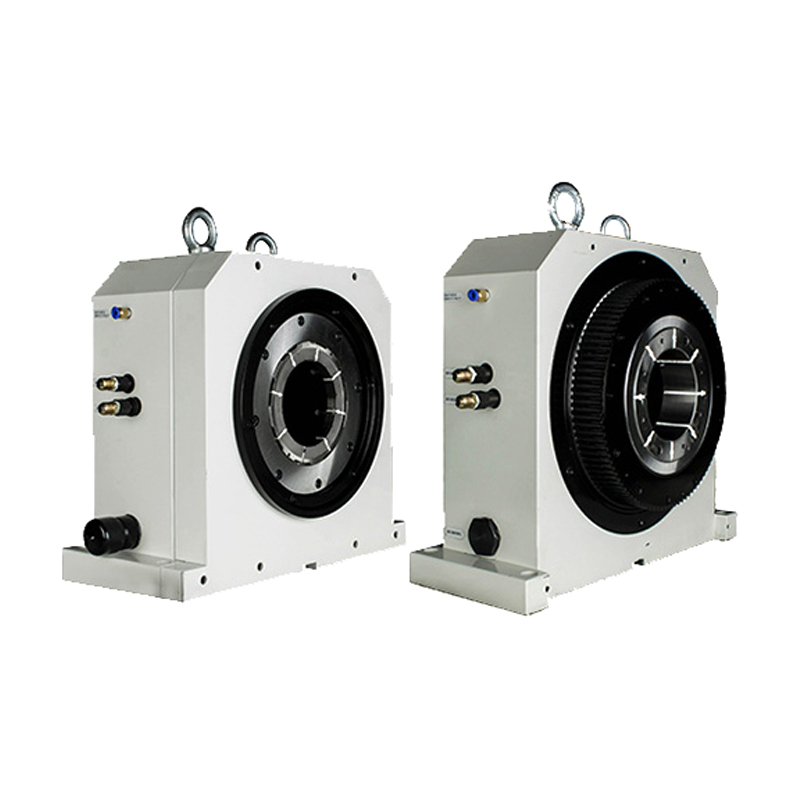

JHP-120 Standard Double Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp (Extension sleeve can be added)

Product Features：
● The double tube clip holds, the accuracy of the holding body is 0.005mm, and the repeated accuracy of the workpiece is ≤0.03mm.
● The maximum use pressure is 20kg/cm², and the maximum speed is 1500rpm/min.
● The assembly of the clip can be installed according to the requirements of the design level, ≤45 °, 90 °,
● The piston area: 156cm² piston movement to the left, the workpiece is clamped, the piston itinerary: 6mm
● Synchronous wheel: 100-8m-35-bs
● "0" concentric bases ensure concentricity. Let the knife design easily solve the short -term workshot into the knife.
● Compound waterproof mechanism design ensures waterproof performance

Product Application：
● Two ends, scalloped special aircraft, heart shaft, shaft sleeve, motor case, stator processing. It is widely used in manufacturing industries such as automotive, electromechanical and other categories. Special tools for shaft pipe processing.
● 210mm Wagmine with double -headed workpieces in a long and above -length processing. It can support automatic feeding.
