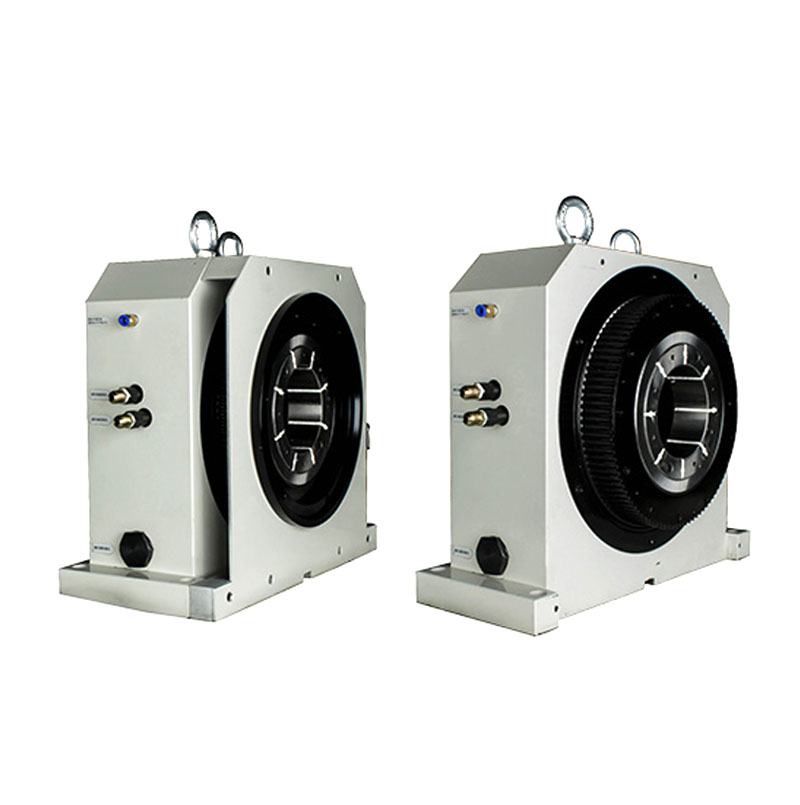

JHP-95 (Retraction type) double-tube clamp type bidirectional spindle clamp. Double-head lathe spindle clamp

Product Features：
● The double tube clip holds, the accuracy of the holding body is 0.005mm, and the repeated accuracy of the workpiece is ≤0.03mm.
● The maximum use pressure is 20kg/cm², and the maximum speed is 1800rpm/min.
● The assembly of the clip can be installed according to the requirements of the design level, ≤45 °, 90 °,
● The piston area: 153cm² piston movement to the left, the workpiece is clamped, the piston itinerary: 6mm
● Synchronous wheel: 90-8m-30-bs
● "0" together to ensure the concentricity. Let the knife design easily solve the short -term workers into the knife.
● Compound waterproof mechanism design ensures waterproof performance

Product Application：
● Two -ends of the processing of screwing special planes, cardiac shafts, shaft sleeve pipe processing. It is widely used in manufacturing industries involving shaft applications such as automotive, electromechanical, etc..
● Short -sided processing of double -sided handover with double -headed double -headed double -headed in 180mm. You can support automatic feeding
