Home > Products > Turret

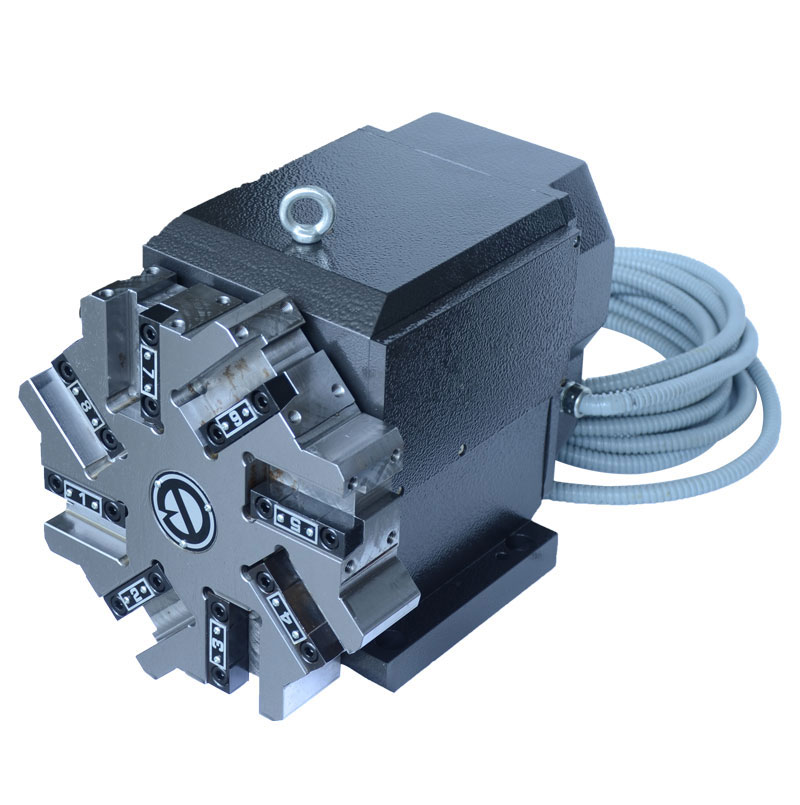

XWD Series

Inquire Now Next

Product Details

Unidirectional choose tool, Non-Contact transmitter, gear teeth Precise positioning, good lean weight and by big diameter screw threads-camping. Well-sealed motor and with the cutters disc spraying. It suites

for all kinds of lathes whose grades is higher than C6132.Authenticated

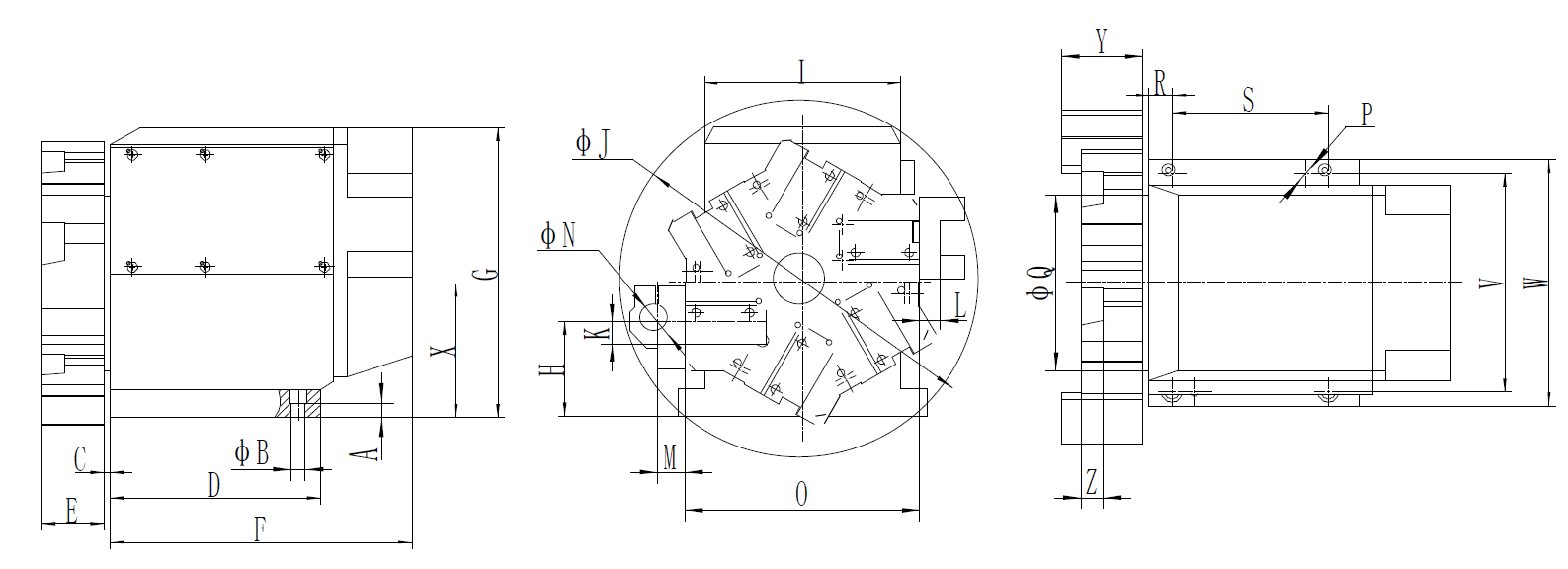

Product Size

Product Parameters

Model			Dimension
Model			H		A	B		C		D	E		F	G			I		J		K		L		M				N		O		P			Q	R		S	U			V		W		X		Y		Z
XWD120-6			85		15	13		6		188	55		270	260			176		332		25		17		25				25		210		8			155	20		140	100			196		222		120		73		20
XWD130-6			136		18	13		30		192	70		262	278			210		383		32		21		25				32		264		8			238	14		164	105			234		260		130		73		32
N: is the maximum self-boring diameter; please consult separately for the dimensions of 8-station, rear-mounted and non-standard cutterheads.
MAIN SPECIFICATIONS
Model					Adjacent tool changing time(s)								Farthest tool changing time(s)										The max bias torque(Nm)						Repeatability accuracy（ mm ）								Indexding accuracy			Motor power (w)					Motor speed (r/min)				Net weight (kg)
					6 positions					8 positions			6 positions					8 positions
XWD120-6					2					1.8			4					4. 1					30						＜0.005								±7''			120					1400				45
XWD130-6					2					1.8			4					4. 1					50						＜0.005								±7''			120					1400				80
