TLDB Series

Inquire Now Next

Product Details

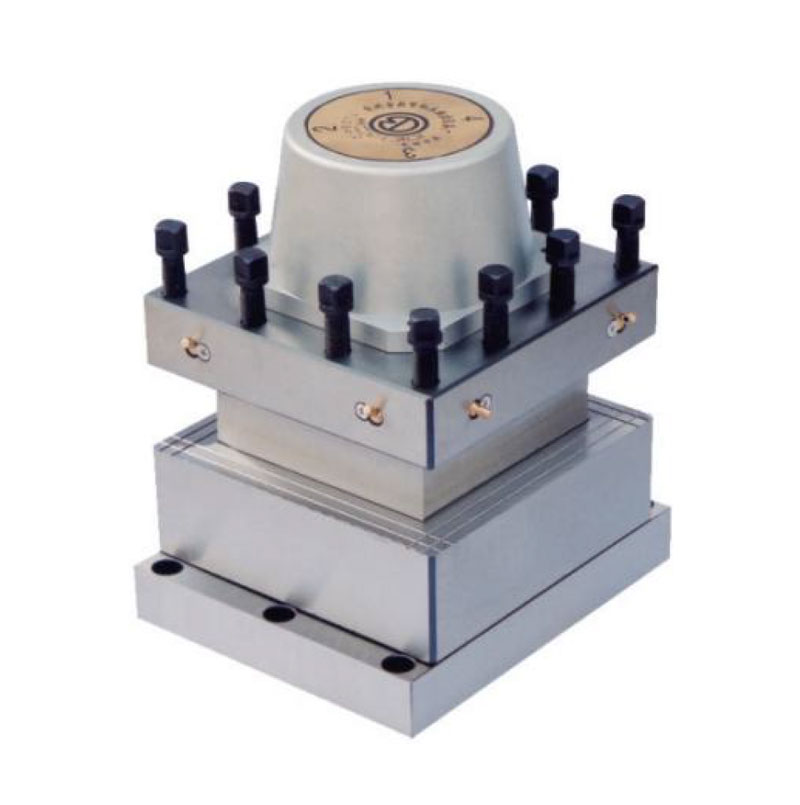

Three gear-teeth location built-in motors, good appearance ，camlock-type and tool changing fast. It suites for all kinds of lathes whose grades is higher than C6132.

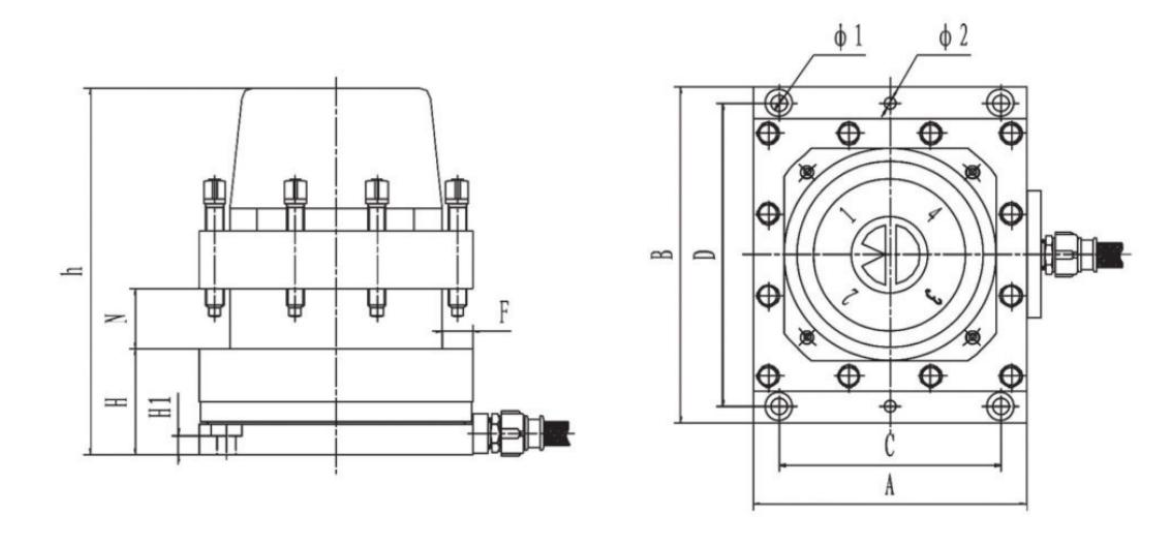

Product Size

Product Parameters

Model									Dimension
									H			H1			h			A				B				C					D				F		N			Φ1				Φ2
TLDB4-70/ 180									70			9			242			180				222				146					200				20		40			11				Φ8 Taper pin hole
TLDB4-81/200									81			12			248			200				245				168					220				25		52			13				Φ10 Taper pin hole
TLDB4- 120/240									120			27			342			240				286				200					262				32		60			13				Ф13 Mounting holes
MAIN SPECIFICATIONS
Model						Changing tool time							Max allowable torque													Repeatability accuracy (mm)										Motor power (w)				Motor speed (r/min)							Net weight (kg)
						90°							Mq					Ms/Mx
TLDB4-70/ 180						1.6							1100					500								﹤0.005										90				1400							29
TLDB4-81/200						1.6							1400					600								﹤0.005										120				900							41
TLDB4- 120/240						2.5							3000					1100								﹤0.005										250				900							125
