WD Series

Inquire Now Next

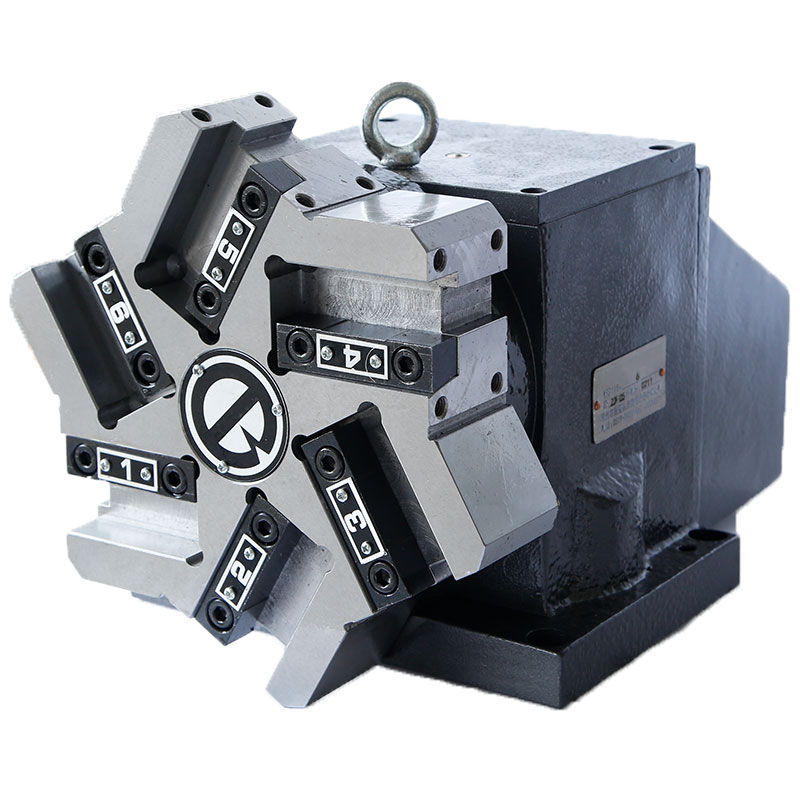

Product Details

Unidirectional choose tool, Non-Contact transmitter ， gear-teeth Precise positioning, camlock-type ，compact-contruct and reliable.It suites for all kinds of lathes whose grades is lower than C6140

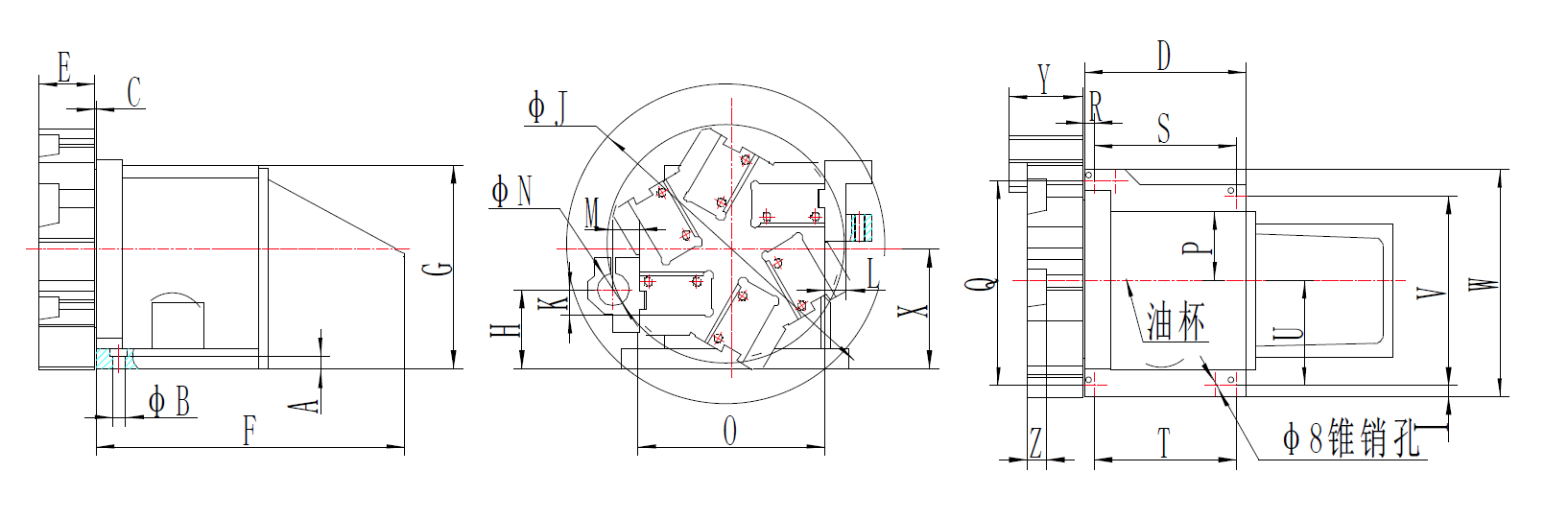

Product Size

Product Parameters

Model					Dimension
					H	A		B		C	D		E	F		G		I		J		K	L		M		N			O		P		Q		R	S		T	U			V		W		X	Y		Z
WD100*-6					59	10		11		3	133		37	279		172		10		251		16	21		15		20			130		45		144		38	80		106	89			144		164		100	45		16
WD118-6					78	15		11		3	160		55	305		200		13		323		25	17		25		25			184		67		200		10	140		140	103			185		224		118	73		20
*: This type only has 6 stations
N: is the maximum self-boring diameter; please consult separately for the dimensions of 8-station, rear-mounted and non-standard cutterheads.
MAIN SPECIFICATIONS
Model					changing time(s)								Max.allowable torque(Nm)										The max bias torque(Nm)							Repeatability accuracy （ mm ）						Indexding accuracy				Motor power (w)					Motor speed (r/min)				Net weight (kg)
					60°			120°			300°		axial					tangential
WD100-6					1.5			2			3.5		600					600					8							＜0.005						±7''				60					1400				25
WD118-6					1.5			2			3.5		1200					1200					10							＜0.005						±7''				120					1400				40
