BWD Series

Inquire Now Next

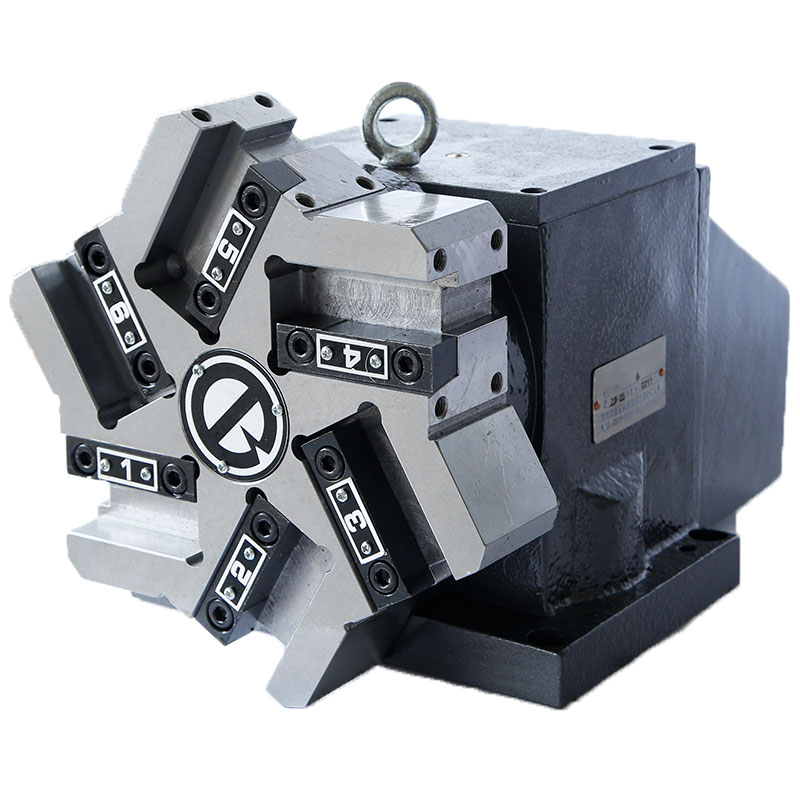

Product Details

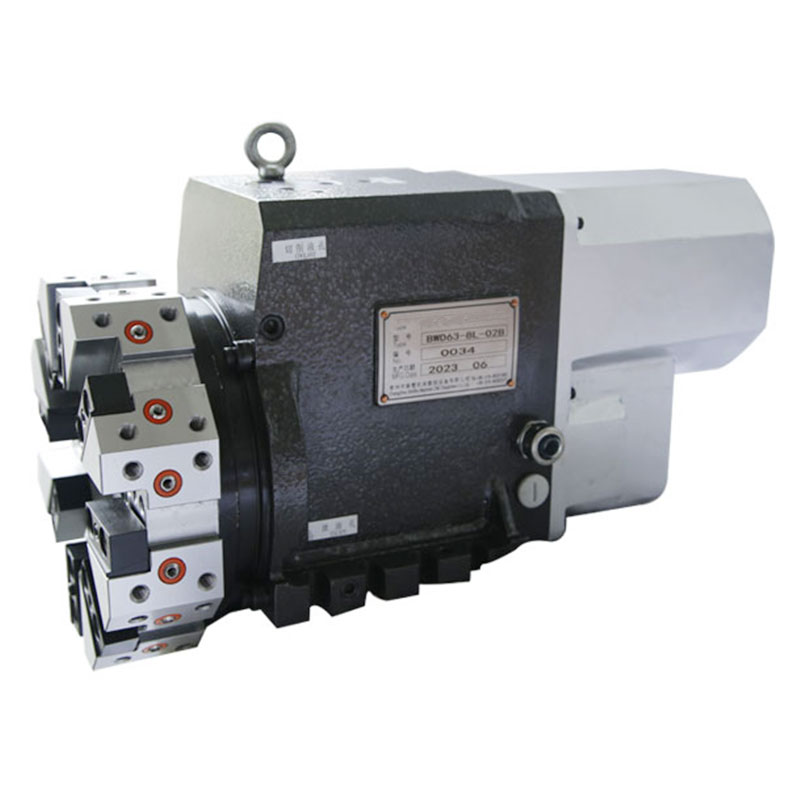

BwSll is our company's new turret catering for the demand of customer. The central height meet international standards

Utilizing cycloid reduction, camlock-type, three gear-teeth location and change tool without lifting the disc.

It owns the compact structure, good appearance

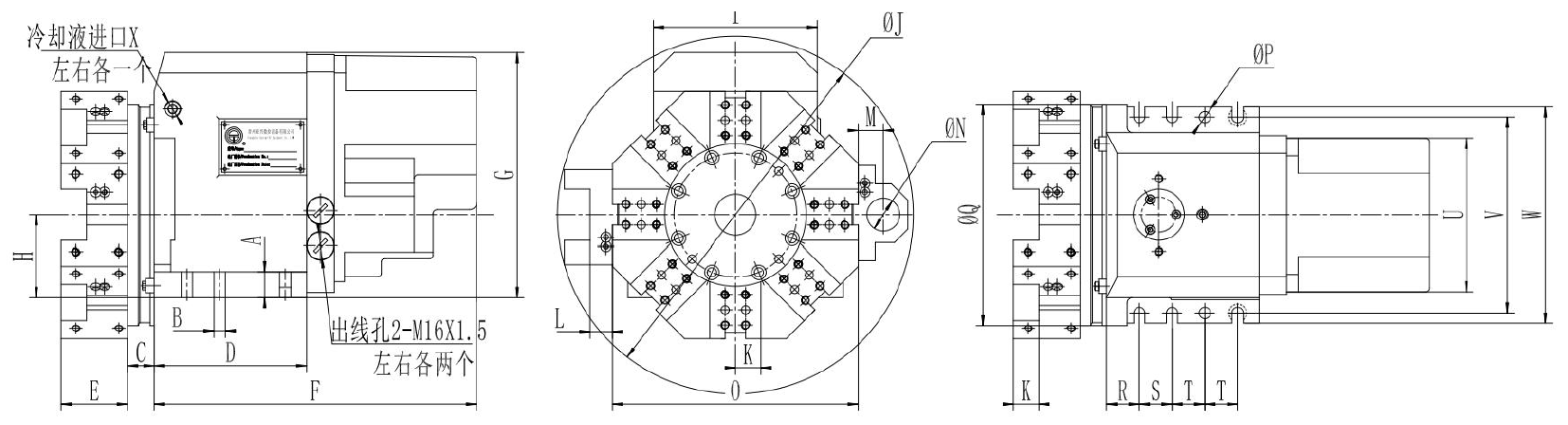

Product Size

Product Parameters

Model				Dimension
				H		A	B			C	D		E	F		G		I			J	K		L		M			N	0			P		Q		R	S	T	U			V			W			X
BWD63-8				63		20	8- 11			26	145		55	323		205		140			272	20		17		20			20	190			/		175		24	30	30	134			165			185			G1/4"
BWD80-8				80		25	6- 11			26	149		65	314		238		160			376	25		22		25			32	270			11		215		32	32	32	149			190			210			G3/8"
BWD100-8				100		32	8- 13			32	172		80	350		280		205			456	25		22		30			40	330			/		252		34	40	30	188			220			250			G3/8"
Main specifications
Item														Parameter								Item																							Parameter
Center Height											mm			63/80/ 100								Max bias torque																		Nm					10/ 12/25
Allowed number of tools											position			6；8								Accuracy of repeatability																		mm					＜0.005
Ratation time											sec.			1.8/ 1.8/2. 1								Indexing Accuracy																							±7″
Ratation time											sec.			2.9/2.9/3.2								Motor spower																		w					90/ 140/ 140
Max tangential torque											KNm			0.7/ 1.5/3.0								Motor speed																		r/min					900/ 1400/ 1400
Max axial torque											KNm			0.8/ 1.6/3.5								Net weight(without tool disc)																		Kg					35/50/80
