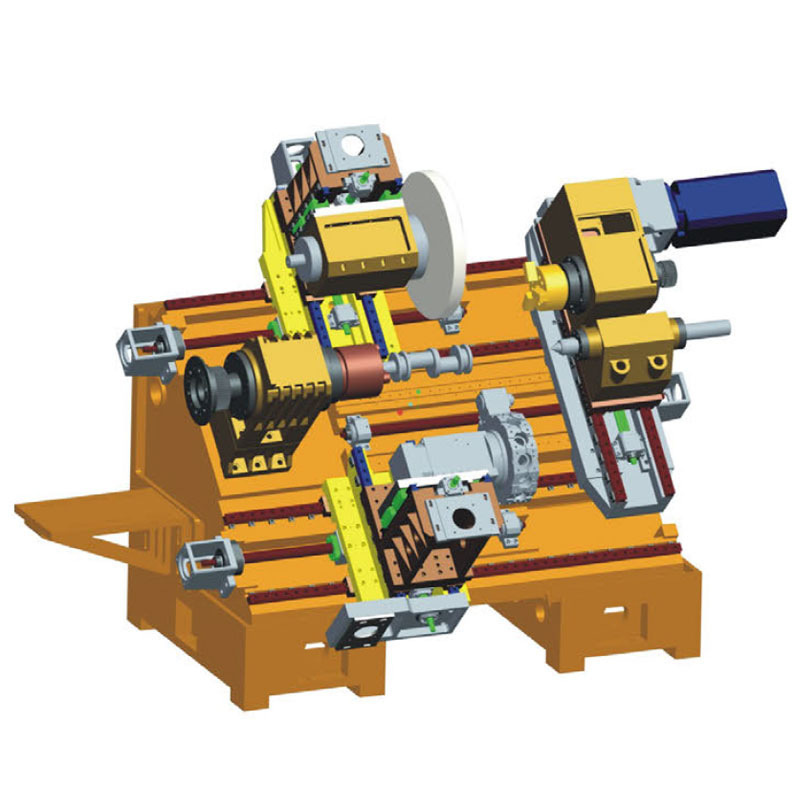

45° Turning and Grinding Centre (Double Spindle Single Turret Double Y-axis Single Grinding Head) GP-500STRYM

Inquire Now Next

Product Size

l t em

size

GP-500STRYM

Working range

Max.Turning diameter over bed

φ680

Max.Turning swing dia.over carriage

φ380

Max.Turing diameter

φ250(When the X-axis, Y-axis and the headstock are protected as a whole.)

Max.length between chuck and tailstock cente

679

Max.Length between both Chucks

665

Max.Turning &Grinding length

500

Max.X/Z axis t

X1/X3/X5 axis

230/160/350

Y1/Y3 axis

120/120

Z1/Z3 axis

680/680

Max.Talstocktravel

680

Feed screw

Control axis

11Axis(X1+X3+X5+Y1+Y3+Z1+Z3+Z5+C1+C2+C3)

X1/X3axis ball-screw

3210-C3

(N·m)Recommend theX1/X3axis motor torque

>10

X5 axis ball-screw

4010-C3

(N·m)Recommend the X5 axis motor torque

>15

Y1/Y3 Ball Screws

3208-C3

Recommended torque for Y1/Y3 axis motors(N·m)

>10

Tailstock ball-screw

4010-C3

(N·m)Recommend talstock motor torque

>15

BED

Bed slant angle

45° Integral cast bed

Linear guide's span

400

Spindle

(pm)Max.spindle speed

main 4500,back450

Spindle through-hole diameter

main:φ61,back:φ56

Spindle nose size

main:A2-6,back:A2-5

(KW)Recommend the spindle motor power

main:7.5,back:5.5

Hydraulic chuck or collet chuck

main:8 inch,back.6 inch

Hydraulic Tailstock

Diameter of Tailstock center sleeve

φ60

Max.stroke of Tallstock center sleeve

200

Taper of Tallstock center sleeve

MT4

Product Parameters
