JAT-P Tool Grinder Spindle Clamp Mount

Product Features:

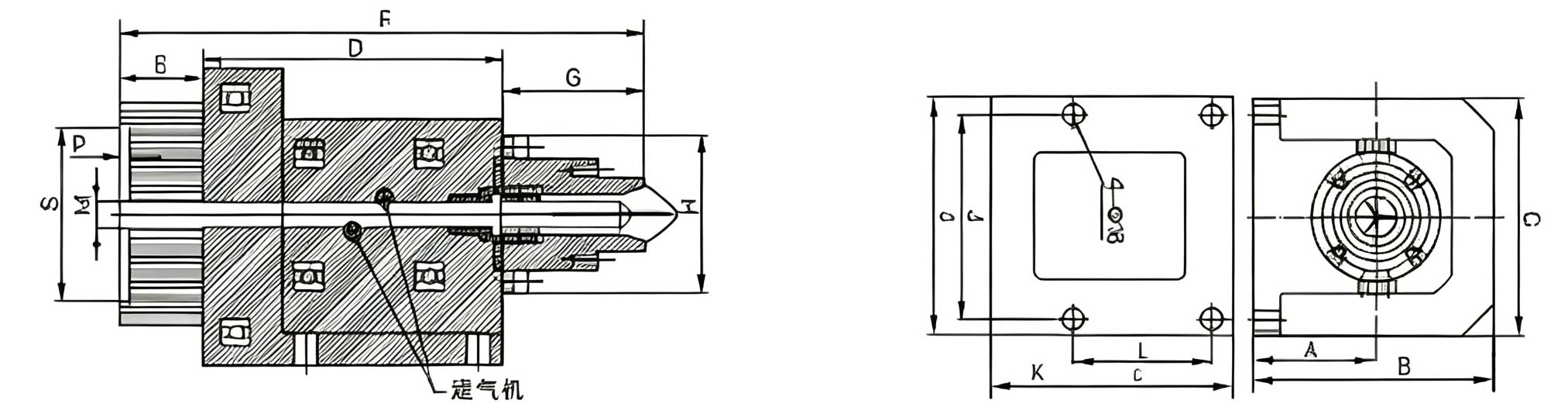

1.Adopts Schoberlin high-precision spring collet design. See drawing for chuck base assembly; horizontal mounting at ≤45° or 90° can be customized as required.

2.Single collet clamping structure. Base body precision: 0.005 mm; workpiece repeat clamping accuracy ≤ 0.005 mm.

3.Max operating pressure: 6 kg/cm²; maximum rotation speed ≤ 2000 rpm/min.

4.Piston area: 49 cm², backward pull clamping type; piston stroke: 3 mm, clamping stroke ±0.1 mm.

5.Composite waterproof mechanism design guarantees reliable waterproof performance. Various clamping modes can be customized according to workpieces and machining requirements.

Product Application:

Mainly used for precision tools, tool grinding industry and high-precision shaft machining.

Product Features of JAT–SW25(D–S):

1.Adopts Schoberlin high-precision spring collet design. Max operating pressure: 6 kg/cm², maximum rotation speed ≤ 1000 rpm/min.

2.Single collet clamping structure. Base body precision: 0.005 mm; workpiece repeat clamping accuracy ≤ 0.01 mm.

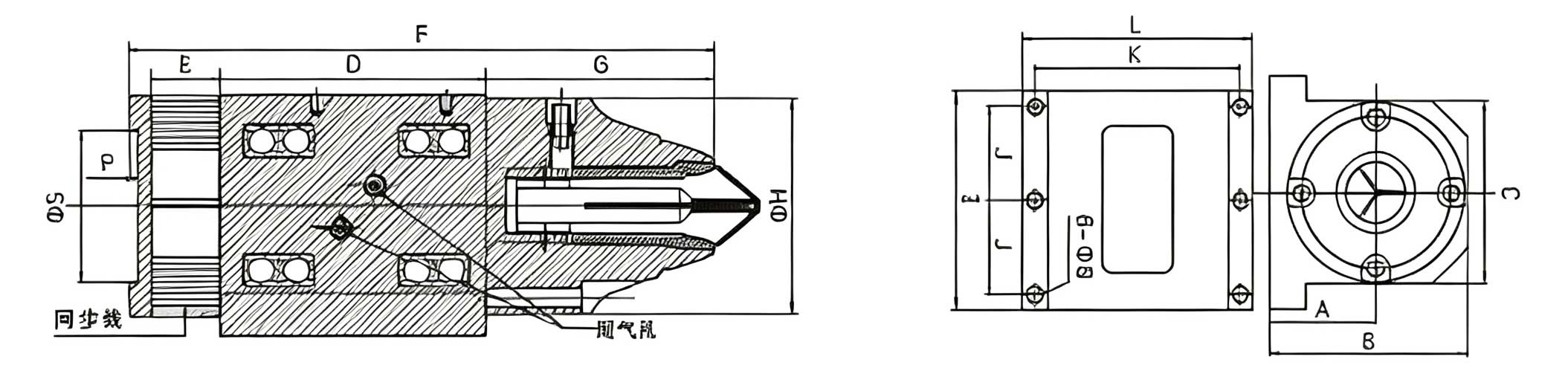

3.See drawing for chuck base assembly; horizontal mounting at ≤45° or 90° can be customized as required.

4.Piston area: 136 cm². Workpiece is clamped when piston moves inward. Piston stroke: 3 mm, clamping stroke ±0.1 mm.

5.Composite waterproof mechanism ensures reliable waterproof performance. Various clamping modes can be customized according to workpieces and machining requirements.

Product Application:

Mainly applied to precision tools, tool grinding industry and high-precision shaft machining.
