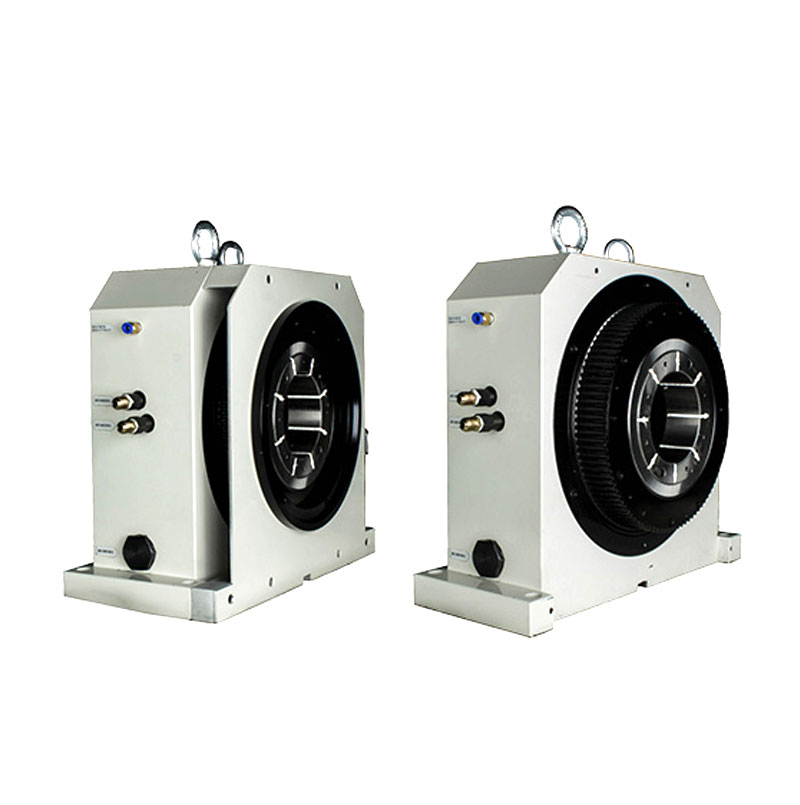

JHP-95 Standard Double Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp (Extension sleeve can be added)

Product Features:
● The double tube clip holds, the accuracy of the holding body is 0.005mm, and the repeated accuracy of the workpiece is ≤0.03mm.
● The maximum use pressure is 20kg/cm², and the maximum speed is 1800rpm/min.
● The assembly of the clip can be installed according to the requirements of the design level, ≤45 °, 90 °,
● The piston area: 153cm² piston movement to the left, the workpiece is clamped, the piston itinerary: 6mm
● Synchronous wheel: 90-8m-30-bs
● "0" together to ensure the concentricity. Let the knife design easily solve the short -term workers into the knife.
● Compound waterproof mechanism design ensures waterproof performance

Product Application：
● Two -ends of the processing of screwing special planes, cardiac shafts, shaft sleeve pipe processing. It is widely used in manufacturing industries involving shaft applications such as automotive, electromechanical, etc..
● Short -sided processing of double -sided handover with double -headed double -headed double -headed in 180mm. You can support automatic feeding

None

                                                             ■ The data of the above products is for reference only. It can be changed according to the needs of the workpiece. Various non -standard products can be taken according to the workpiece and processing needs.

                                                             ■ The product continues to improve. If there is a change in this directory parameters, please consult our company. The final confirmation parameters are subject to!

                                                             ■ CLAMPING LENGTH: Finger distance between the two ends of the clip。
