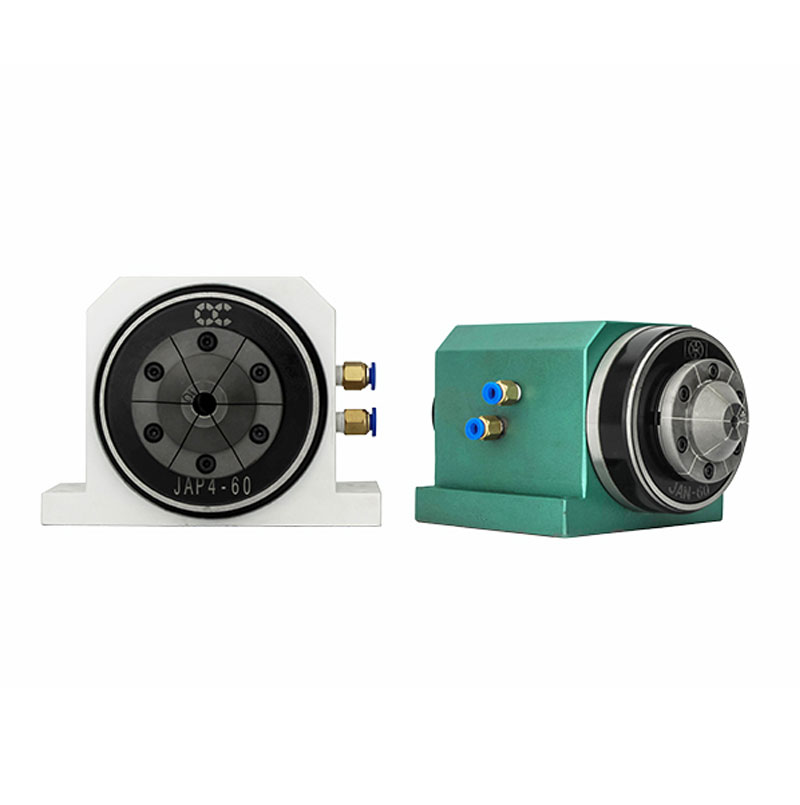

JAP (N) 4-60 Precision Diaphragm Spindle

Add.: Yaoguan, WuJin District, Changzhou, Jiangsu, China 213000
Contact Person: Joanna Zhou
Mobile/Whatsapp/Wechat: <a href="https://api.whatsapp.com/send?phone=613815018181Joanna zhou 8618861119906Jane zhang" target="_blank"> 8613815018181Joanna zhou 8618861119906Jane zhang

Inquire Now Next

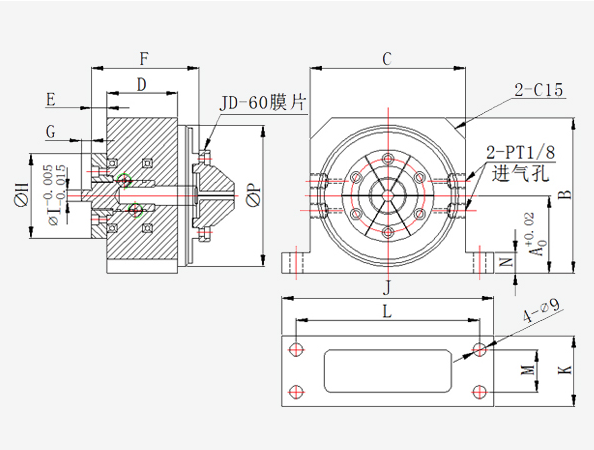

Product Size

Product Parameters

Product Model	Dimension parameters indicated by design drawings(mm)
	A	B	C	D	E	F	G	H	I	J	K	L	M	N	P
JAP4-60	55	110	110	50	11	75.9	7.5	60	8	150	50	130	30	15	100
JAP4-60	55	110	110	50	8	72.9	12	72	12	150	50	130	30
JAN-60	60	112	102	120	19	/	/	/	/	130	119	116	105

■ The above product data is for reference only, and can be changed according to the workpiece demand. Various non-standard products can be customized according to the workpiece and processing demand
■ Continuous improvement of products. Please consult our company if there is any change in the parameters of this catalog. The final confirmed parameters shall prevail
■ Clamping length: refers to the distance between two end faces of the clamping point.
