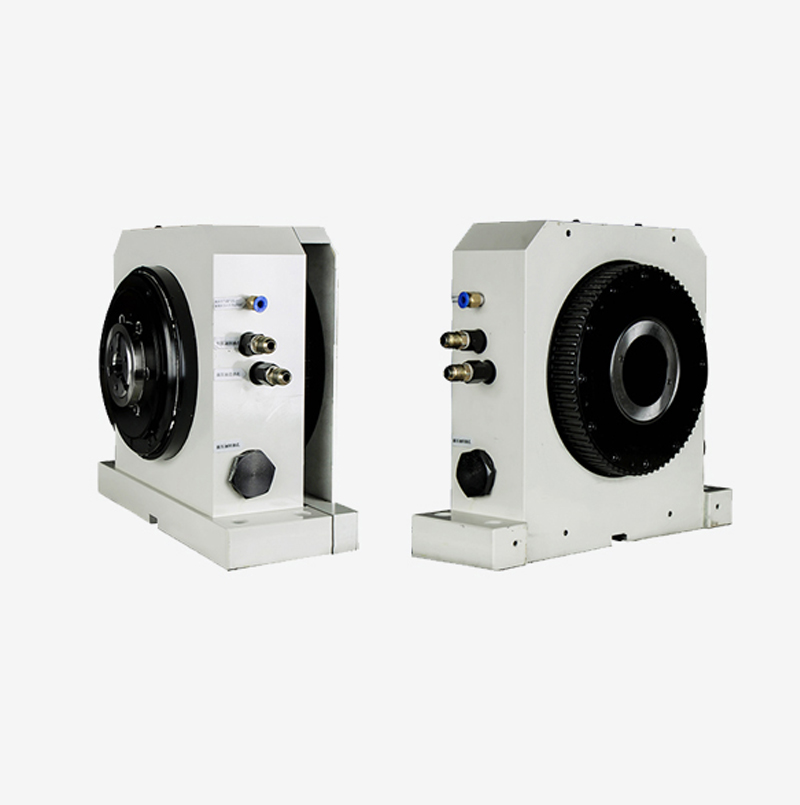

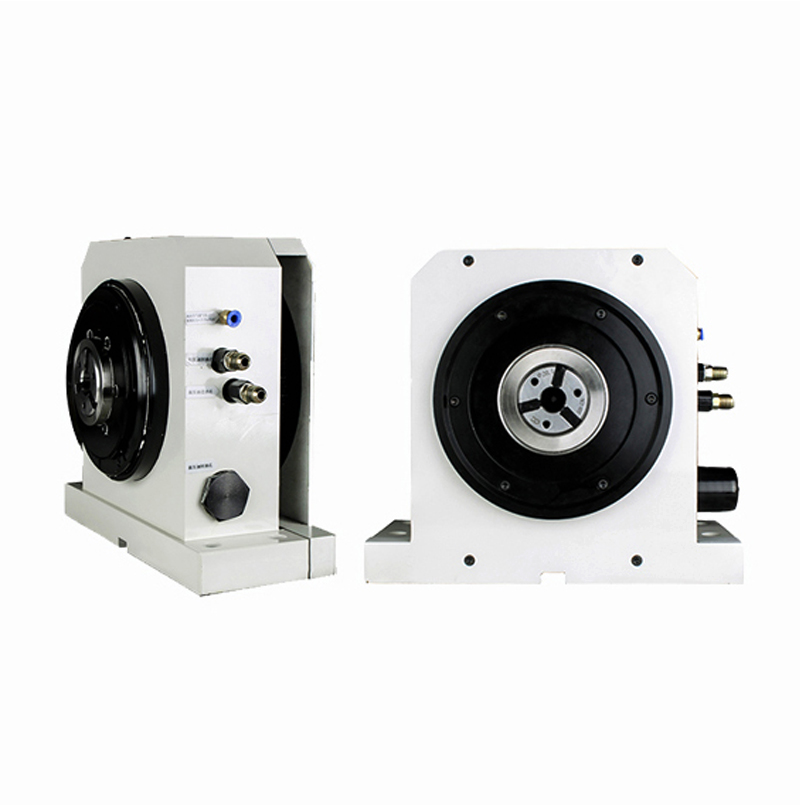

JHP-32 (D) Single Cylinder Clamp Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp

Product Features:
1、Single tube clip holding. The accuracy of the body of the holder is 0.005mm, and the repeated accuracy of the workpiece is ≤0.05mm.
2、The maximum use pressure is 20kg/cm2;, the maximum speed 3000rpm/min.
3、The preparation of the clip can be installed according to the requirements of the design level, ≤45°, and 90°.
4、Pistons area: 138cm2; Pistons move to the left, the workpiece is clamped, the piston itinerary: 4mm.
5、Synchronous wheel: 72-8m-25-bs
6、"0" concentric bases ensure concentricity. Let the knife design easily solve the short -term workshot into the knife.
7、Compound waterproof mechanism design ensures waterproof performance

Product Application:
 1、Two -ends of rotary special planes, heart shafts, shaft sleeve pipe processing. Widely used in manufacturing industries involving shaft applications such as automobiles, mechanical and electrical categories. Special tools for shaft management processing               2、 Double -sided processing of short -sided workpieces within 80mm long -sided work. You can support automatic feeding (small piston sales, etc.)                                                                                                                                                                                       3、Double main shaft clamps of workpieces with a length of more than 500mm are processed on both sides.
