JAN-60(D) Precision Diaphragm Spindle Spindle

Inquire Now Next

Product Details

Product Features:

1.Adopts pneumatic single-diaphragm chuck design. Base body precision: 0.005 mm; workpiece repeat clamping accuracy ≤ 0.005 mm.

2.Max operating pressure: 6 kg/cm²; maximum rotation speed ≤ 1000 rpm/min.

3.Multiple mounting angles can be customized as required.

4.The workpiece is clamped when the piston moves inward, clamping stroke: 0.1 mm.

Product Application:

Precision parts, turning & grinding of precision electronic components, inspection equipment and automation equipment.

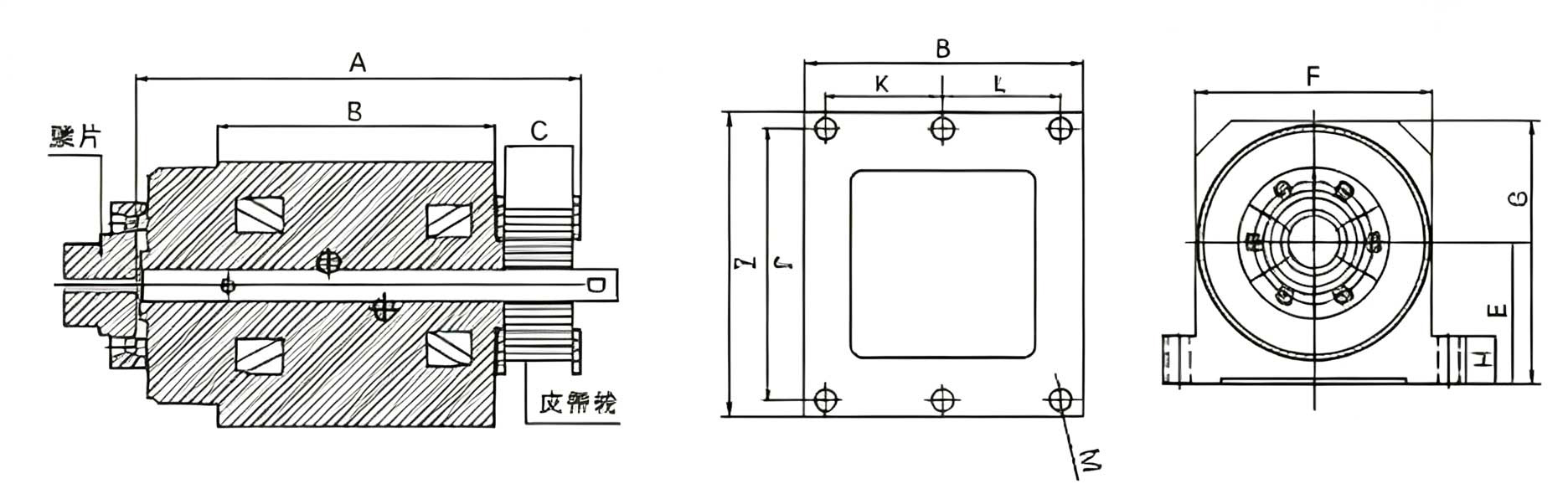

Product Size

JAN-60(D) Precision Diaphragm Spindle

Product Parameters

Model No.

JAN-60(D)

112

102

120

130

119

116

105
