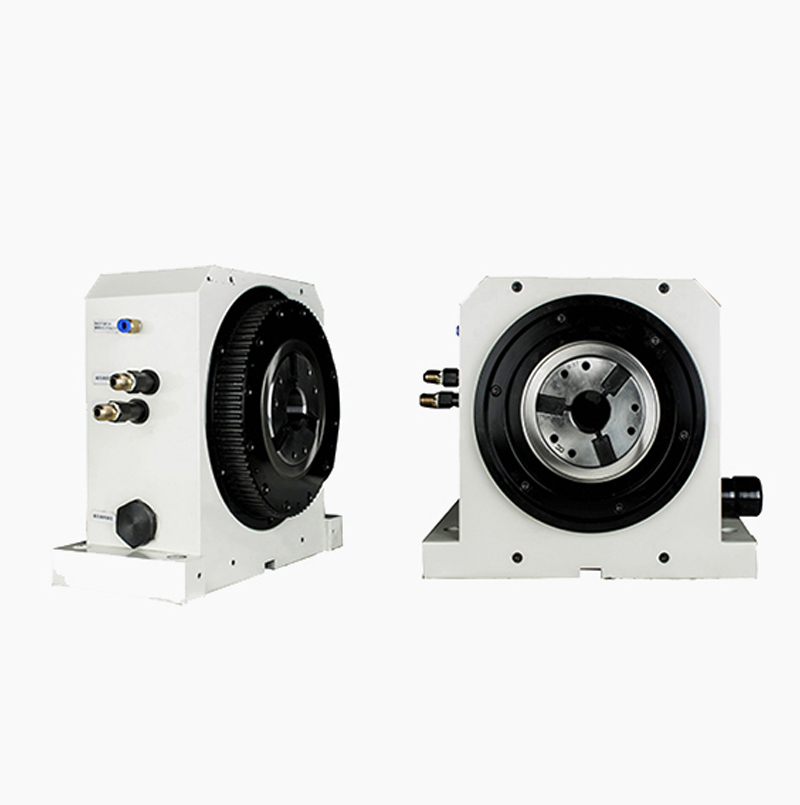

JHP-72 (retracted) bi-directional spindle holder. Double-head spindle holder

Add.: Yaoguan, WuJin District, Changzhou, Jiangsu, China 213000
Contact Person: Joanna Zhou
Mobile/Whatsapp/Wechat: <a href="https://api.whatsapp.com/send?phone=613815018181Joanna zhou 8618861119906Jane zhang" target="_blank"> 8613815018181Joanna zhou 8618861119906Jane zhang

Inquire Now Next

Product Details

Product Features:
● The double tube clip holds, the accuracy of the holding body is 0.005mm, and the repeated accuracy of the workpiece is ≤0.03mm.
● The maximum use pressure is 20kg/cm², and the maximum speed is 2000rpm/min.
● The assembly of the clip can be installed according to the requirements of the design level, ≤45 °, 90 °,
● The piston area: 147cm² piston movement to the left, the workpiece is clamped, the piston itinerary: 6mm
● Synchronous wheel: 80-8m-25-bs
● "0" concentric bases ensure concentricity. Let the knife design easily solve the short -term workshot into the knife.
● Compound waterproof mechanism design ensures waterproof performance

Product Application：
● Two -ends of spinning special planes, heart shafts, shaft sleeve pipe processing; widely used in manufacturing industries involving shaft applications such as automobiles, mechanical and electrical categories.
● 90 ～ 160mm Double -headed short -handed and double -sided processing. It can support automatic feeding

Product Size

None

Product Parameters

Product Model	Product Parameters
	A	B	C	D	E	F	G	H	I	J	K	L	S	R	N	M (Clamping length)	Maximum through hole	Adapter cartridge clip
JHP-72（90）	155	280	250	116	27.5	182.5	17	222	280	100	320	140	178.5	13	76.5	90	72	NGT-105T
JHP-72（100）	155	280	250	116	27.5	182.5	17	222	280	100	320	140	178.5	13	66.5	100	72	NGT-105T
JHP-72（110）	155	280	250	116	27.5	182.5	17	222	280	100	320	140	178.5	13	56.5	110	72	NGT-105T
JHP-72（120）	155	280	250	116	27.5	182.5	17	222	280	100	320	140	178.5	13	46.5	120	72	NGT-105T
JHP-72（130）	155	280	250	116	27.5	182.5	17	222	280	100	320	140	178.5	13	36.5	130	72	NGT-105T
JHP-72（140）	155	280	250	116	27.5	182.5	17	222	280	100	320	140	178.5	13	26.5	140	72	NGT-105T
JHP-72（150）	155	280	250	116	27.5	182.5	17	222	280	100	320	140	178.5	13	16.5	150	72	NGT-105T
JHP-72（160）	155	280	250	116	27.5	182.5	17	222	280	100	320	140	178.5	13	6.5	160	72	NGT-105T
