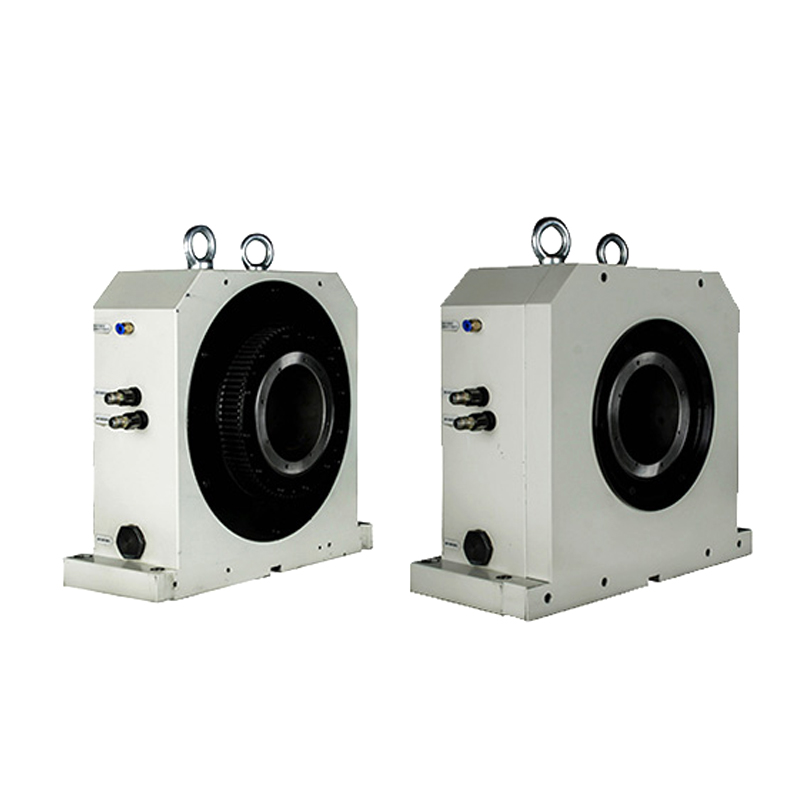

JHP-120 (retracted) double-barrel clamp bi-directional spindle holder.Double-head spindle holder

Inquire Now Next

Product Details

Product Features:
● The double tube clip holds, the accuracy of the holding body is 0.005mm, and the repeated accuracy of the workpiece is ≤0.03mm.
● The maximum use pressure is 20kg/cm², and the maximum speed is 1500rpm/min.
● The assembly of the clip can be installed according to the requirements of the design level, ≤45 °, 90 °,
● The piston area: 156cm² piston movement to the left, the workpiece is clamped, the piston itinerary: 12mm
● Synchronous wheel: 100-8m-35-bs
● "0" concentric bases ensure concentricity. Let the knife design easily solve the short -term workshot into the knife.
● Compound waterproof mechanism design ensures waterproof performance

Product Application：
● Two ends, scalloped special planes, heart shafts, shaft sleeves, motor cases, stator processing. Widely used in manufacturing industries involving shaft applications such as automobiles, electromechanicals
● 100 ～ 180mm Double -headed short -handed and double -sided processing. It can support automatic feeding

Product Size

None

Product Parameters

Product Model	Product Parameters
	A	B	C	D	E	F	G	H	I	J	K	L	N	P	S	R	M (Clamping length)	Maximum through hole	Adapter cartridge clip
JHP-120（100）	200	370	350	138	37.5	209	11	285	380	120	420	150	18	76	210	12	100	120	NGT-145T
JHP-120（110）	200	370	350	138	37.5	209	11	285	380	120	420	150	8	76	210	12	110	120	NGT-145T
JHP-120（120）	200	370	350	138	37.5	209	11	285	380	120	420	150	0	75	210	12	120	120	NGT-145T
JHP-120（130）	200	370	350	138	37.5	209	11	285	380	120	420	150	0	65	210	12	130	120	NGT-145T
JHP-120（140）	200	370	350	138	37.5	209	11	285	380	120	420	150	0	55	210	12	140	120	NGT-145T
JHP-120（150）	200	370	350	138	37.5	209	11	285	380	120	420	150	0	45	210	12	150	120	NGT-145T
JHP-120（160）	200	370	350	138	37.5	209	11	285	380	120	420	150	0	35	210	12	160	120	NGT-145T
JHP-120（170）	200	370	350	138	37.5	209	11	285	380	120	420	150	0	25	210	12	170	120	NGT-145T
JHP-120（180）	200	370	350	138	37.5	209	11	285	380	120	420	150	0	15	210	12	180	120	NGT-145T
JHP-120（190）	200	370	350	138	37.5	209	11	285	380	120	420	150	0	5	210	12	180	120	NGT-145T
