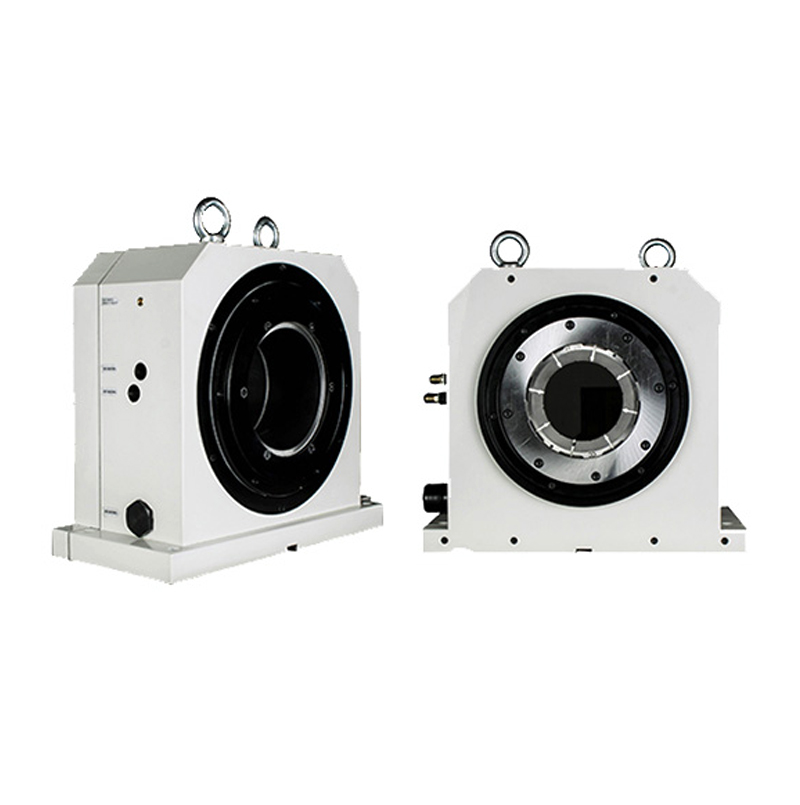

JHP-120 (D) single-tube clamp type bidirectional spindle clamp. Double-head lathe spindle clamp

Product Features：
● The accuracy of the single tube clip holding.
● The maximum use pressure is 20kg/cm², and the maximum speed is 1500rpm/min.
● The assembly of the clip can be installed according to the requirements of the design level, ≤45 °, 90 °,
● The piston area: 156cm² piston movement to the left, the workpiece is clamped, the piston itinerary: 6mm
● Synchronous wheel: 100-8m-35-bs
● "0" concentric bases ensure concentricity. Let the knife design easily solve the short -term workshot into the knife.
● Compound waterproof mechanism design ensures waterproof performance

Product Application：
● Two -ends of spinning special planes, heart shafts, shaft sleeve pipe processing; widely used in manufacturing industries involving shaft applications such as automobiles, mechanical and electrical categories.
● Double -sided processing of short -sided workpieces within 95mm long -sided processing. You can support automatic feeding (axis cover sales, etc.)
● Double main shaft clamps of workpieces with a length of more than 600mm are processed on both sides.
