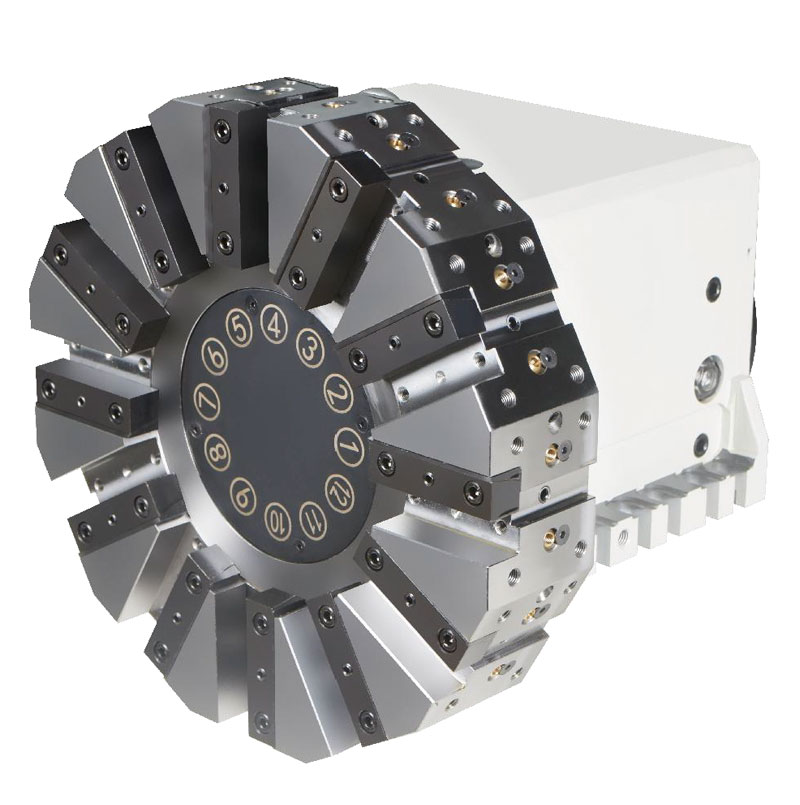

ST Series Servo Turret

Inquire Now Next

Product Details

Large span box mounting dimensions;

2. locking gear plate cylinder structure, smoother locking action;

3. Gear set reduction mechanism, strong rigidity of the transmission system

4. Can be customized 30bar. 50bar. 70bar high pressure cooling

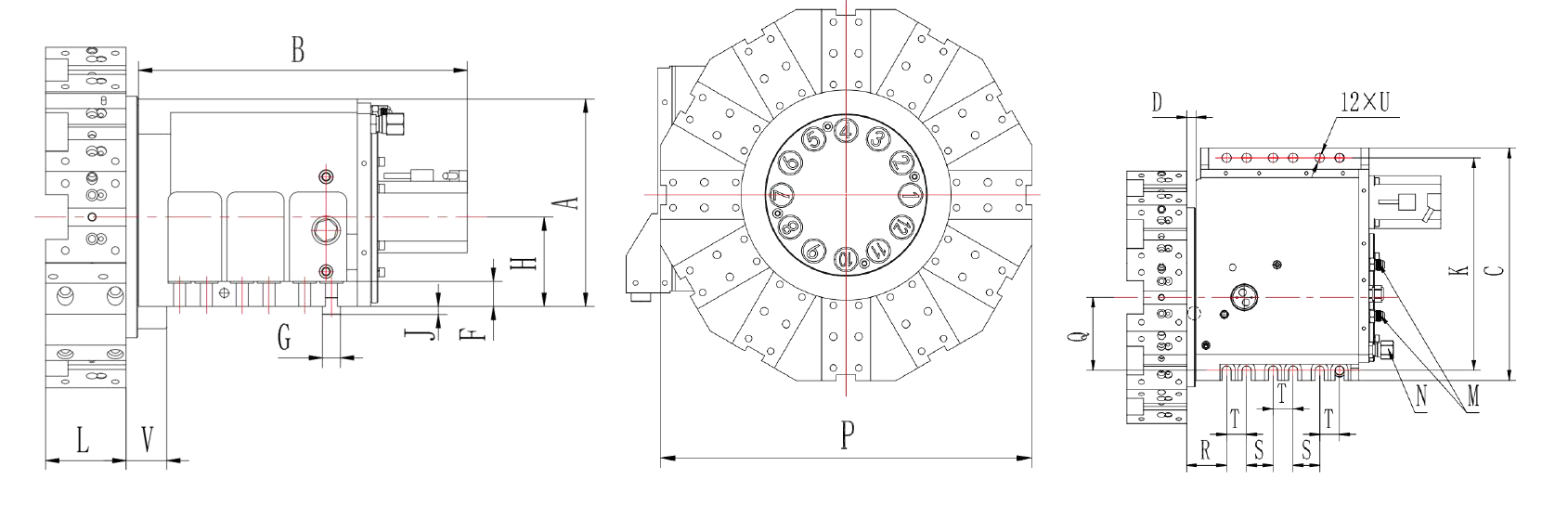

Product Size

Product Parameters

Model			Dimension
			H			A			B		C		D		F			G			J		K			L				M				N			Q		R			S			T			U		V
ST80			80			225			350		312		14		25			Φ17			7.5		290			80/90				PT1/4				PT1/4			95		70			35			35			11		45
ST100			100			232			368		350		14		28			Φ20			9		320			90				PT3/8				PT3/8			110		60			40			30			13		45
MAIN SPECIFICATIONS
Item																											Model
																											ST80												ST100
Center Height																			mm								80												100
Allowed number of tools																											8；12												8；12
Time for 45° ratation and clamping																			Sec.								1.1												1.4
Time for 180° ratation and clamping																			Sec.								1.4												1.9
Clamping force																			kgf								2800												3200
Hydraulic working pressure																			Mpa								3.5±0.5												3.5±0.5
Flow rate																			L/min								22												25
Indexing Accuracy																											±4″												±4″
Accuracy of repeatability																											±1.6 ″												±1.6 ″
Net weight(without tool disc)																			kg								68												88
