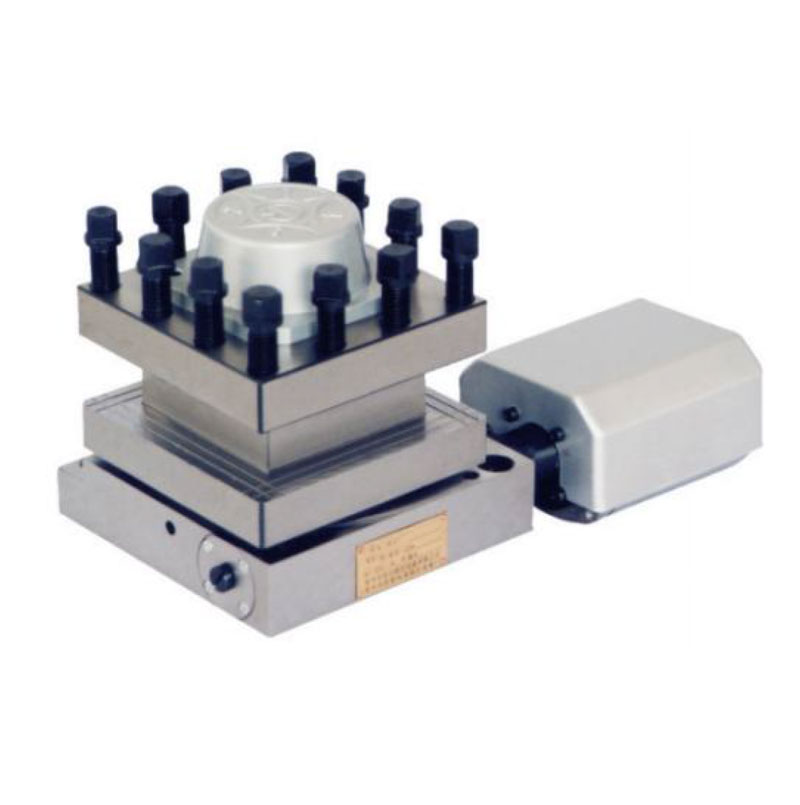

LD Series

Inquire Now Next

Product Details

Non-Contact transmitter, double-teeth Precise Positioning, lifting screw threads-camping, it possesses reliability, good rigidity and long life and suited for all kinds of lathes whose grades is higher than CO625.

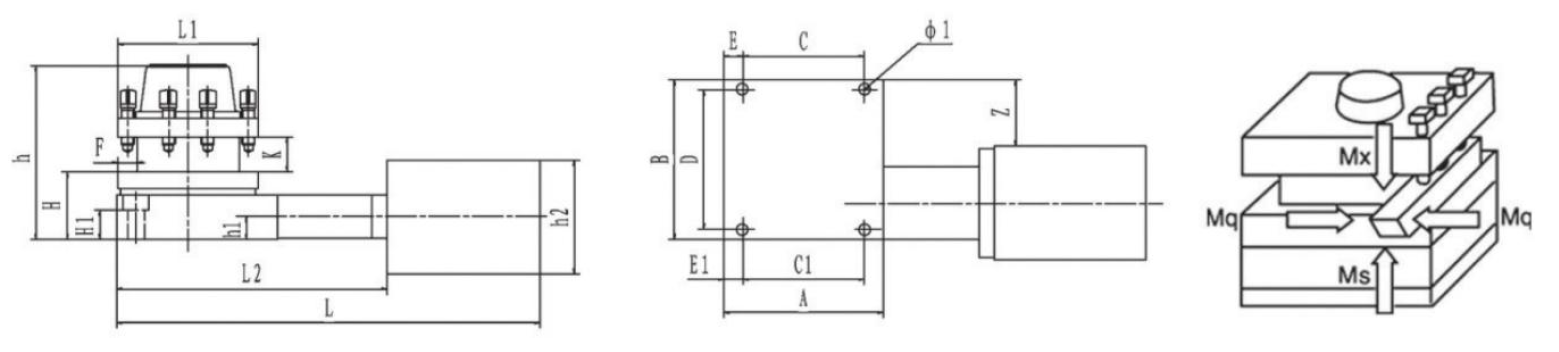

Product Size

Product Parameters

Model						Dimension
						H			H1		A		B		C			C1			D		E			E1			L			L1			L2		h		h1		h2				F	Φ1			Z		K
LD4-54A/ 110						54			27		126		126		96			96			110		15			15			358			110			213		136		18		90				15	9			44		27
LD4-70/ 152						70			30		161		171		126			126			146		12			12			360			152			220		185		21		90				25	13			56		40
LD4-81/ 162						81			34		192		192		152			152			168		20			20			391			162			251		206		23		90				25	13			84		40
LD4- 120/200						120			39		200		200		150			130			177		25			35			444			200			292		260		27		98				32	13			89		50
MAIN SPECIFICATIONS
Model							Changing tool time(s)												Max allowable torque （ Nm)														Repeatability accuracy (mm)							Motor power (w)					Motor speed (r/min)				Net weight (kg)
							90°				180°			270°					Mq				Ms					Mx
LD4-54A/ 110							1.9				2.4			3					300				250					700					＜0.005							90					1400				16
LD4-70/ 152							2.2				2.7			3.3					500				350					1100					＜0.005							120					1400				25
LD4-81/ 162							2.2				2.7			3.3					600				450					1400					＜0.005							120					1400				32
LD4- 120/200							2.7				3.4			4. 1					700				600					1800					＜0.005							180					1400				60
