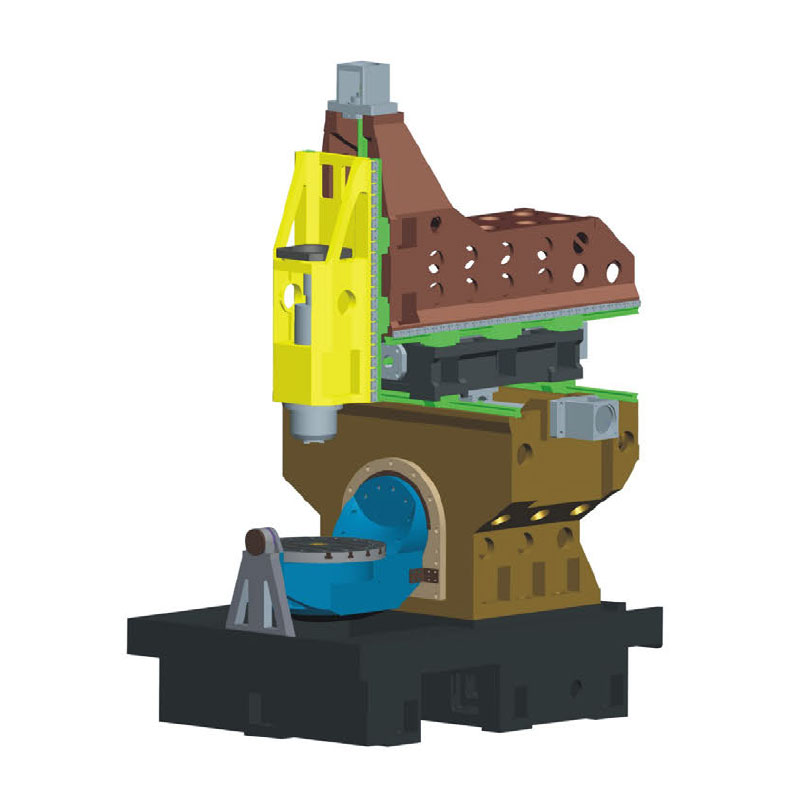

5-Axis Machining Centre GP-U6

Inquire Now Next

Product Size

ItemSizeGP-U6
Talbe  Table Sizeφ450
  Spacing of T-slots5-14x80
  B Axis tilting range+110°~-20°
  CAxis rotating range360°
  Max.table rapid feedrate25rpm
  Max.table load100kg
Travel  Max.Xaxis travel600
  Max.Y axis travel450
  Max.Z axis trave400
  Range of spindle nose to worktable00-500
Spindle  TaperBT40
    Max.spindle speed12000rpm
  Spindle drivendirect-drive
  Recommend the spindle motor power3.7Kw
aed scie  Three axis traverse speed48/48/48m/min
  Ball screw spec3216-C3
  Recommend the motor torque>12N.m
  ATC(option)  TypeDisc cutter magazine
  Number of mountable tool24
