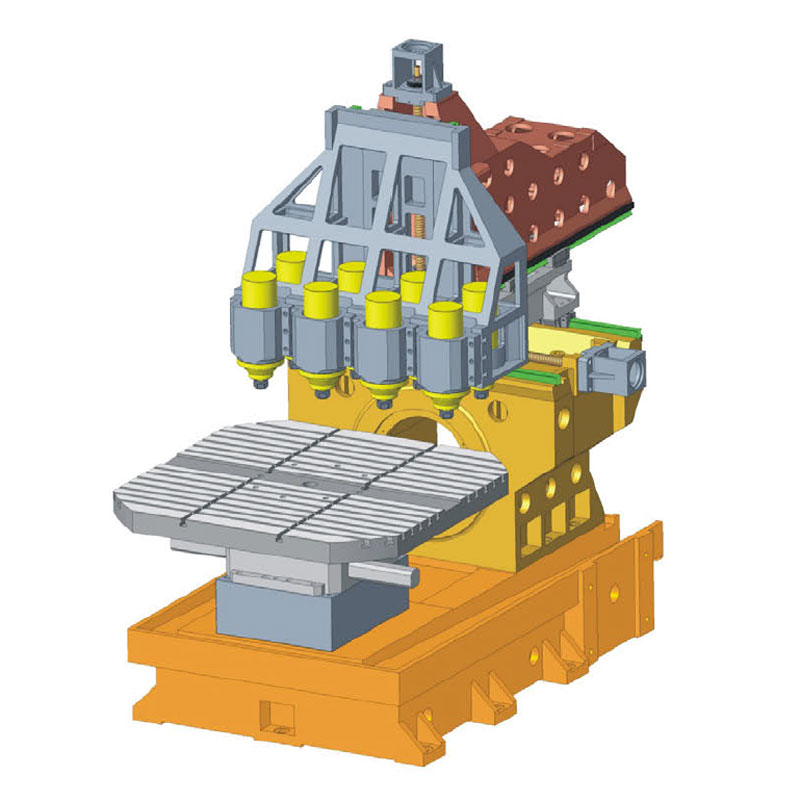

Eight Spindle Double Table Machining Centre GP-S8T

Inquire Now Next

Product Size

ltem

Size

GP-S8T

Talbe

Table Size

1150×1150

Spacing of T-slots

2x7-14x63

BAxis tiltng range

C Axis rotating range

Max.table rapid feedrate

Max.table load

300kg

Travel

Max.Xaxis travel

600

Max.Y axis travel

450

Max.Z axis travel

400

Range of spindlie nose to worktable

100-500

Spindle

Taper

ER25X8

Max.spindle speed

18000rpm

Spindle driven

MOTOR SPINDLE

Recommend the spindle motor power

4Kw

Feed screw

Three axis traverse speed

48/48/48m/min

Ball screw spec

3216-C3

Recommend the motor torque

>15N.m

ATC

Type

NOT
