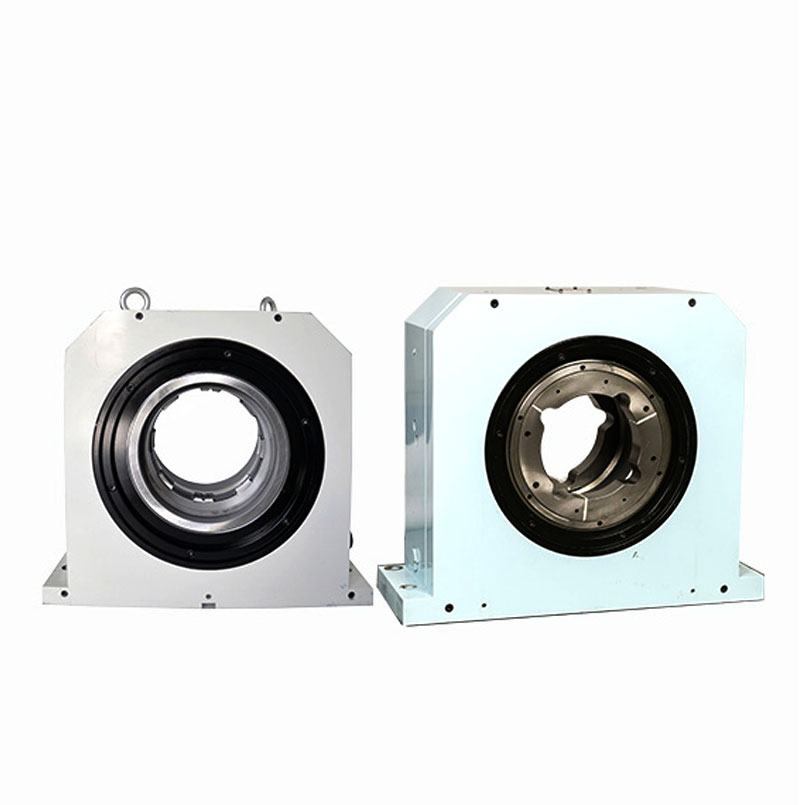

JHP-160/180/200/220/260 Large Size Bi-directional Main Shaft Clamp. Double-head Main Shaft Clamp

Inquire Now Next

Product Details

Product Features：
● The double tube clip holds, the accuracy of the holding body is 0.005mm, and the repeated accuracy of the workpiece is ≤0.05mm.
● The maximum use pressure is 20kg/cm², and the maximum speed ≤ 1000rpm/min.
● The assembly of the clip can be installed according to the requirements of the design level, ≤45 °, 90 °,
● The piston area: 190-245cm² piston movement to the left, the workpiece is clamped, the piston itinerary: 10mm
● "0" together to ensure concentricity.
● Compound waterproofing mechanism design ensures waterproof performance
● Different clamping methods can be made according to workpieces and processing

Product Application：
● Two -ends of spinning special planes, heart shafts, shaft sleeves, motor cases, stator, automobile rear axle, printed drum, crankshaft, etc. are widely used in manufacturing industries involving shaft applications such as automotive, electromechanical, etc. Special tool for processing.
● Parameter column "M" benchmarking the two -headed workpiece of the double -head clamping of the size of the two sides. It can support automatic feeding

Product Size

None

Product Parameters

Product Model	Product Parameters
	A	B	C	D	E	F	G	H	I	K	J	Number of pulley teeth
JHP-160(250)	230	440	420	157	45	241.3	18.5	376	460	500	140	126 gear-8M
JHP-180(250)	260	490	455	180	50	270.8	20	416	505	555	120	132 gear-8M
JHP-200(250)	260	490	455	180	50	270.8	20	416	505	555	120	140 gear-8M
JHP-220(255)	290	550	555	206	50	279.3	2.5	422	600	650	160	145 gear-8M
JHP-260(285)	350	650	620	235	50	305.8	0	0	670	720	180	170 gear-8M

Product Model	Product Parameters
	L	N	P	Q	R	S	T	V	M (Clamping length)	Extension sleeve Clamping length	Maximum through hole	Adapter cartridge clip
JHP-160(250)	178.5	210	265	5.8	243	45	10.5	16	220	370	160	ER-160/C-160
JHP-180(250)	180	236	400	4.8	249.4	40	11.5	21	250	400	180	ER-180/C-180
JHP-200(250)	180	253	400	4.8	249.4	40	11.5	21	250	400	200	ER-200/C-200
JHP-220(255)	206	273	325	9.8	275.5	45	10	21	255	400	220	ER-220/C-220
JHP-260(285)	235	330	374	7.3	304.4	50	11	21	285	400	260	ER-260/C-260
★ Those exceeding the above specifications can be customized, with the maximum diameter of 300mm

■ The above product data is for reference only, and can be changed according to the workpiece demand. Various non-standard products can be customized according to the workpiece and processing demand
■ Continuous improvement of products. Please consult our company if there is any change in the parameters of this catalog. The final confirmed parameters shall prevail
■ Clamping length: refers to the distance between two end faces of the clamping point.
