HAK33 Power Turret

Inquire Now Next

Product Details

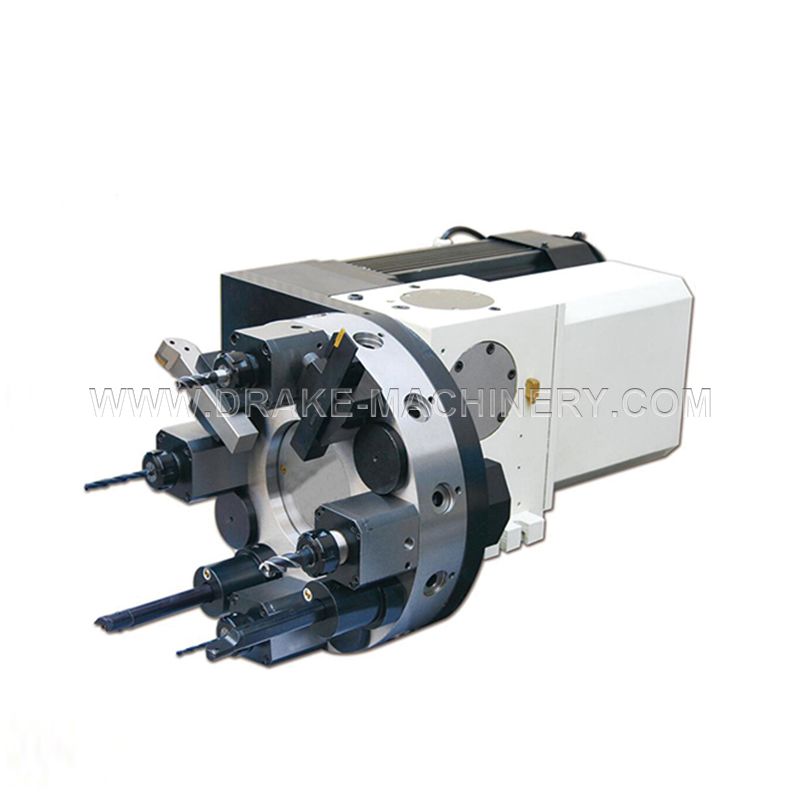

HAK33 series power tooling NC turret is taken servo turret as base and equipped with servo power head. The advantage is fast changing tool and big hydraulic locking force. There can be installed fixed cutting tools in every position and also can be installed rotating cutting tool, so that the lathe can operate for turning, facing, grooving, tapping, milling polygon and caving shape in once hold. This turret is key part of high-grade NC turning center.



1. Confirm various parameters when choosing models of turret. Choose the number of stations according to quantity of part procedure and complicacy.

2. Choose tool specifications according to model of machine tool and cutting force. Choose the front type or rear type tool turret according to the cutting directions of the machine tool.

3. After the mounting of boring cutter seat of horizontal turret, Self-bore the inner hole according to the size of boring bar and make a corresponding mark. The tool should be fixed in the former position in the later mounting.

4. The distance tool reaching out of upper housing distance is usually not more than 2/3 upper housing size. Please note when placing an order,if more than the limit.

5. Touch by hand or other things is forbidden when turret is running to avoid injury or damage.

6. If customers have any special requirements or changes in parameters, please offer some data and contact with our company.


Key Features of HAK33 CNC Power Turret


Servo Power Head

The HAK33 is built on a servo turret platform and equipped with a servo power head to drive rotating cutting tools. This configuration supports milling, tapping and other powered machining operations in addition to conventional turning.

Hydraulic Locking Mechanism

The hydraulic locking mechanism provides strong clamping force to secure the turret during machining. Stable tool positioning is important for maintaining machining accuracy under different cutting conditions.

Fixed and Rotating Tool Installation

The HAK33 allows fixed cutting tools and rotating cutting tools to be installed in its tool positions. This provides flexibility for machining processes involving external turning, facing, grooving, drilling-related operations and milling.

Fast Tool Changing

The HAK33 has an adjacent tool changing time of 0.25–0.3 seconds, depending on the model. This helps reduce tool change intervals during multi-operation CNC machining.

Multiple Center Height Options

Three center-height configurations are available: 63mm, 80mm and 100mm. These options allow the turret to be selected according to the CNC lathe structure and required tool mounting dimensions.

High-Speed Power Head

The power head has a rated speed of 4500rpm across the three listed models. Maximum cutting torque varies from 14N·m to 28N·m according to the selected configuration.




Product Size


Product Parameters

Model/Data
Center height
(mm)
Station numberRepeatability accuracy(")Time of adjacent
 tool changing(s)
Motor power
 of turret(Kw)
Max.torque of cutting
for power head(N·m)
Rated speed of
power speed(rpm)
Hydraulic
pressure(Mpa)
Flow(L/min)
HAK33063638±1.60.250.751445002.2~310
HAK3308080812±1.60.251.51945002.5~310
HAK33100100812±1.60.322845002.5~315

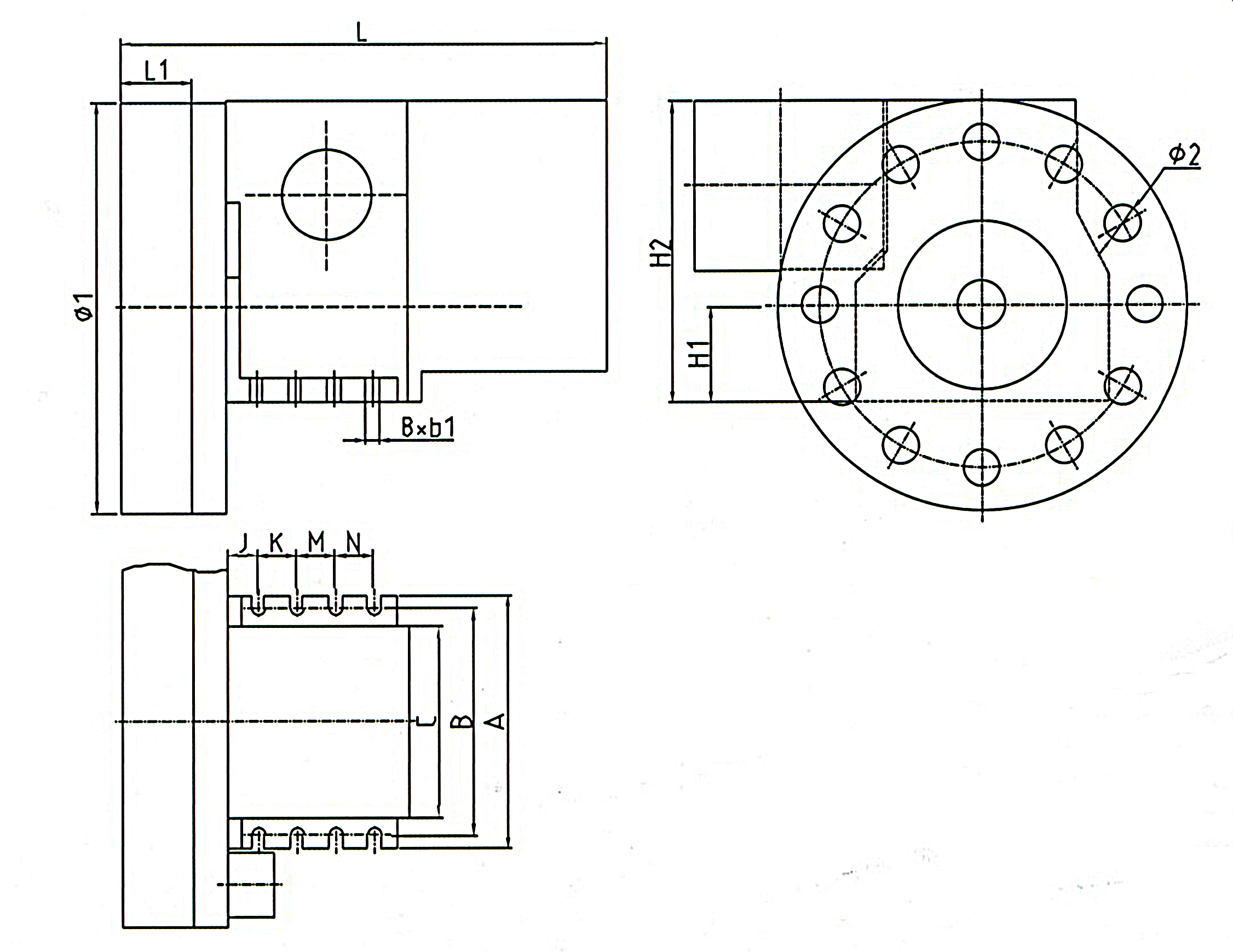

Model/Dim
ABCH1H2b1JKMNφ1φ2L1L
HAK33063190168143632301125303030φ295φ2043430
HAK33080210188158802501125323232φ340φ3056496
HAK331002382131801003001332403030φ410φ4065540


Applications of CNC Power Turrets


The HAK33 power tooling turret is designed for CNC turning centers that require both conventional turning and powered tool operations.

  • CNC Turning and Milling: Supports combined turning and milling operations within one workpiece setup.

  • Facing and Grooving: Accommodates fixed cutting tools for end-face machining and groove production.

  • Tapping Operations: Allows compatible rotating tools to be installed for thread machining.

  • Polygon Milling: Supports milling operations for polygonal features on turned components.

  • Complex Component Machining: Combines multiple tool operations to reduce repeated workpiece repositioning.

  • High-Grade CNC Turning Centers: Provides a servo-based power tooling configuration for advanced CNC lathe applications.


Frequently Asked Questions About HAK33 Power Turret


1. What is the HAK33 power turret used for?

The HAK33 is a power tooling NC turret for CNC turning centers. It supports both fixed and rotating cutting tools, allowing the machine to perform turning, facing, grooving, tapping, polygon milling and other compatible machining operations.

2. What is the difference between a power turret and a standard CNC turret?

A standard CNC turret mainly holds and indexes fixed cutting tools for turning operations. A power turret is equipped with a powered tool head that drives rotating cutting tools, enabling additional operations such as milling and tapping on a CNC turning center.

3. What HAK33 models are available?

Drake offers three listed models: HAK33063, HAK33080 and HAK33100, with center heights of 63mm, 80mm and 100mm respectively.

4. What is the maximum cutting torque of the HAK33 power turret?

The maximum power head cutting torque varies by model: 14N·m for HAK33063, 19N·m for HAK33080 and 28N·m for HAK33100.

5. What is the rated speed of the HAK33 power head?

The rated power head speed is 4500rpm across the three listed HAK33 models.

6. How fast does the HAK33 change tools?

The adjacent tool changing time is 0.25 seconds for HAK33063 and HAK33080, and 0.3 seconds for HAK33100.

7. What hydraulic pressure is required for the HAK33?

The hydraulic pressure requirements vary by model. HAK33063 requires 2.2–3MPa, while HAK33080 and HAK33100 require 2.5–3MPa. The specified hydraulic flow rates are 10L/min for the first two models and 15L/min for HAK33100.

8. Can the HAK33 be customized for a specific CNC lathe?

Special requirements and parameter changes can be evaluated according to the CNC lathe model, center height, mounting dimensions, cutting direction, tool configuration and machining requirements. Provide machine drawings and technical specifications when requesting a customized configuration.
