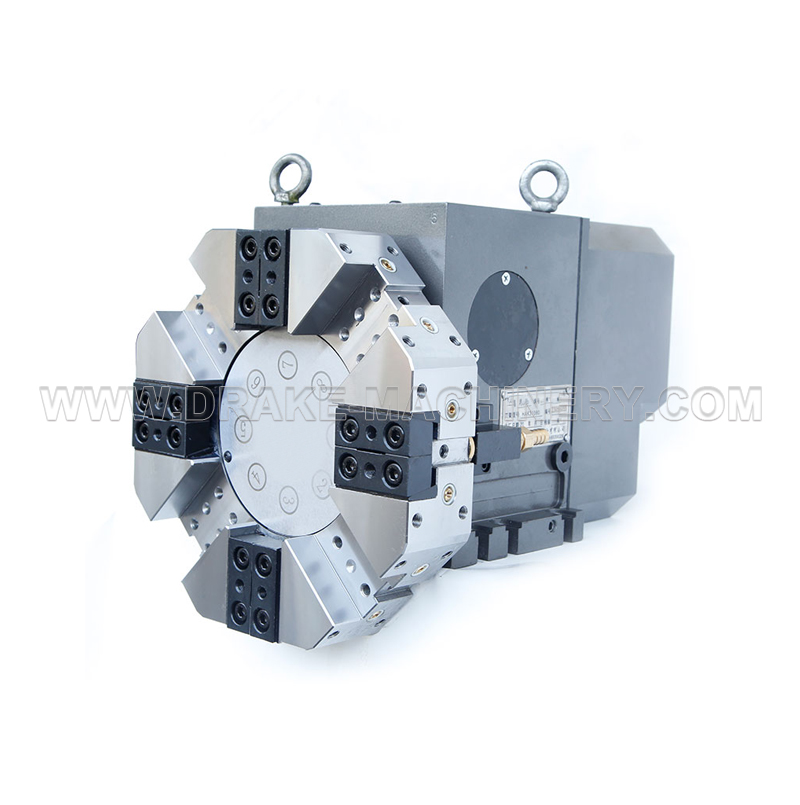

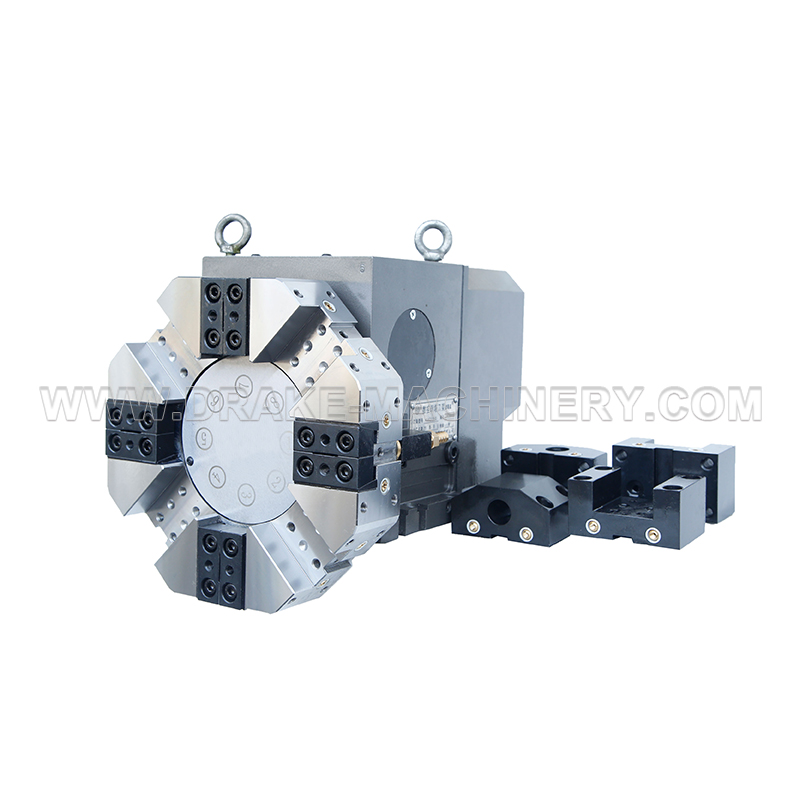

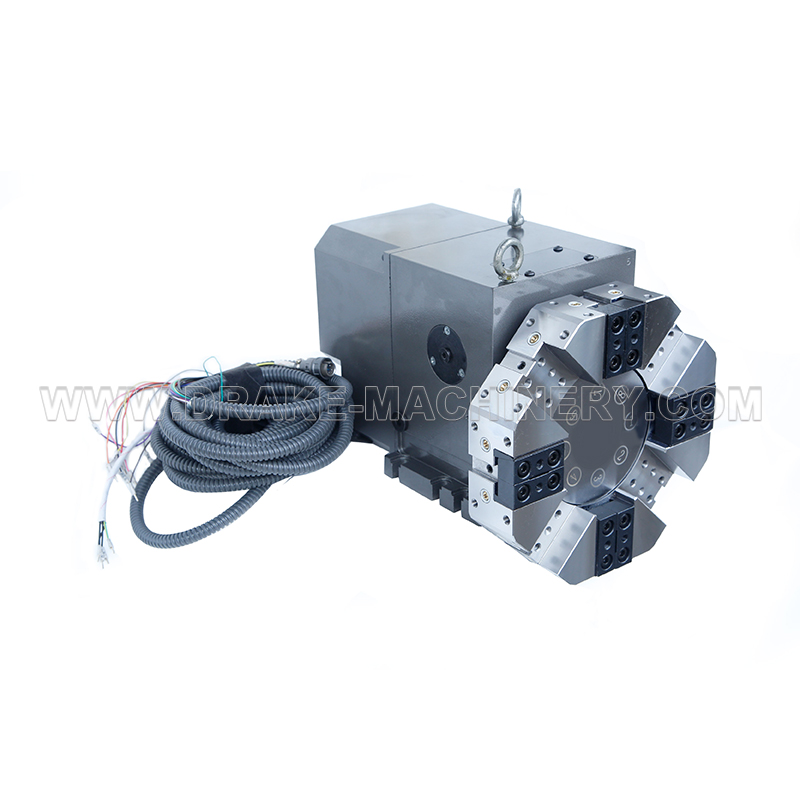

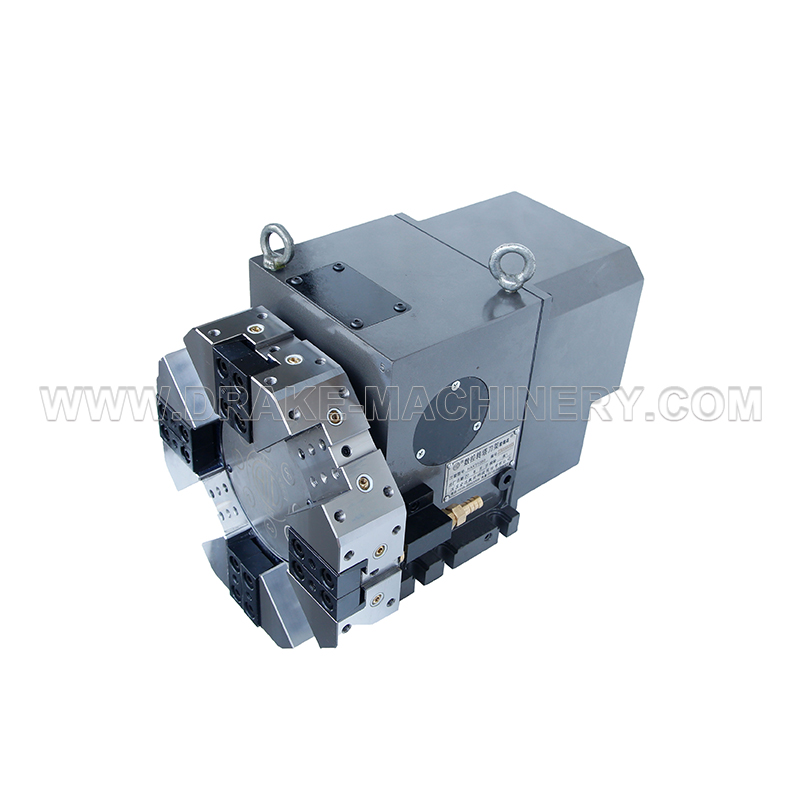

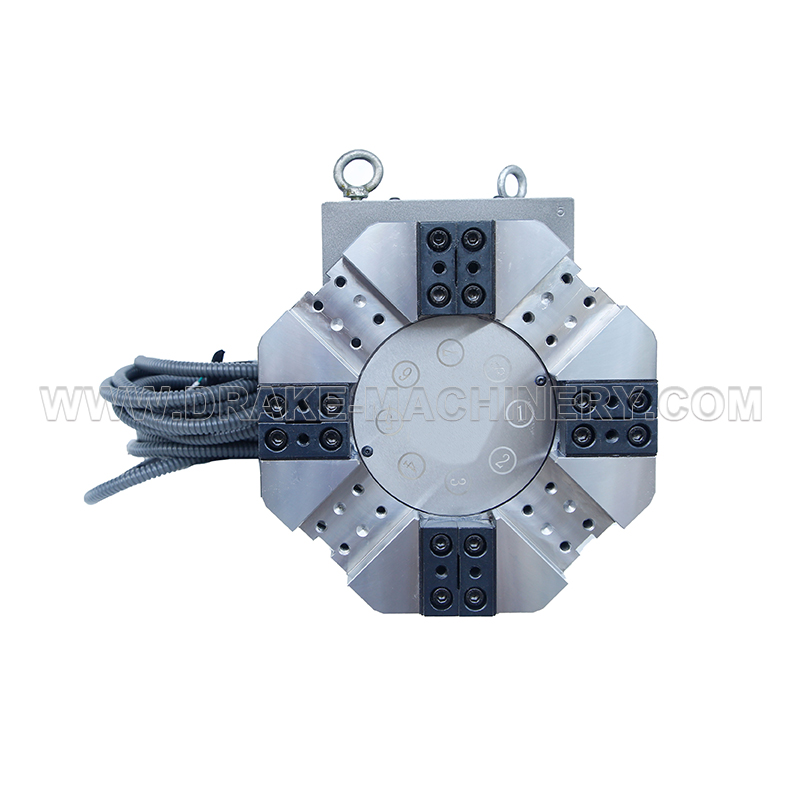

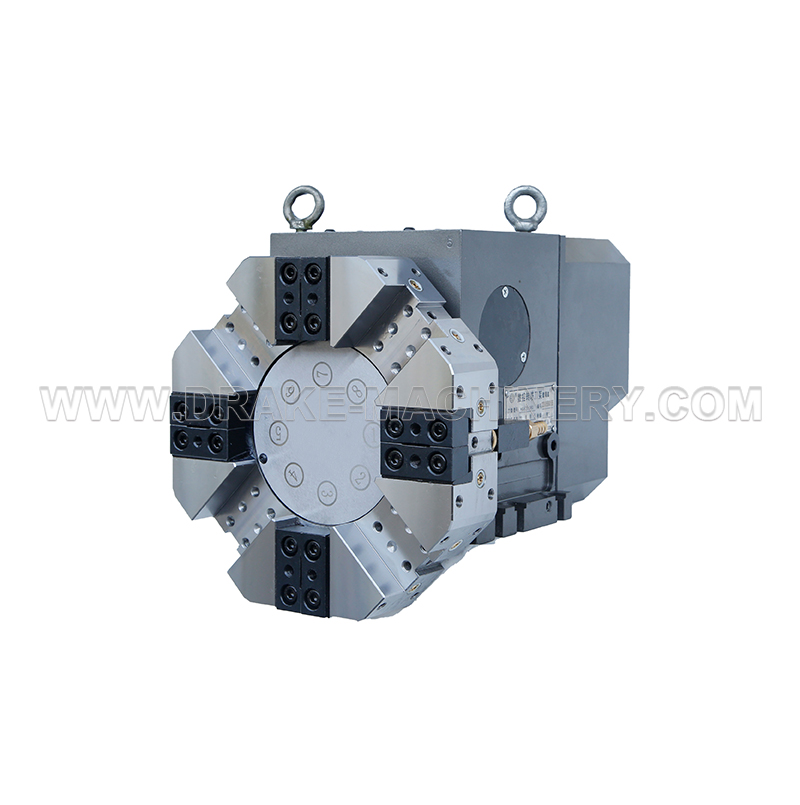

HAK31 Electric NC Turret

Inquire Now Next

Product Details

HAK31 series horizontal NC turret adopts the working principle of worm for driving, 3 face gear coupling as fine indexing mechanism, big screw for clamping, sending signal with Hall unit. It features indexing without tool-holder disk lifting, steady rotating, low noise, high stiffness, multi stations, build-in cooling. It is the best choice for processing complex parts.

1. Confirm various parameters when choosing models of turret. Choose the number of stations according to quantity of part procedure and complicacy.

2. Choose tool specifications according to model of machine tool and cutting force. Choose the front type or rear type tool turret according to the cutting directions of the machine tool.

3. After the mounting of boring cutter seat of horizontal turret, Self-bore the inner hole according to the size of boring bar and make a corresponding mark. The tool should be fixed in the former position in the later mounting.

4. The distance tool reaching out of upper housing distance is usually not more than 2/3 upper housing size. Please note when placing an order,if more than the limit.

5. Touch by hand or other things is forbidden when turret is running to avoid injury or damage.

6. If customers have any special requirements or changes in parameters, please offer some data and contact with our company.

Drake is a leading enterprise with 15+ years of factory experience, specializing in machine tool accessories and offering OEM & ODM services. We cooperate with over 60 countries and provide one-stop purchasing solutions for for Power Chuck, Collet Chuck, Turret, Tool Holder, Rotary Cylinder, Laser Chuck, Tool magazine, and more. Our strict adherence to international quality standards and comprehensive product range ensures tailored processing solutions for diverse customer needs.

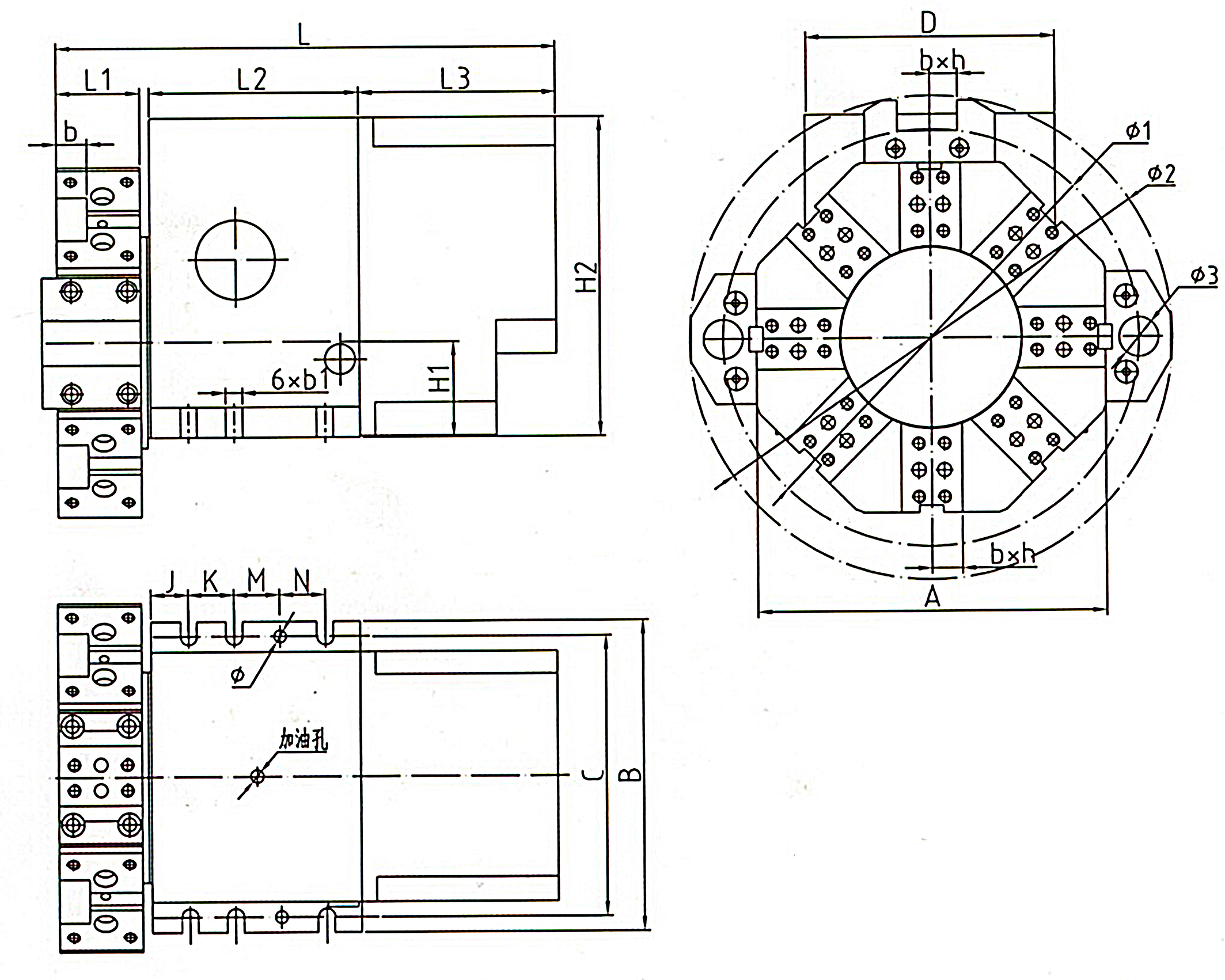

Product Size


Product Parameters

Model/Data	Center height (mm)	Station number		Max.tangential torque(N·m)	Repeatability accuracy(")	Time of changing tool and lock(s)
Model/Data	Center height (mm)	Station number		Max.tangential torque(N·m)	Repeatability accuracy(")	45º	60º
HAK31063	63	6	8	600	±2	2.6	2.8
HAK31080	80	6	8	1000	±2	2.8	3
HAK31100	100	6	8	1500	±2	3.6	3.8
HAK31125	125	6	8	2500	±2	4	4.2
HAK31160	160	6	8	4000	±2	4.3	4.5

Model/Dim	A	B	C	D	H1	H2	b1	b	h	L	L1	L2	L3	J	K	M	N	φ	φ1	φ2	φ3
HAK31063	230	205	185	165	63	210	11	20	20	329	55	138	130	25	30	30	30	φ8	φ274	φ318	φ25
HAK31080	260	210	190	180	80	230	11	25	25	350	60	147	130	32	32	32	32	φ8	φ310	φ366	φ25
HAK31100	300	240	220	200	100	260	13	25	25	384	72	164	140	25	40	30	30	φ10	φ360	φ420	φ32
HAK31125	340	288	260	230	125	300	18	32	32	459	85	204	150	32	44	43	43	φ12	φ420	φ492	φ40
HAK31160	460	380	345	306	160	380	22	40	40	564	115	265	160	40	48	56	48	φ22	φ560	φ640	φ50
