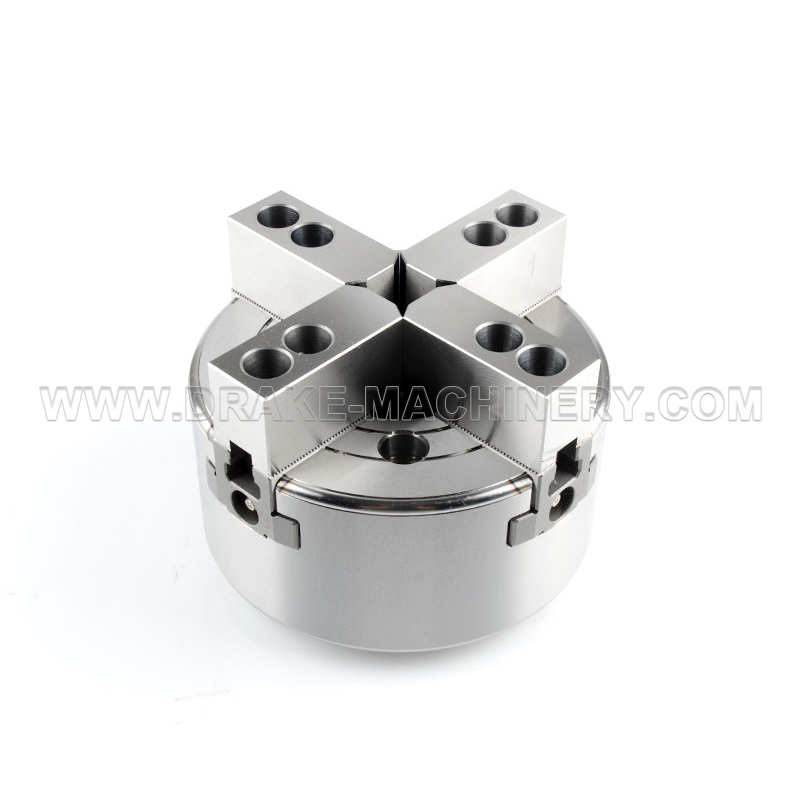

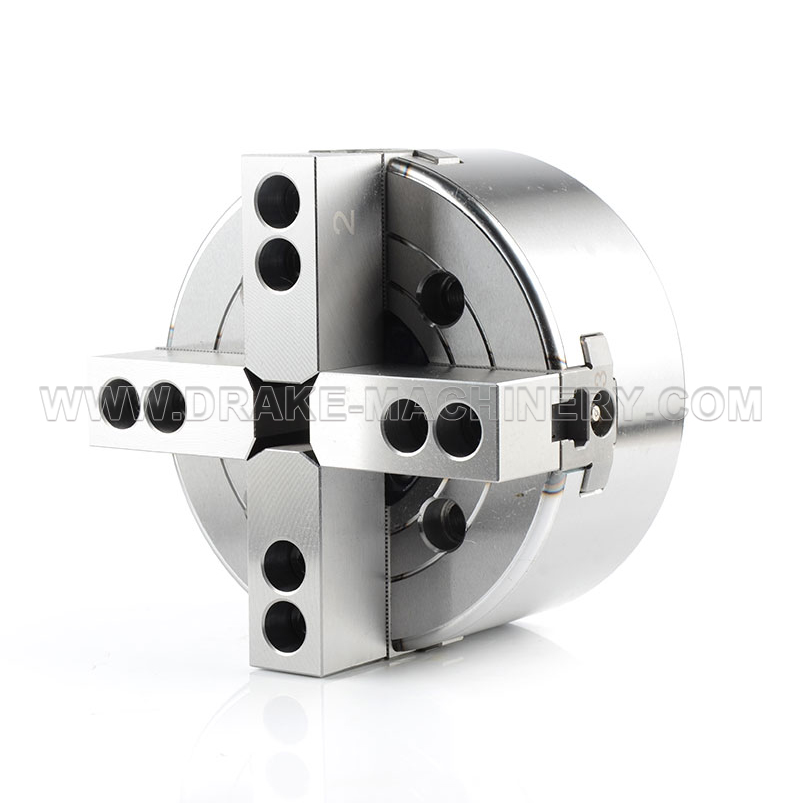

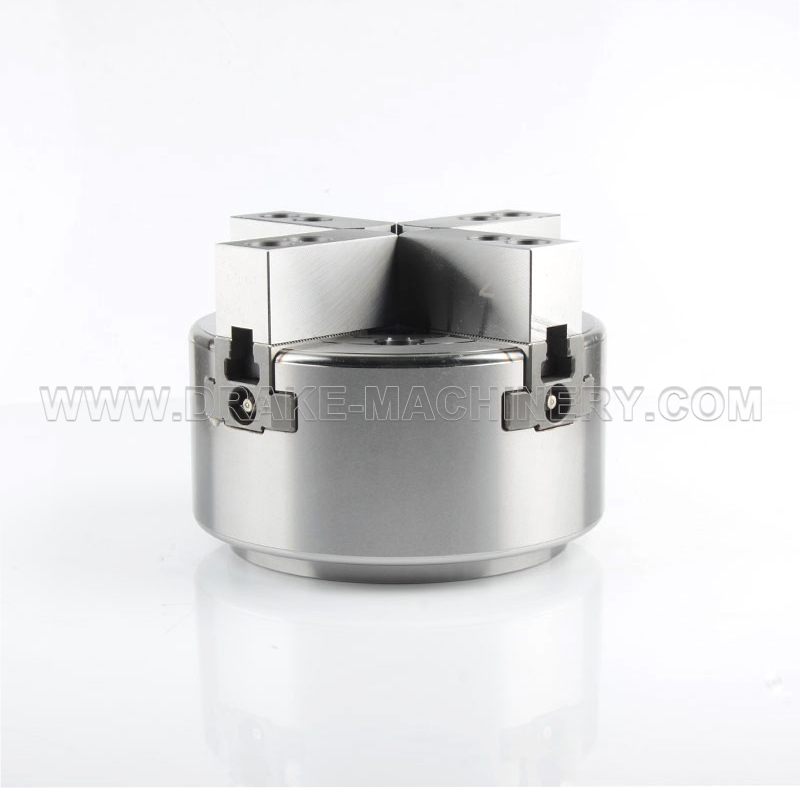

Product Details
Product Feature:
Adopt the advanced alloy steel material, all with the surface by surface hardening treatment, in order to improve the accuracy and durability.

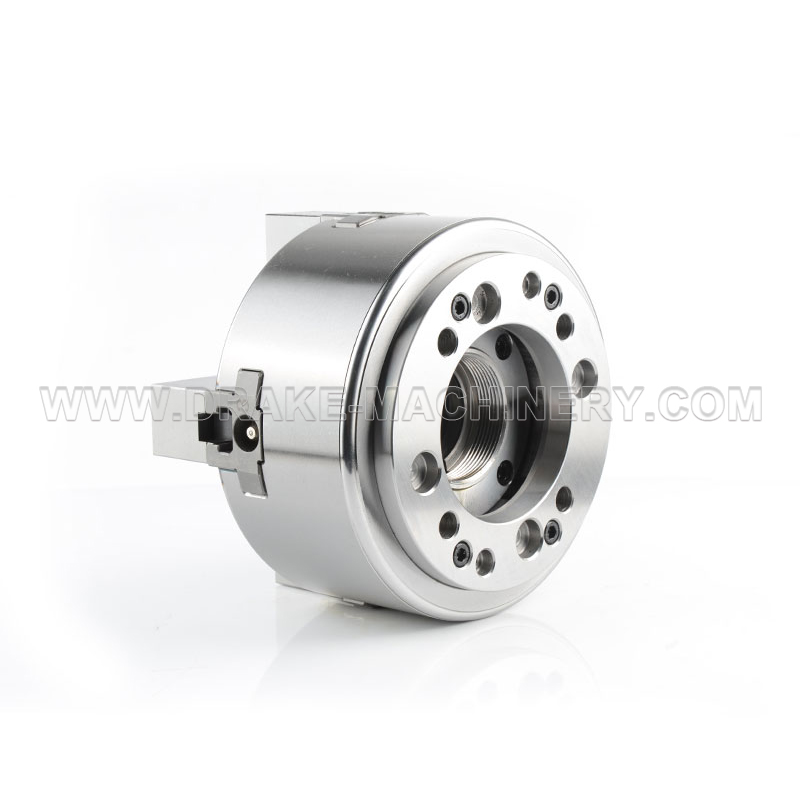

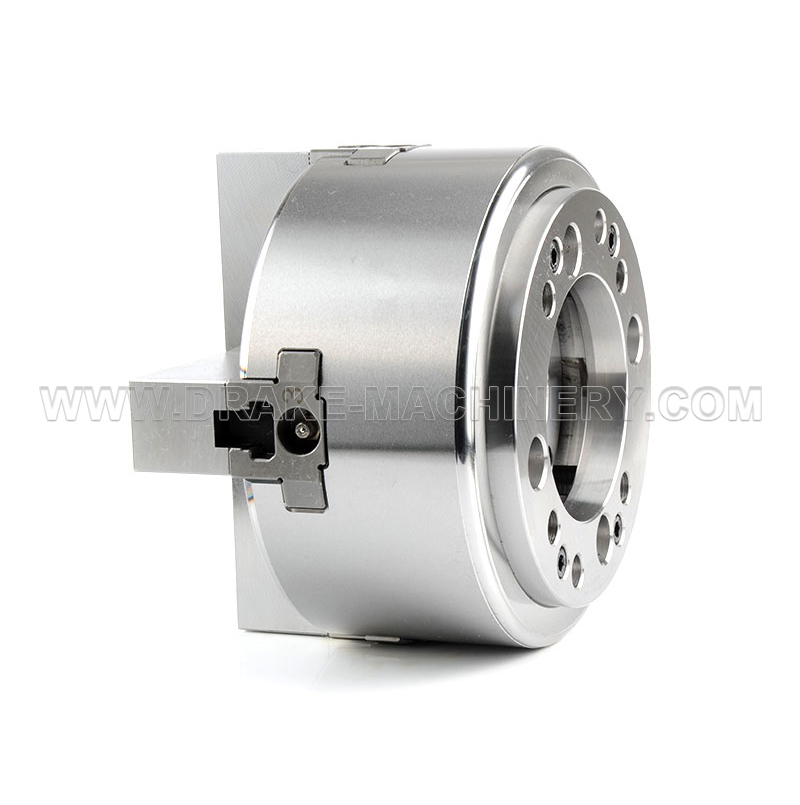

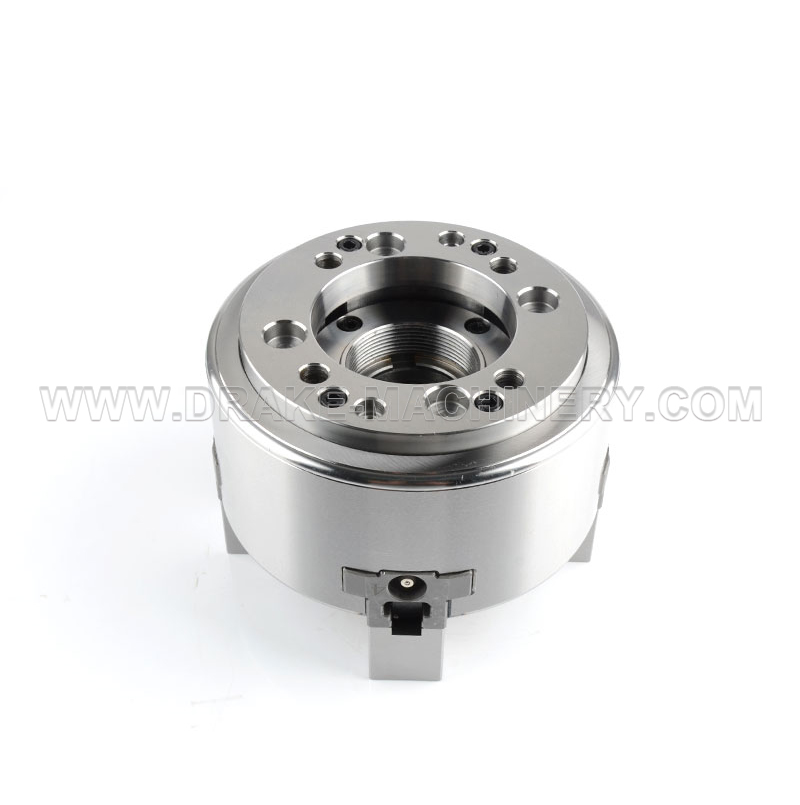

With flange connection, A connection.
Product Size
Product Parameters
Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!
| Performance parameters | |||||||||||
| MODEL/SPEC. | Nose Of Spindle | Thru-Hole (Diameter) (mm) | Plunger Stroke(mm) | Jaw Stroke (Diameter) (mm) | Max.Speed (r.p.m) | Max.Pull Force kgf(KN) | Max.Gripping Force (kgf) | Max.Hydr. Pressure (kgf/cm2) | Net weight (kg) | Matching Cylinder | Gripping Range |
| YK4-06" | A25 | 45 | 12 | 5.5 | 4500 | 1630 | 4180 | 21 | 14.2 | TK646 | Φ15~Φ169 |
| YK4-08" | A26(A25) | 52 | 16 | 7.4 | 3600 | 2440 | 6010 | 19 | 24.5 | TK852 | Φ20~Φ210 |
| YK4-10" | A28(A26) | 75 | 19 | 8.8 | 3200 | 3160 | 8050 | 20 | 38.1 | TK1075 | Φ26~Φ254 |
| YK4-12" | A28 | 91 | 23 | 10.6 | 2500 | 4080 | 10400 | 20 | 60.5 | TK1291 | Φ30~Φ304 |
| YK4-15" | A211(A28) | 117.5 | 23 | 10.6 | 1800 | 5400 | 12600 | 19 | 111.5 | TK1512 | Φ50~Φ381 |
| Size parameter | ||||||||||||||||||||||||||

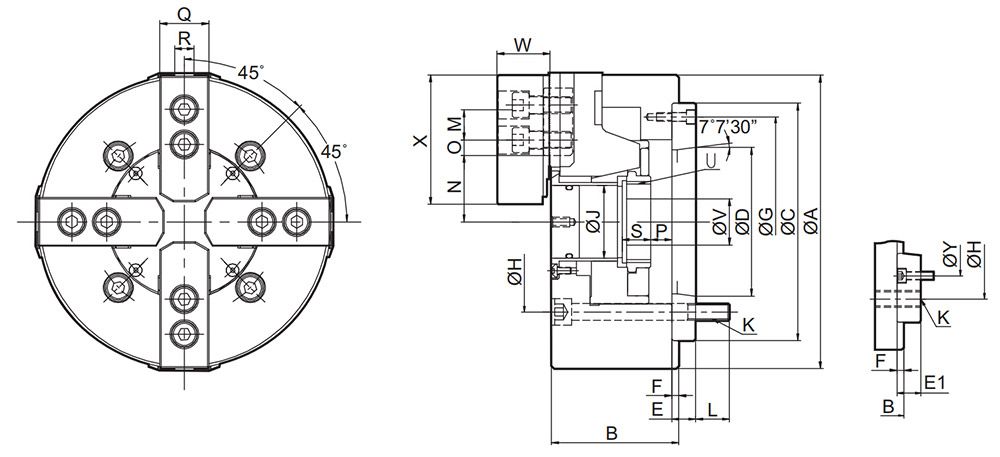

| MODEL/SPEC. | A | B | C (h6) | D | E | E1 | F | G | H | H1 | J | K | L | M | N max. | N min. | O max. | O min. | P max. | P min. | Q | R | S | T | U | X |
| YK4-06" | 169 | 81 | 140 | 82.536 | 15 | / | 5 | 116 | 104.4 | PCDΦ145 | 45 | 6-M10×1.5P | 16 | 20 | 32 | 29.25 | 24 | 7 | 11 | -1 | 31 | 12 | 19 | 2 | M55×2P | 73 |
| YK4-08" | 210 | 91 | 170 | 106.375 | 17 | 23 | 5 | 150 | 133.4 | PCDΦ180 | 52 | 6-M12×1.75P | 18 | 25 | 38.7 | 35 | 30 | 10 | 14.5 | -1.5 | 35 | 14 | 20.5 | 2 | M60×2P | 95 |
| YK4-10" | 254 | 100 | 220 | 139.719 | 18 | 28 | 5 | 190 | 171.4 | PCDΦ225 | 72 | 6-M16×2P | 25 | 30 | 51 | 46.6 | 34 | 12 | 8.5 | -10.5 | 40 | 16 | 25 | 2 | M85×2P | 110 |
| YK4-12" | 304 | 110 | 220 | 139.719 | 18 | / | 6 | 190 | 171.4 | PCDΦ250 | 91 | 6-M16×2P | 25 | 30 | 61.3 | 56 | 46 | 12 | 8 | -15 | 50 | 21 | 28 | 2 | M100×2P | 129 |
| YK4-15" | 380 | 133 | 300 | 196.869 | 22 | 33 | 6 | 260 | 235 | PCDΦ324 | 117.5 | 6-M20×2.5P | 28 | 43 | 82.7 | 77.4 | 46 | 13 | 8 | -15 | 62 | 21 | 42.5 | 5 | M130×2P | 165 |
-
