V6 Six-jaws Universal solid waterproof chuck for vertical lathes

Inquire Now Next

Product Details

Product Feature:

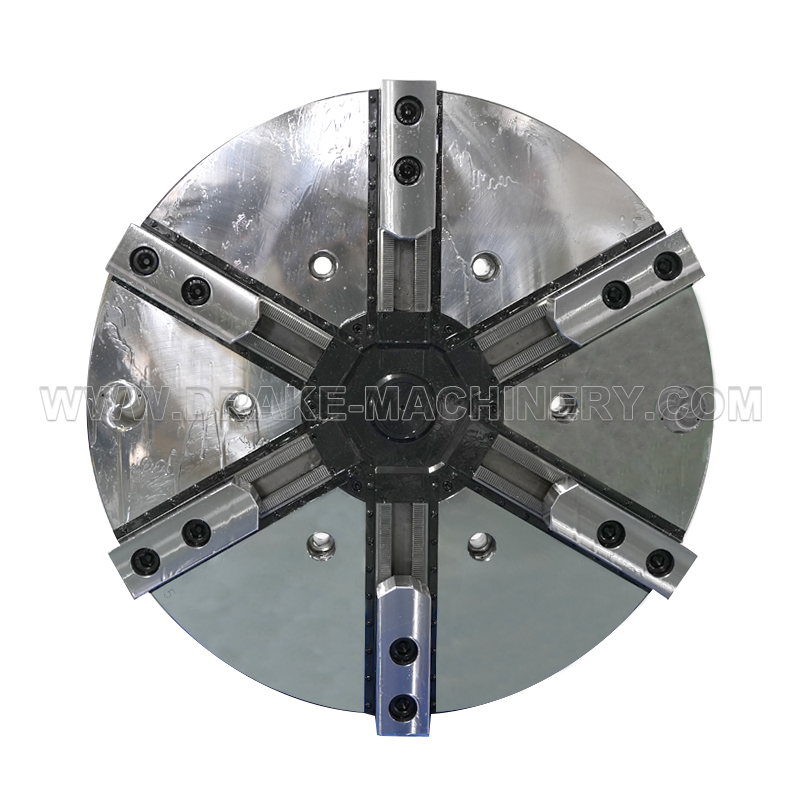

Six-jaws universal solid waterproof chuck for vertical lathes are suitable for vertical lathes and Horizontal lathes, There is a seal on the end face of the disc body, which can prevent iron filings and cutting water from entering the chuck and prolong the service life of the chuck. Six claw desian. The flange is also sealed to prevent cutting water from entering the spindle of the machine tool, and can be equipped with various types of flanges according to requirements.

Product Size

Product Parameters

型号/规格 Model Specifications	楔心套行程 Wedge core stroke (mm)	卡爪行程 Jaw travel (mm)	最大推拉力 Maximum pushing and pulling force (KN)	最大夹紧力 Maximum clamping force(KN)	最高转速 Maximum rotational speed(rmp)	适配油缸 Suitable hydraulic cylinder
V6-12/A8	26	11	50	120	3300	SH150
V6-15/A8	35	16	80	200	2800	SH200
V6-15/A11	35	16	80	200	2800	SH200
V6-18/A8	35	16	80	200	2500	SH200
V6-18/A11	35	16	80	200	2500	SH200
V6-21/A11	33	17.6	90	225	1200	SH200
V6-21/A15	33	17.6	90	225	1200	SH200
V6-24/A11	38	20.3	90	225	1000	SH250
V6-24/A15	38	20.3	90	225	1000	SH250
V6-32/A11	35	18.7	90	225	800	SH250
V6-32/A15	35	18.7	90	225	800	SH250

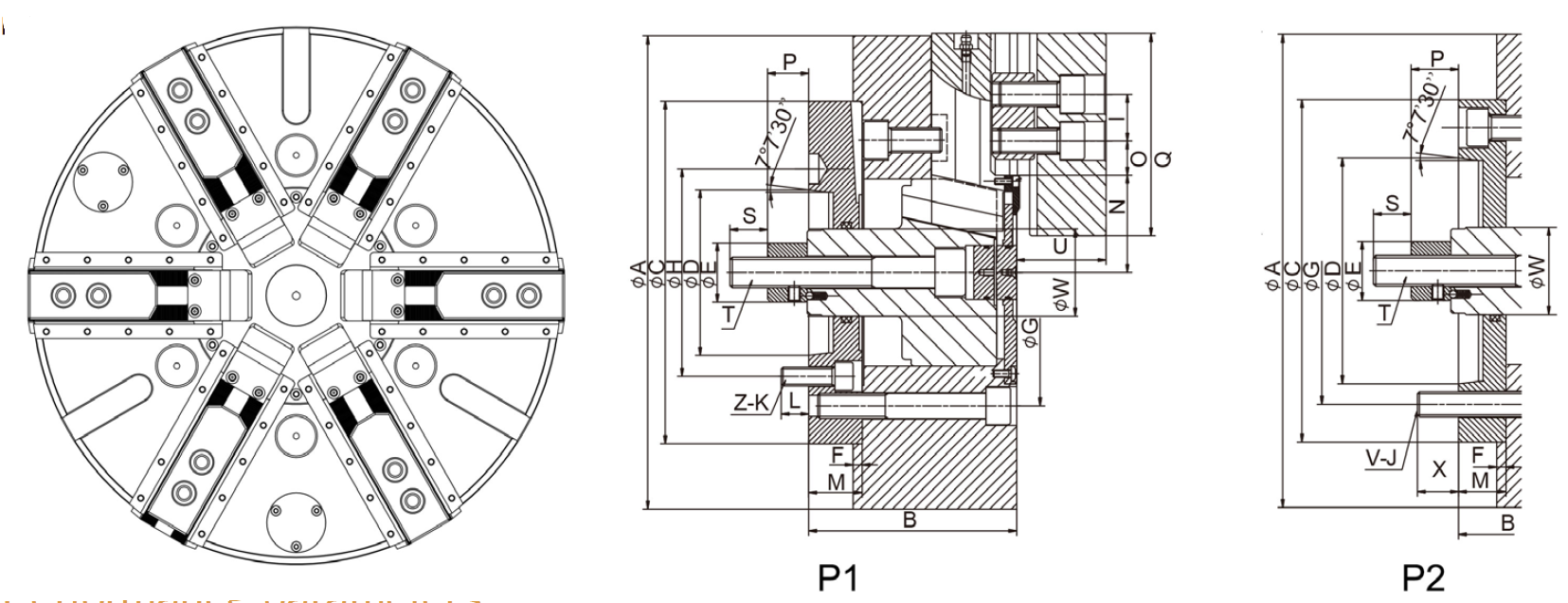

型号/规格 Model Specifications	参考图示 Refer to the diagram	A	B	C	D	E	F	G	H	I	J	Z-K	L
V6-12/A8	P2	304	133	220	139.719	50	6	235	/	20	6-M16	/	/
V6-15/A8	P1	381	143	300	139.719	60	6	235	171.4	30	6-M20	6-M16	24
V6-15/A11	P2	381	143	300	196.869	60	6	235	/	30	6-M20	/	/
V6-18/A8	P1	450	142	300	139.719	60	6	235	171.4	30	6-M20	6-M16	24
V6-18/A11	P2	450	142	300	196.869	60	6	235	/	30	6-M20	/	/
V6-21/A11	P1	530	156	380	196.869	60	6	330.2	235	30	6-M24	6-M20	30
V6-21/A15	P2	530	158	380	285.78	60	6	330.2	/	30	6-M24	/	/
V6-24/A11	P1	610	164	380	196.869	60	6	330.2	235	30	6-M24	6-M20	30
V6-24/A15	P2	610	164	380	285.78	60	6	330.2	/	30	6-M24	/	/
V6-32/A11	P1	810	169	380	196.869	60	6	330.2	235	60	6-M24	6-M20	30
V6-32/A15	P2	810	169	380	285.78	60	6	330.2	/	60	6-M24	/	/

型号/规格 Model Specifications	M	N(MAX)	O		P		Q	R	S	T	U	W	X	梳齿
型号/规格 Model Specifications	M	N(MAX)	MAX	MIN	MAX	MIN	Q	R	S	T	U	W	X	梳齿
V6-12/A8	33	64	45.75	12.75	145	115	72	12	36	M20X2.5	42	50	24	1.5X60°
V6-15/A8	33	78	49.75	24.25	70	35	110	16	55	M30X3.5	48	60	24	1.5X60°
V6-15/A11	33	78	49.75	24.25	82	47	110	16	55	M30X3.5	48	60	32	1.5X60°
V6-18/A8	33	92	70.75	24.25	59	24	110	16	55	M30X3.5	48	60	24	1.5X60°
V6-18/A11	33	92	70.75	24.25	70	35	110	16	55	M30X3.5	48	60	32	1.5X60°
V6-21/A11	40	87	93.5	27.5	70	35	130	18	55	M30X3.5	55	68	30	1.5X60°
V6-21/A15	40	87	93.5	27.5	70	35	130	18	55	M30X3.5	55	68	30	1.5X60°
V6-24/A11	40	126.5	93.5	27.5	70	35	130	18	55	M30X3.5	57	68	30	1.5X60°
V6-24/A15	40	126.5	93.5	27.5	70	31	130	18	55	M30X3.5	57	68	30	1.5X60°
V6-32/A11	40	104.8	196.5	25.5	47	12	180	25	55	M30X3.5	76	68	30	3.0X60°
V6-32/A15	40	104.8	196.5	25.5	47	12	180	25	55	M30X3.5	76	68	30	3.0X60°
