QS5-5 Jaw Solid Pneumatic Power Chuck (Built In)

Inquire Now Next

Product Details

Product Feature:

This series of 5 Jaw Chuck comes with built-in cylinder structure, adopt the advanced alloy steel material, all with the surface by surface hardening treatment, in order to improve the accuracy and durability Without flange connection, D connection.

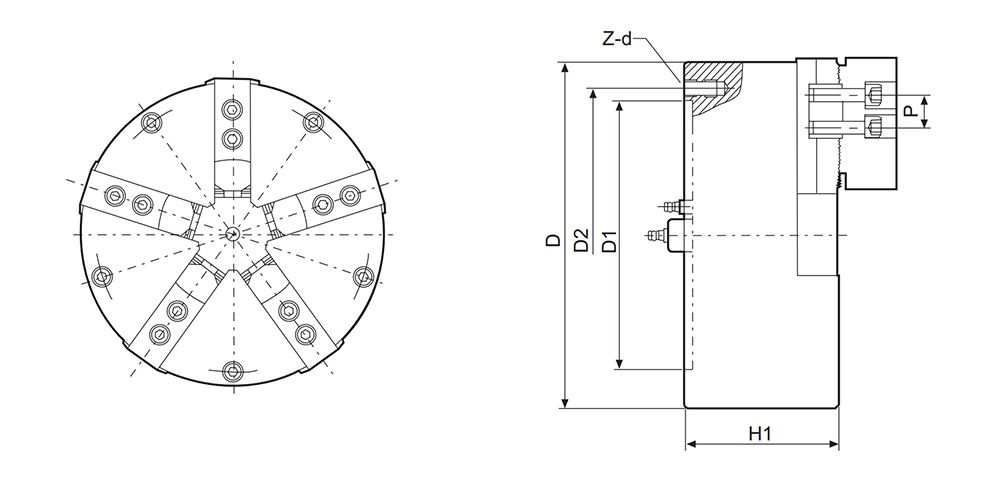

Product Size

QS5-5 Jaw Solid Pneumatic Chuck (Built In)

Product Parameters

Discover the cnc power chuck model that suits your requirements from the following parameters. As a leading cnc power chuck manufacturer, if you have any questions regarding selection, pricing, or technical aspects, please don't hesitate to reach out. Feel free to leave your email along with your inquiries, and our dedicated team will promptly get in touch with you for professional assistance!

Performance parameters
Model/Spec.Jaw stroke
(diameter)(mm)
Maximun static clamping force
(Kgf)
Maximum static holding force
(Kgf)
Permissible pressure
(Mpa)
Limit speed
(r/min)
Clamping
range
Holding
range
Net weight
(kg)
QS5-08"5714042840.4-0.8330020-22040-24024
QS5-10"5.7928261200.4-0.8300030-26050-28037
QS5-12"8.51407694860.4-0.8250040-35060-36072
QS5-15"1019788150960.4-0.8200060-42080-440122


Size parameters
Model/Spec.DD1D2HH1hpZ-d
QS5-08"212165180136985253-M10
QS5-10"2522062261431005303-M12
QS5-12"3252702901601156306-M12
QS5-15"4003403681681186436-M16
