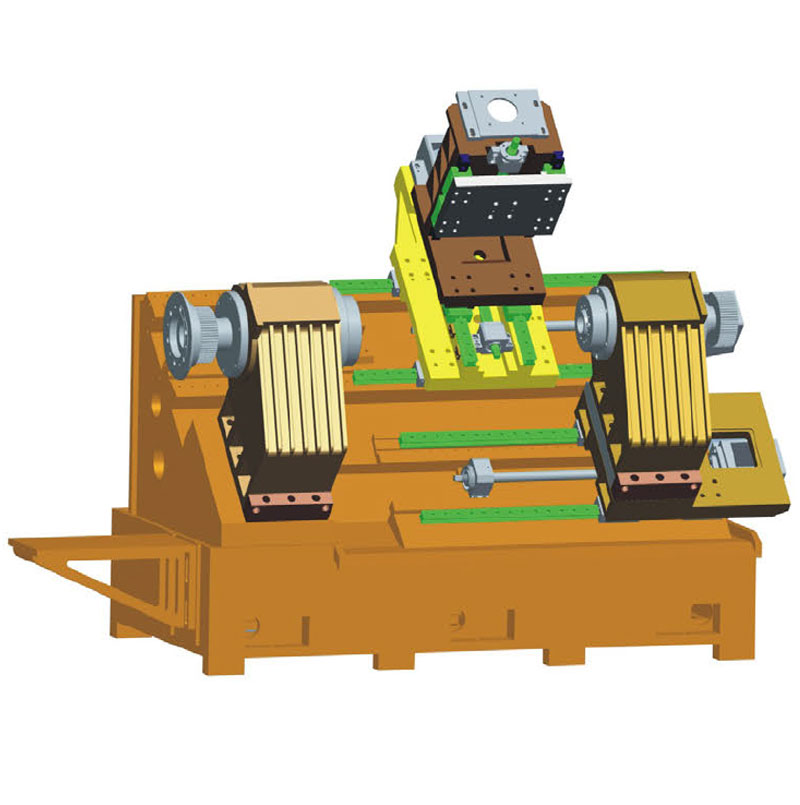

45°Turning Centre(Double Spindle Single Turret Single Y-axis) GP-400SY

Inquire Now Next

Product Size

ltem

S i z e

GP-400SY

Working range

Max.Turning diameter over bed

φ580

Max.Turming swing dia.over carriage

φ330

Max.Turing diameter

φ250(When the X, Y axis and power tool turret are protected as a whole)

Max.Length between both chucks

480

500

Max.Processing length

400

430

Max.X/Z axis trave

X2 axis

230

Y2 axis

120

Z2 axis

530

Max.Taiistock travel

530

Feed screw

Control axis

6Axis(X+Y+Z+Z3+C1+C2

X2 axis ball-screw

3208-C3

(N·m)Recommend the X2 axis motor torque

>10

Y2 axis ball-screw

3208-C3

(N·m)Recommend the Y2 axis motor torque

≥10

Z2 axis ball-screw

3208-C3

(N·m)Recommend the Z2 axis motor torque

>15

Tailstock ball-screw

3208-C3

(N·m)Recommend tallstock motor torque

>15

Bed

Bed slant angle

45° integral casting bed

Linear quide's span

400

Spindle

(tpm)Max.spindle speed

MAIN:4500 BACK:4500

Spindle through-hole diameter

MAIN:φ61 BACK:φ56

Spindle nose size

MAIN:A2-6 BACK:A2-5

(kW)Recommend the spindle motor power

MAIN:7.5 BACK:5.5

MAIN:5.5 BACK:5.5

Hydraulic chuck or collet chuck

MAIN:8 INCH BACK:6 INCH

MAIN:6 INCH BACK:6 INCH
