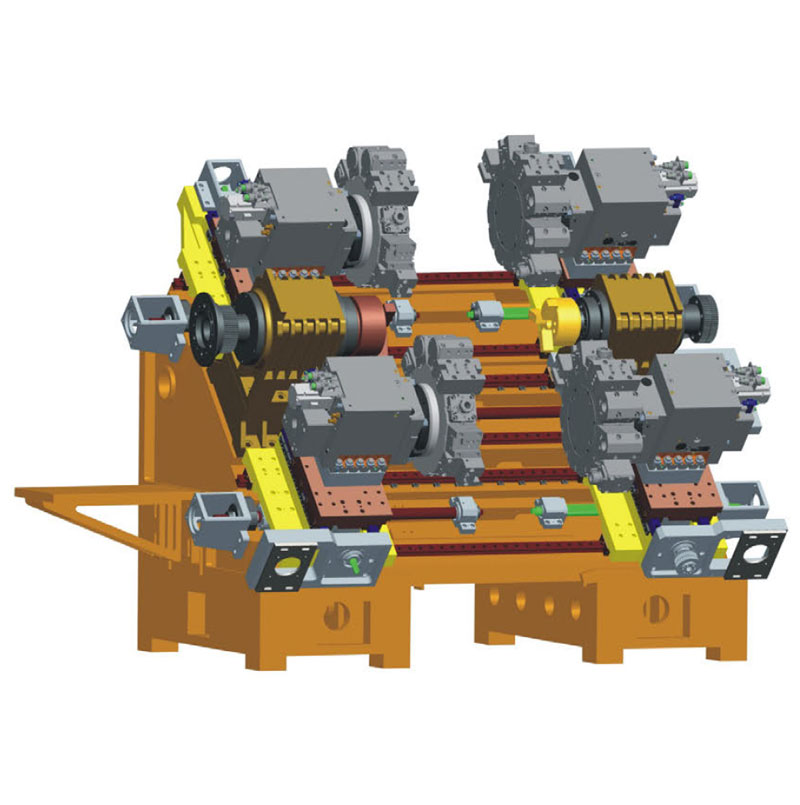

45°Turning Centre(Double Spindle Four Turret) GP-500STT

Inquire Now Next

Product Size

Item

S i z e

GP-500STT

Working range

Max.Turning diameter over bed

φ680

Max.Turning swing dia.over carriage

φ400

Max.Turing diameter

φ250(When the X-axis is protected with a special hydraulic turret.)

Max.Length between both chucks

580

600

Max.Processing length

500

Max XZ axi

X1/X2/X3/X4 axis

230/230/160/160

Z1/Z2/Z3/Z4 axis

570/350/570/350

Max.Tailstock travel

570

Eoed screW

Control axis

11Axis(X1+X2+X3+X4+Z1+Z2+Z3+Z4+Z5+C1+C2)

X1/X2/X3/X4 axis ball-screw

3210-C3

(N·m)
Recommend the X1/X2/X3/X4 axis motor torque

>10

Z1/Z2/Z3/Z4 axis ball-screw

4010-C3

(N·m)
Recommend the Z1/Z2/Z3/Z4axis motor torque

>15

Z5 axis ball-screw

4010-C3

(N·m)Reconmend the Z5 axis motor torque

>15

Bed

Bed slant angle

45° Integral cast bed

Linear guide's span

400

Spindle

(rpm)Max.spindle speed

main spindle:4500 back spindle:4500

Spindle through-hole diameter

main spindle:φ61 back spindle:φ61

main spindle:φ61 back spindle:φ56

Spindle nose size

main spindle:A2-6 back spindle:A2-6

main spindle:A2-6 back spindle:A2-5

(kW)Recommend the spindle motor power

main spindle:7.5 back spindle:7.5

Hydraulic chuck or collet chuck

main spindle:8 inch back spindle:8 inch
