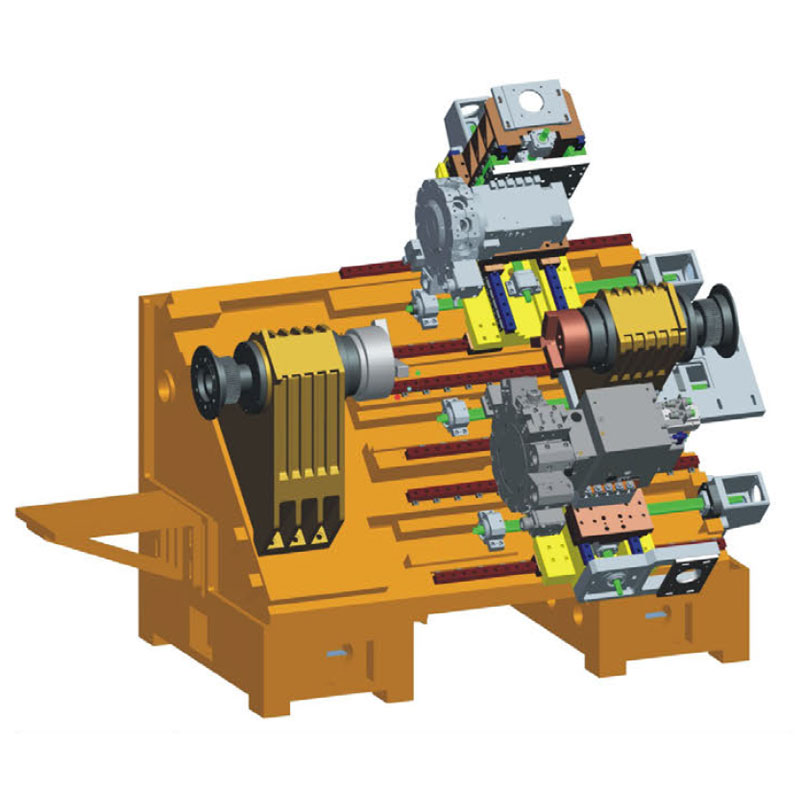

45°Turning Centre(Double Spindle Double Turret Single Y-axis) GP-500STY

Inquire Now Next

Product Size

l tem

S i z e

GP-500STY

Working range

Max.Turning diameter over bed

φ680

Max.Turning swing dia.over carriage

φ380

Max.Turing diameter

φ250(When the X and Y axes and the power turret are protected as a whole)

Max.Length between both chucks

560

580

Max.Processing length

540

560

Max.X/Z axis

X2/X4 axis

230/160

Y2 axis

120

Z2/Z4 axis

570/570

Max.Talistock travel

570

Feed screw

Control axis

8Axis(X2+X4+Y2+Z2+Z4+Z5+C1+C2)

X2/X4 axis ball-screw

3210-C3

(N·m)
Recommend theX2/X4 axis motor torque

>10

Y2 axis ball-screw

3208-C3

(N·m)Recommend the Y2 axis motor torque

>10

Z2/Z4 axis ball-screw

4010-C3

(N·m)
Recommend the Z2/Z4axis motor torque

>15

Z5 axis ball-screw

4010-C3

(N·m)Recommend the Z5 axis motor torque

>15

Bed

Bed slant angle

45° Integral cast bed

Lnear guide's span

400

Spindle

(rpm)Max.spindle speed

main spindle:3000 back spindle:4500

main spindle:4500 back spindle:4500

Spindle through-hole diameter

main spindle:φ79 back spindle:φ61

main spindle:φ61 back spindle:φ61

Spindle nose size

main spindle:A2-6 back spindle:A2-6

(KW)Recommend the spindle motor power

main spindle:11 back spindle:7.5

main spindle:7.5 back spindle:7.5

Hydraulic chuck or collet chuck

main spindle:10 inch back spindle:8 inch

main spindle:8 inch back spindle:8 inch
