V Universal solid waterproof chuck for vertical and horizontal lathes

Inquire Now Next

Product Details

Three-jaws universal solid waterproof chuck for vertical lathes are suitable for vertical lathes and Horizontal lathes. There is a seal on the end face of the disc body, which can prevent iron filings and cutting water from entering the chuck and prolong the service life of the chuck. Six claw design. The flange is also sealed to prevent cutting water from entering the spindle of the machine tool, and can be equipped with various types of flanges according to requirements.

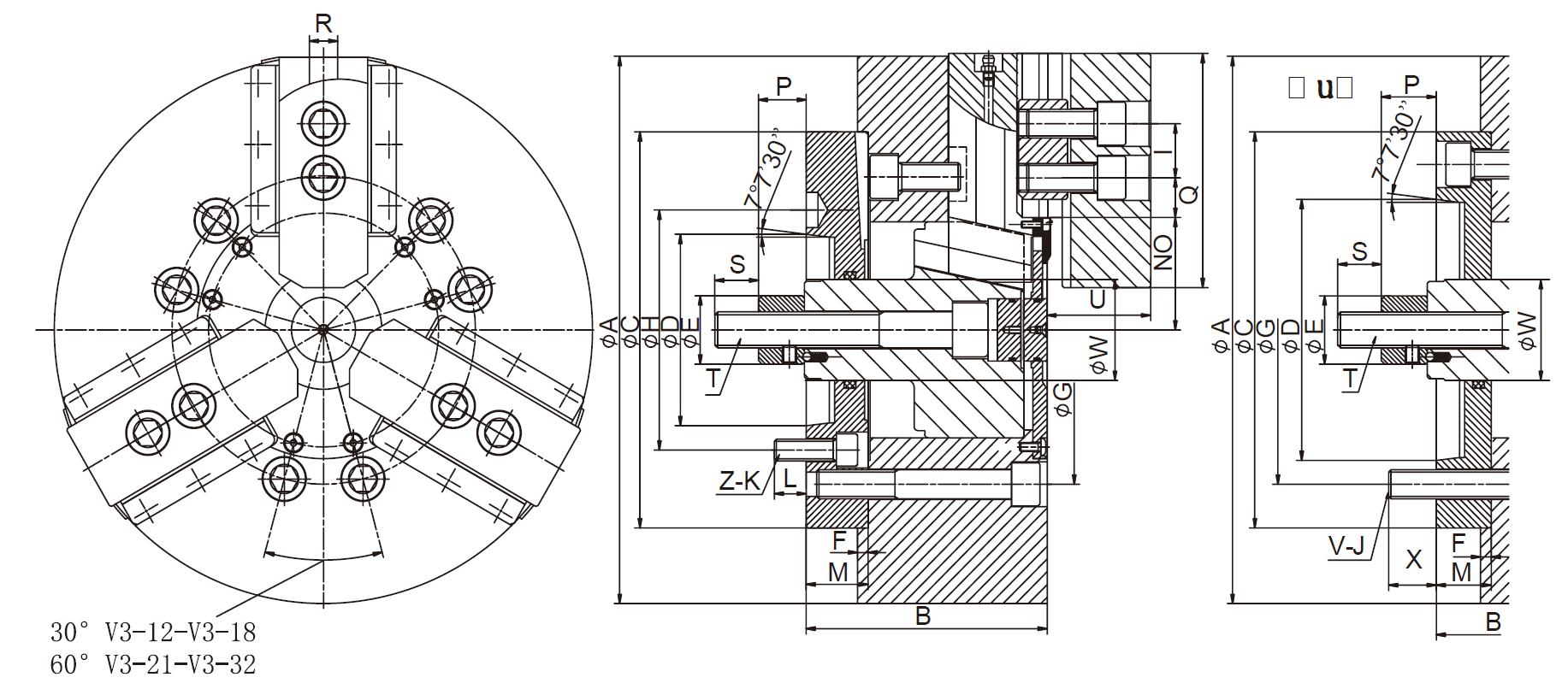

Product Size

Product Parameters

Model	Wedge-shaped core sleeve travel(mm)	Jaw travel(mm)	Maximum force(KN)	Max.Gripping Force(KN)	Max. speed(rmp)	Matching Cylinder
Model	Wedge-shaped core sleeve travel(mm)	Jaw travel(mm)	Maximum force(KN)	Max.Gripping Force(KN)	Max. speed(rmp)	Matching Cylinder
V3-10/A6	26	7.7	28	105	4000	SH125
V3-10/A8	26	7.7	28	105	4000	SH125
V3-12/A8	26	11	50	120	3300	SH150
V3-15/A8	35	16	80	200	2800	SH200
V3-15/A11	35	16	80	200	2800	SH200
V3-18/A8	35	16	80	200	2500	SH200
V3-18/A11	35	16	80	200	2500	SH200
V3-21/A11	33	17.6	90	225	1200	SH200
V3-21/A15	33	17.6	90	225	1200	SH200
V3-24/A11	38	20.3	90	225	1000	SH250
V3-24/A15	38	20.3	90	225	1000	SH250
V3-32/A11	35	18.7	90	225	800	SH250
V3-32/A15	35	18.7	90	225	800	SH250

Model	Refer to the diagram.	A	B	C	D	E	F	G	H	I	J	Z-K	L
Model	Refer to the diagram.	A	B	C	D	E	F	G	H	I	J	Z-K	L
V3-10/A6	P1	254	117	220	106.375	45	5	171.4	133.4	30	6-M16	6-M12	24
V3-10/A8	P2	254	117	220	139.719	45	5	171.4	/	30	6-M16	/	/
V3-12/A8	P2	304	133	220	139.719	50	6	235	/	30	6-M16	/	/
V3-15/A8	P1	381	143	300	139.719	60	6	235	171.4	43	6-M20	6-M16	24
V3-15/A11	P2	381	143	300	196.869	60	6	235	/	43	6-M20	/	/
V3-18/A8	P1	450	142	300	139.719	60	6	235	171.4	43	6-M20	6-M16	24
V3-18/A11	P2	450	142	300	196.869	60	6	235	/	43	6-M20	/	/
V3-21/A11	P1	530	156	380	196.869	60	6	330.2	235	60	6-M24	6-M20	30
V3-21/A15	P2	530	158	380	285.78	60	6	330.2	/	60	6-M24	/	/
V3-24/A11	P1	610	164	380	196.869	60	6	330.2	235	60	6-M24	6-M20	30
V3-24/A15	P2	610	164	380	285.78	60	6	330.2	/	60	6-M24	/	/
V3-32/A11	P1	810	169	380	196.869	60	6	330.2	235	60	6-M24	6-M20	30
V3-32/A15	P2	810	169	380	285.78	60	6	330.2	/	60	6-M24	/	/

Model	M	N(MAX)	O		P		Q	R	S	T	U	W	X	comb teeth
Model	M	N(MAX)	MAX	MIN	MAX	MIN	Q	R	S	T	U	W	X	comb teeth
V3-10/A6	33	51	31	10	133	108	110	16	25	M20X2.5	46	50	24	1.5X60°
V3-10/A8	33	51	31	10	133	108	110	16	25	M20X2.5	46	50	24	1.5X60°
V3-12/A8	33	64	45.75	12.75	145	115	130	18	36	M20X2.5	54.5	50	24	1.5X60°
V3-15/A8	33	78	49.75	24.25	70	35	165	25.5	55	M30X3.5	66.5	60	24	1.5X60°
V3-15/A11	33	78	49.75	24.25	82	47	165	25.5	55	M30X3.5	66.5	60	32	1.5X60°
V3-18/A8	33	92	70.75	24.25	59	24	165	25.5	55	M30X3.5	66.5	60	24	1.5X60°
V3-18/A11	33	92	70.75	24.25	70	35	165	25.5	55	M30X3.5	66.5	60	32	1.5X60°
V3-21/A11	40	87	93.5	27.5	70	35	180	25	55	M30X3.5	77	68	30	3.0X60°
V3-21/A15	40	87	93.5	27.5	70	35	180	25	55	M30X3.5	77	68	30	3.0X60°
V3-24/A11	40	126.5	93.5	27.5	70	35	180	25	55	M30X3.5	77	68	30	3.0X60°
V3-24/A15	40	126.5	93.5	27.5	70	35	180	25	55	M30X3.5	77	68	30	3.0X60°
V3-32/A11	40	104.8	196.5	25.5	47	12	180	25	55	M30X3.5	93	68	30	3.0X60°
V3-32/A15	40	104.8	196.5	25.5	47	12	180	25	55	M30X3.5	93	68	30	3.0X60°
