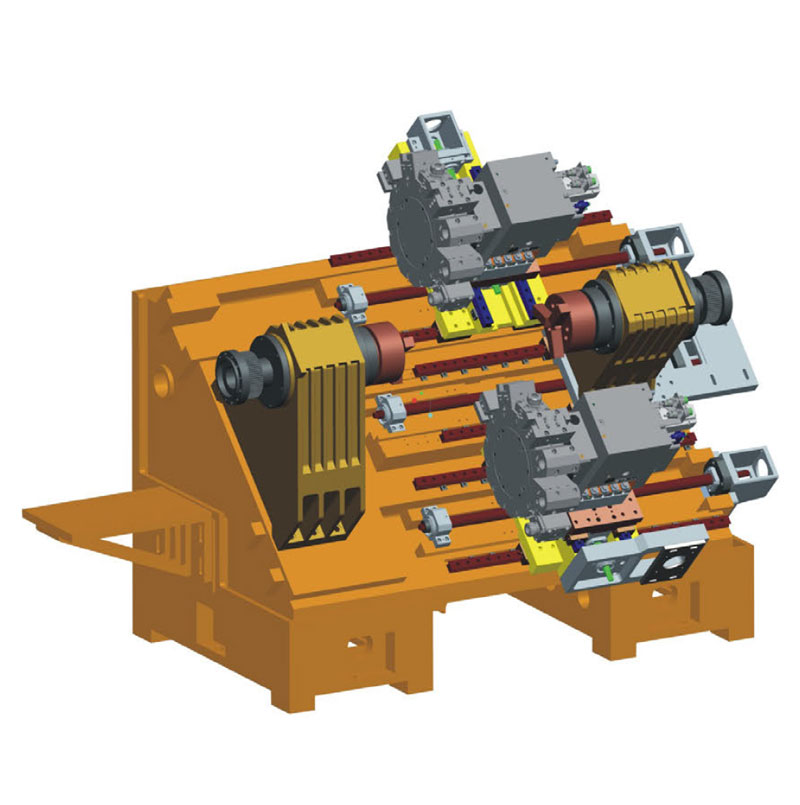

45°Turning Centre(Dual Spindle Double Turret) GP-500ST

Inquire Now Next

Product Size

ltemS i z eGP-500ST
Working rangeMax.Turning diameter over bedφ680
Max.Turning swing dia.over carriageφ400
Max.Turing diameterφ250(When the X-axis is protected with a special hydraulic turret.)
Max.Length between both chucks560580
Max.Processing length540560
Max.X/Z axis traX2/X4 axis230/160
Z2/Z4 axis570/570
Max.Tailstock travel570

  Feed screw		Controlaxis7Axis(X2+X4+Z2+Z4+Z5+C1+C2)
X2/X4 axis ball-screw3210-C3
(N·m)
Recommend theX2/X4 axis motor torque		>10
Z2/Z4 axis ball-screw4010-C3
(N·m)
Recommend the Z2/Z4axis motor torque		>15
Z5 axis ball-screw4010-C3
(N·m)Recommend the Z5 axis motor torque>15
BEDBed slant angle45° Integral cast bed
Linear guide's span400

Spindle		(tpm)Max.spindle speedmain spindle:3000              back spindle:4500main spindle:4500              back spindle:4500
Spindle through-hole diametermain spindle:φ79      back spindle:φ61main spindle:φ61         back spindle:φ61
Spindle nose sizemain spindle:A2-6          back spindle:A2-6main spindle:A2-6          back spindle:A2-6
(KW)Recommend the spindle motor powermain spindle:11          back spindle:7.5main spindle:7.5             back spindle:7.5
Hydraulic chuck or collet chuckmain spindle:10 inch          back spindle:8 inchmain spindle:8 inch          back spindle:8 inch
