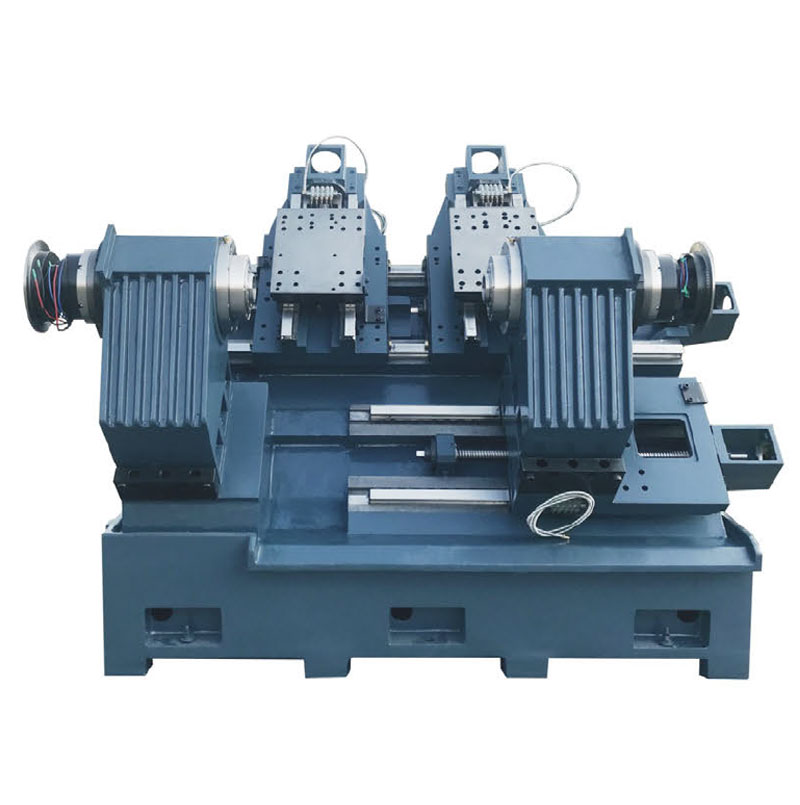

45°Turning Centre(Double Spindle and Turret) GP-400ST

Inquire Now Next

Product Size

l t e m

S i z e

GP-400ST

Working range

Max.Turning diameter over bed

φ580

Max.Turning swing dia.over carriage

φ350

Max.Turing diameter

φ250(When the X-axis is protected with a special hydraulic turret.)

Max.Length between both chucks

480

500

Max.Processing length

350

Max.X/Z axis trav

X1/X2 axis

230/230

Z1/Z2 axis

400/530

Max.Tailstock travel

530

Feed screw

Control axis

7Axis(X1+X2+Z1+Z2+Z3+C1+C2)

×1/X2 axis ball-screw

3208-C3

(N·m)Recommend theX1/X2axis molortorque

>10

Z axis ball-screw

3208-C3

(N·m)Recommend the Zaxis motor torque

>15

Tailstock ball-screw

3208-C3

(N·m)Recommend talstock motor torque

>15

BED

Bed slant angle

45° Integral cast bed

Linear guide's span

400

Spindle

(rpm)Max.spindle speed

main spindle:4500 back spindle:4500

Spindle through-hole diameter

main spindle:φ61 back spindle:φ56

main spindle:φ56 back spindle:φ56

Spindle nose size

main spindle:A2-6 back spindle:A2-5

main spindle:A2-5 back spindle:A2-5

(KW)Recommend the spindle motor power

main spindle:7.5 back spindle:5.5

main spindle:5.5 back spindle:5.5

draulic chuck or collet chuck

main spindle:8 inch back spindle:6 inch

main spindle:6 inch back spindle:6 inch
