Product Details

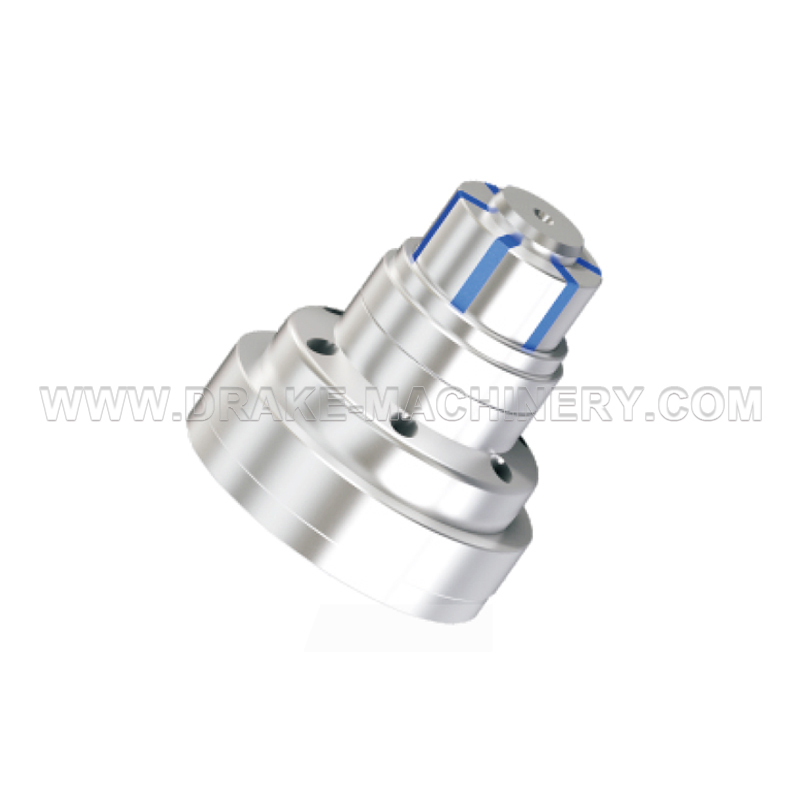

Segmented clamping mandrels with hardened steel segments are particularly suitable for clamping workpieces with
internal geometries.
Main applications are turning, grinding, milling, tool cutting, balancing, centering, bores, etc.

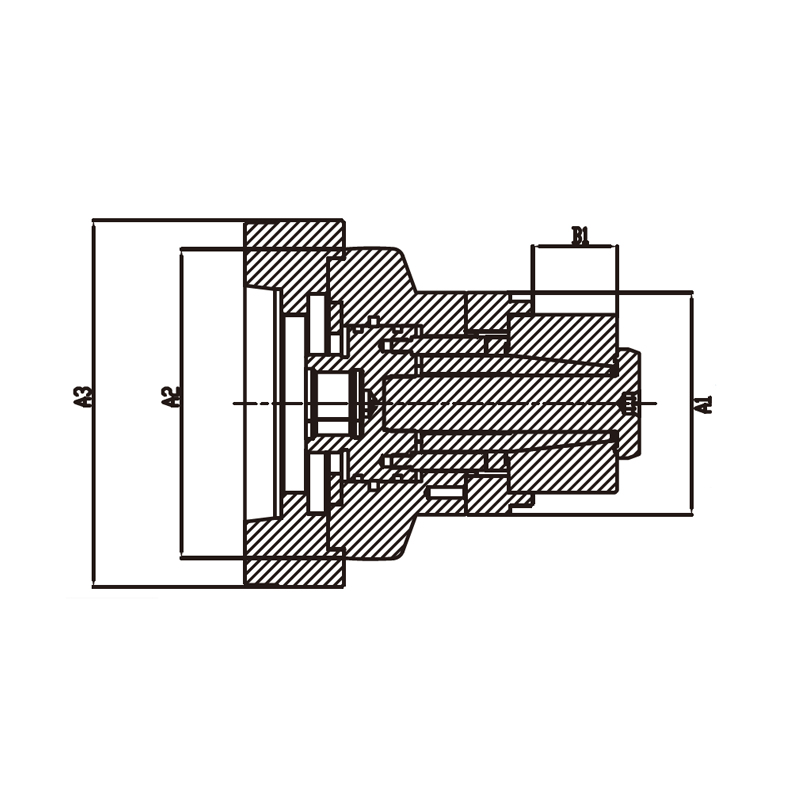

Product Size
Product Parameters
| Type | Clamping(mm) | Clamp forc | Max RPM(r/min) | A1 | A2 | A3 | A4 | B1 |
| T211-0 | 20-28 | 100 | 6000 | 65 | 106 | Change with different connection flanges | 144-165 | 22 |
| T211-1 | 26-38 | 110 | 6000 | 69 | 106 | 144-165 | 26 | |
| T211-2 | 36-54 | 140 | 6000 | 93 | 131 | 160-210 | 43 | |
| T211-3 | 50-80 | 150 | 5500 | 96 | 139 | 160-210 | 49 | |
| T211-4 | 69-100 | 150 | 5500 | 120 | 139 | 160-210 | 59 | |
| T211-5 | 100-130 | 150 | 4500 | 145 | 230 | 160-210 | 76 | |
| T211-6 | 130-160 | 150 | 3500 | 180 | 230 | 179-280 | 84 | |
| T211-7 | 160-200 | 150 | 3500 | 230 | 248 | 235-280 | 89 |
-
