Spring Collet Series

Inquire Now Next

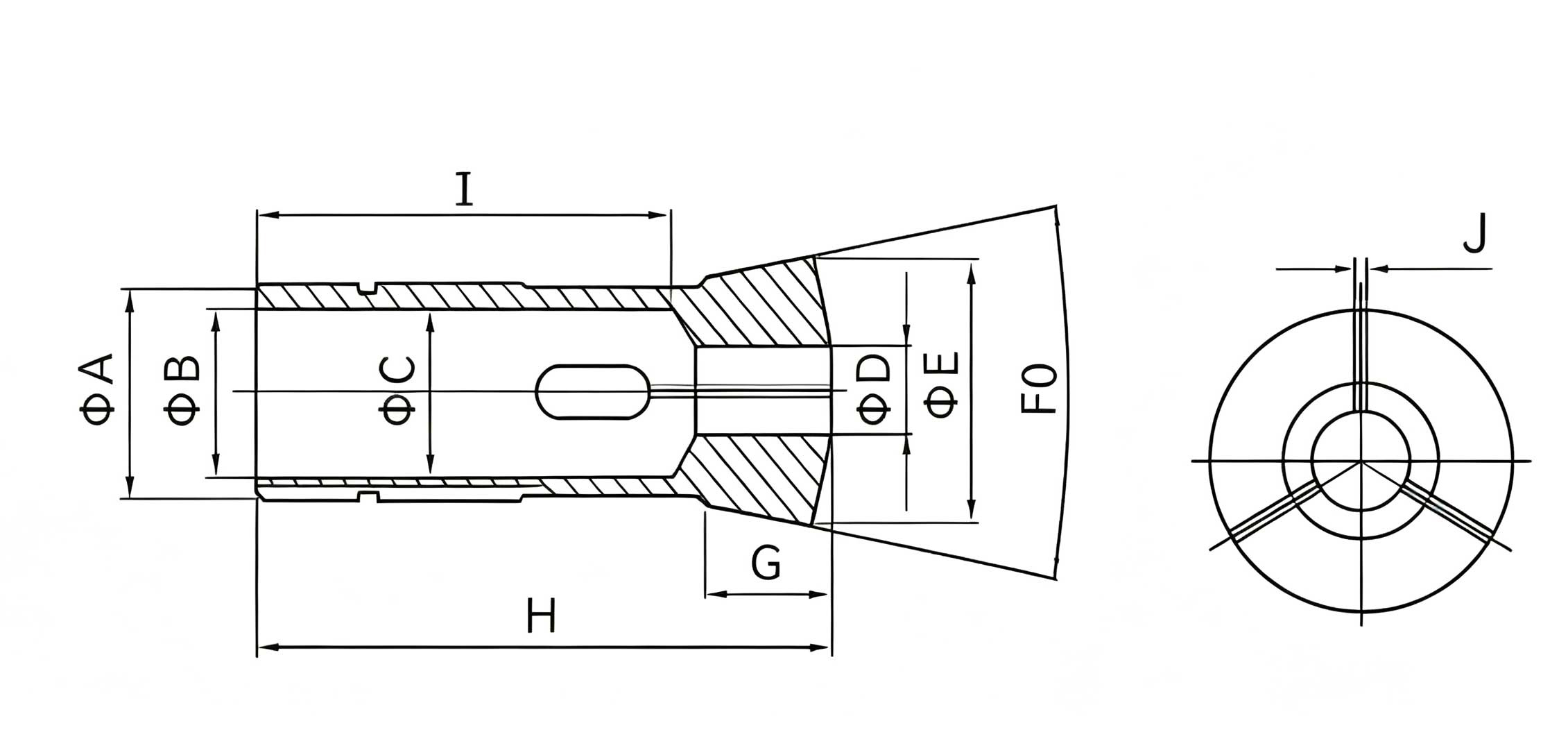

Product Size

Product Parameters

YB Series Product Parameters
Product Model	A	B	C	D(Max)	E	F	G	H	I	J
YB-15	M18.2*1.5	13.5	19	15	26.3	30°	16	76	62	3-1
YB-25	31.3*20 Threads	25.5	32	25	39.5	20°	23	104	75	3-1.2
16C	M47.5*1.75	40.5	48	40	58.6	20°	20	112	65	4-1.5
20C	M72*2	62	73	60	85	20°	30	125	80	3-2
