Product Details
Product Introduction:
1.The JA series hollow air rotary cylinder is a high-performance double-piston rotary cylinder.
2.It delivers powerful double-piston push/pull force with minimal air leakage.
3.Specially designed to drive CNC 3-jaw chucks or collet chucks.
4.The rotary cylinder drives the front-mounted chuck via air pressure, with two operation modes: forward push and backward pull.
5.The air rotary cylinder generates no heat when running at high speed.
6.Built-in self-locking function prevents workpieces from falling off if air supply is cut off.
Product Application:
1.Model suffix "D" stands for backward pull type, while "P" stands for forward push type.
2.Maximum through-hole diameter: Φ42.
3.Mounted via rear flange connection.
4.Universally applicable to clamping drive assemblies of small & medium CNC lathes.
5.Simplifies and speeds up the clamping drive modification of conventional machine tools.
6.Custom piston stroke can be extended up to 25 mm.

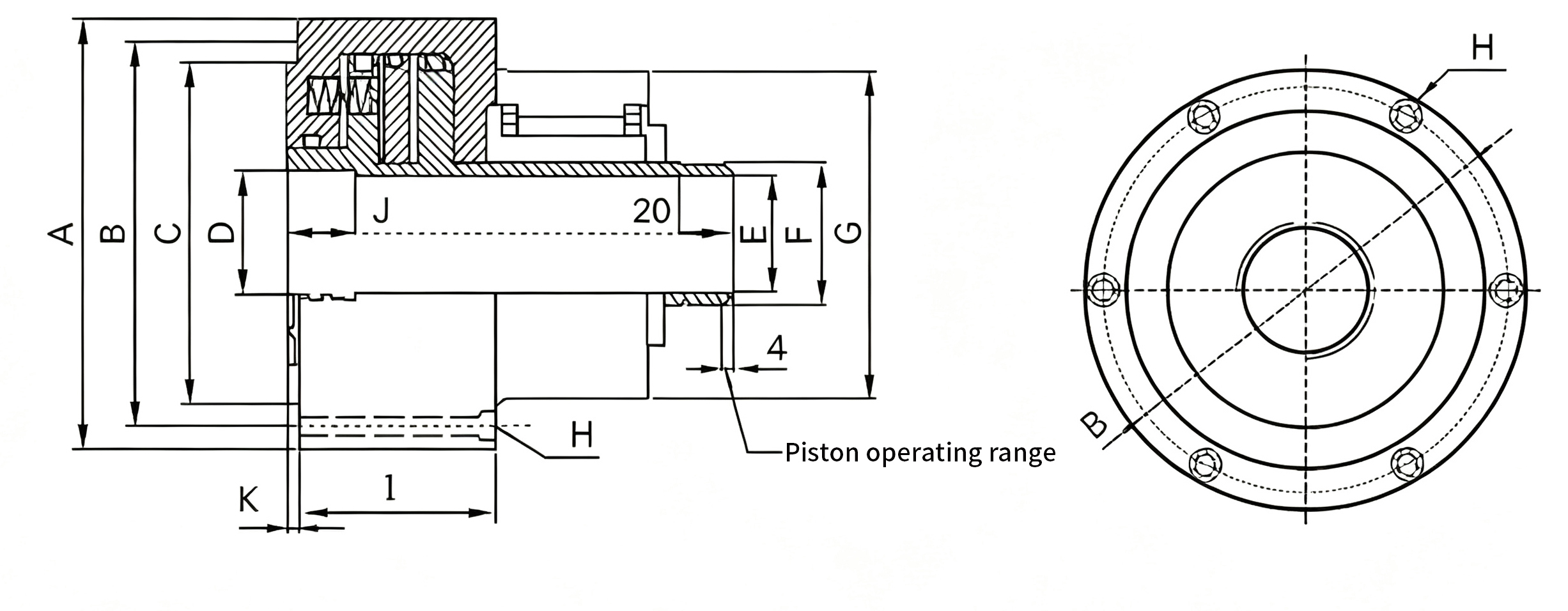

Product Size
Product Parameters
| Model No. | A | B | C | D | E | F | G | H | I | J | K | Piston Stroke (mm) | Max Pulling Force (kgf) | Operating Pressure (kg/cm²) | Max Rotation Speed (r.p.m) | Weight (kg) |
| JA42D(P) | Φ175 | Φ159 | Φ140 | M55×2.0 | Φ42.2 | M49×1.5 | Φ114 | 6–M8 | 77 | 28 | 5 | 4 | 2000 | 3~8 | 4000 | 8.5 |
| JA42D(P)-150D | Φ150 | Φ136 | Φ120 | M45×2.0 | Φ42.2 | M49×1.5 | Φ114 | 6–M6 | 47 | 26 | 4 | 4 | 850 | 3~8 | 4000 | 6.2 |
| JA42D(P)-150S | Φ150 | Φ136 | Φ120 | M45×2.0 | Φ42.2 | M49×1.5 | Φ114 | 6–M6 | 77 | 26 | 4 | 4 | 1650 | 3~8 | 4000 | 7.6 |
-
