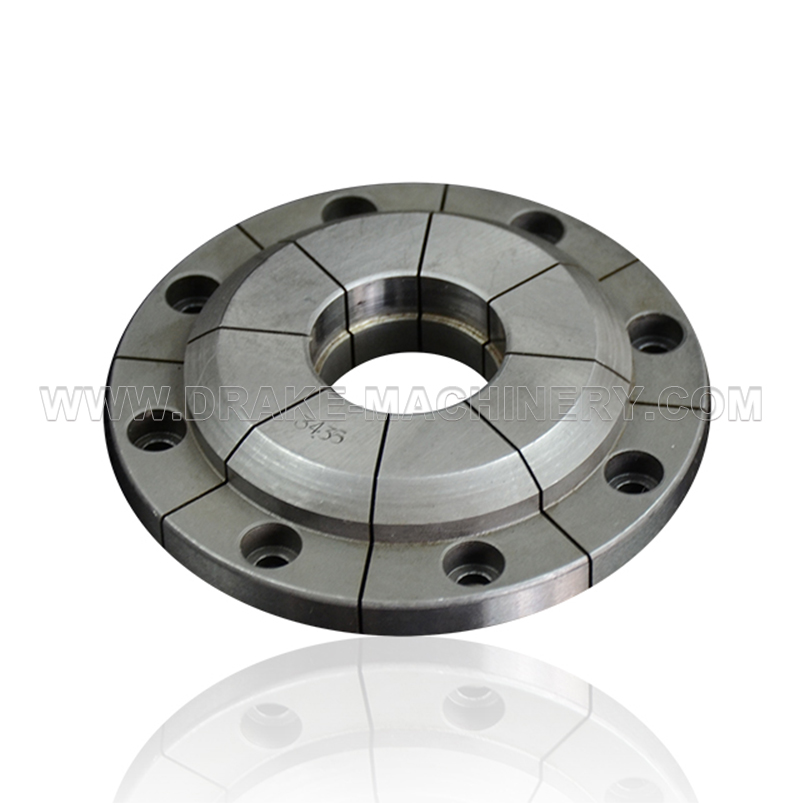

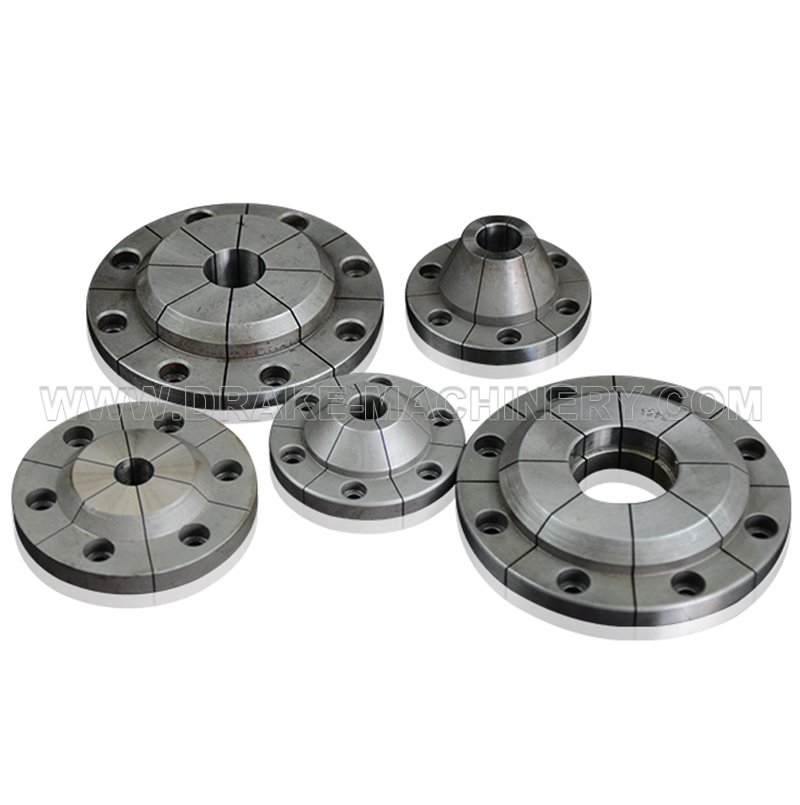

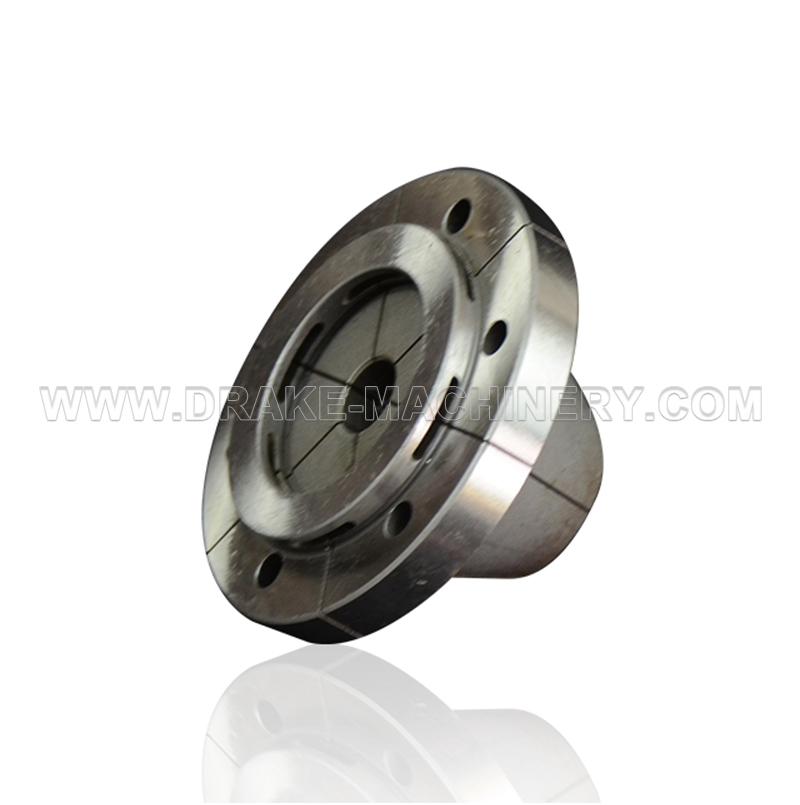

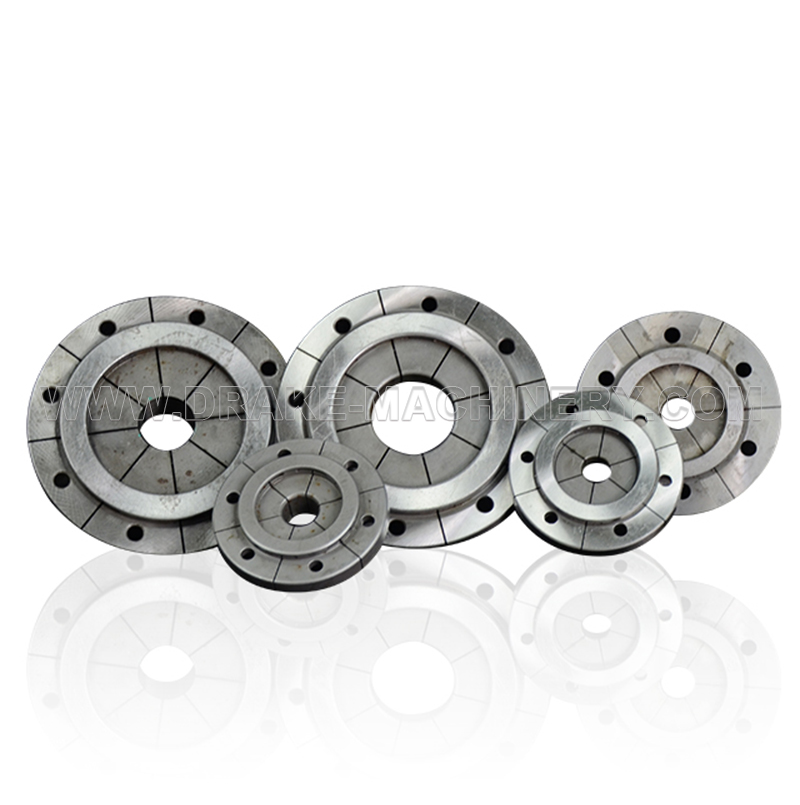

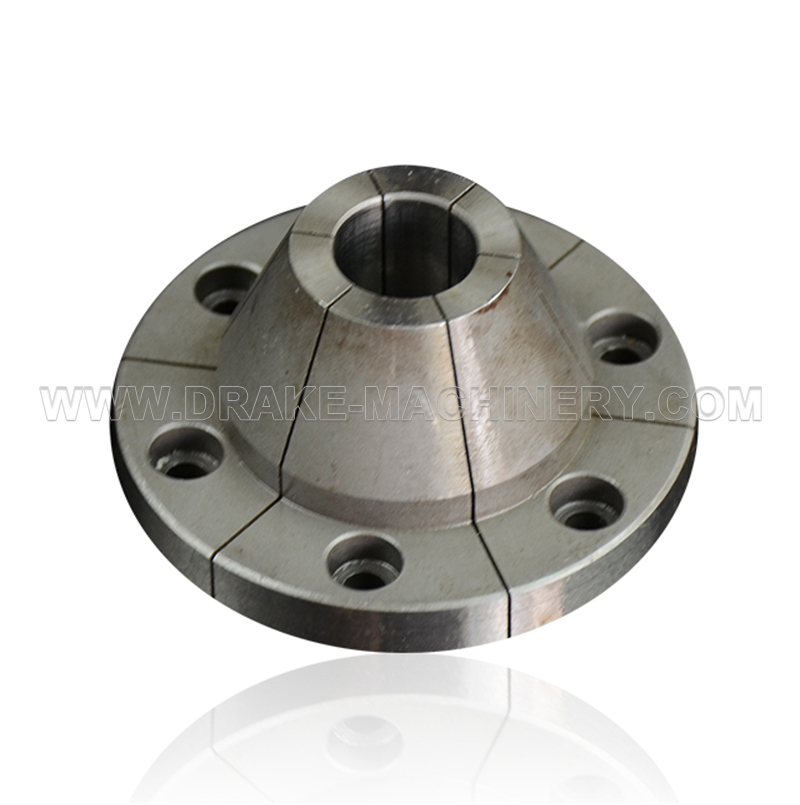

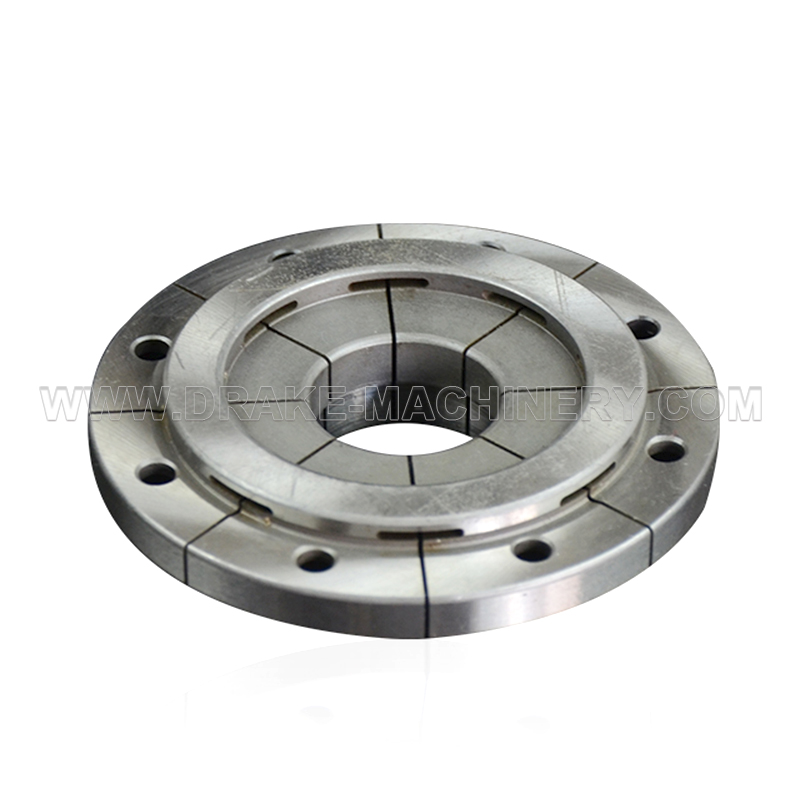

Product Details
1.Repeatability is 1 u or less.
2. Clamping accuracy of up to 2 u
3.The one-piece structure has a permanent precision life.
4. There are two ways of internal clamping and external clamping

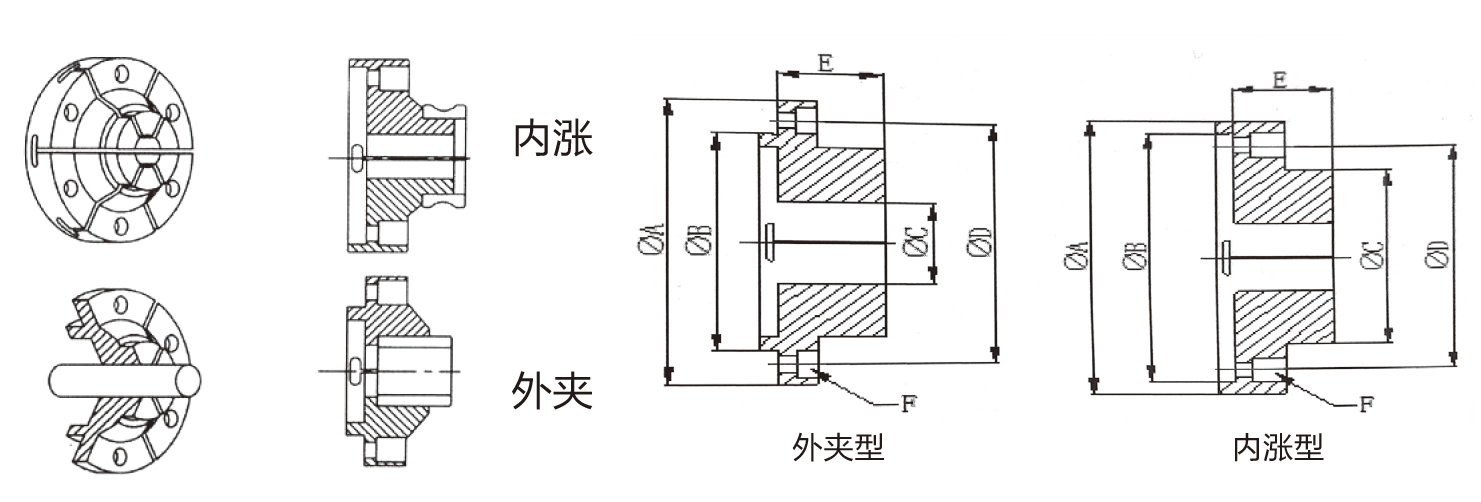

Product Size
Product Parameters
| Model/Spec | JD-60 | JD-70 | JD-100 | JD-150 | ||||
| Clamping method | External type | Inter type | External type | Inter type | External type | Inter type | External type | Inter type |
| A | 65 | 70 | 75 | 80 | 105 | 110 | 155 | 160 |
| B | 45 | 60 | 50 | 70 | 80 | 100 | 120 | 150 |
| Clamping range | 2-60 | 6-80 | 3-100 | 6-140 | 3-150 | 6-170 | 5-200 | 10-220 |
| D | 52 | 52 | 60 | 60 | 90 | 90 | 135 | 135 |
| E | 20 | 20 | 22 | 22 | 29 | 29 | 35 | 35 |
| F | 6-M4 | 6-M4 | 6-M5 | 6-M5 | 8-M5 | 8-M5 | 8-M6 | 8-M6 |
-
