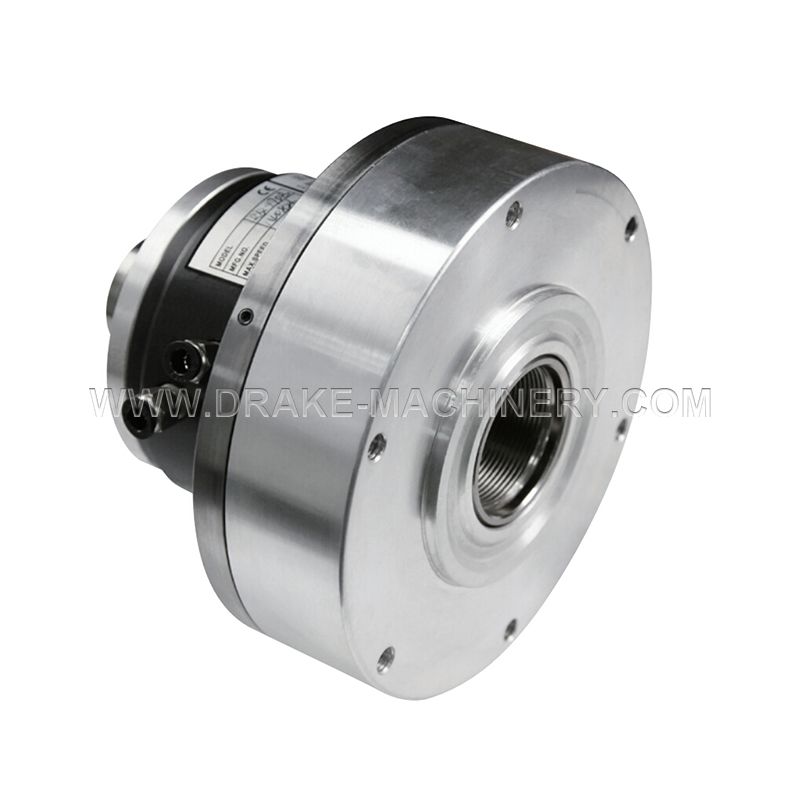

Product Details
The RQ Hollow Single Piston Rotary Cylinder offers versatility that caters to a wide range of industrial applications. Whether you're in manufacturing, automation, or robotics, this cylinder is engineered to adapt to your unique requirements and deliver exceptional results.
Its compact design allows for easy integration into your existing systems, saving valuable space and streamlining your operations. The RQ cylinder supports various mounting options, providing flexibility and ensuring a seamless fit into your machinery setup.
Equipped with high rotational speed and excellent torque capabilities, the RQ cylinder empowers you to optimize your production processes. From indexing, rotary transfer, and packaging to assembly, sorting, and more, this cylinder opens up a world of possibilities, enabling you to maximize efficiency in every aspect of your operations.
Product Feature:
The structure is through-hole, available for long shaft workpiece processing.
Lightweight, high speed, valve body by the special design, can make the compressed air consumption saving.
Internal components are using inbound ingredients, running balance, long service life.
Through-hole can be customized according to customer’s requirement. Please inject small amount of oil mist when using.

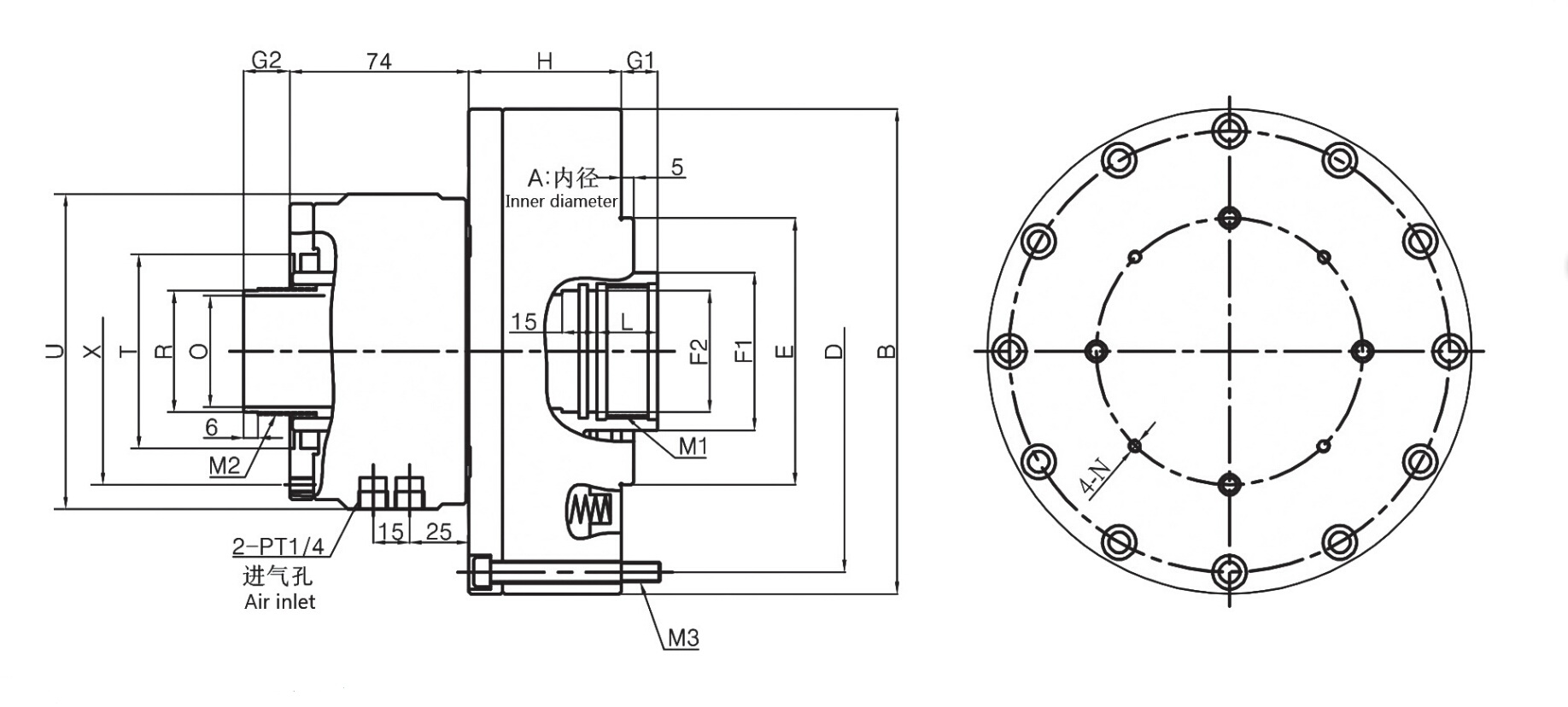

Product Size
Product Parameters
Please review the following parameter table. We offer various types of rotating hydraulic cylinders. If you need any assistance, feel free to leave your email and questions, and we will arrange for a professional to connect with you!
Performance parameters | |||||||||
Model/Spec. | Piston area (cm²) | 行程Stroke (mm) | Hightest turnover number min-1(rpm) | Maximum working pressure MPa(kgf/cm²) | Max.pull force (kgf/KN) | GD² (kg.m²) | Weight (kg) | ||
Press side | Pull side | Push side | Pull side | ||||||
RQ-130 | 116.8 | 116.8 | 15 | 5000 | 0.8(8) | 933(9.14) | 933(9.14) | 0.04 | 8.4 |
RQ-150 | 153 | 143.5 | 15 | 4500 | 0.8(8) | 1224(12) | 1148(11.25) | 0.06 | 9.5 |
RQ-170 | 198.7 | 188.5 | 15 | 4500 | 0.8(8) | 1589.6(15.58) | 1508(14.78) | 0.09 | 11.6 |
Size parameters | ||||||||||||
Model/Spec. | A | B | C | E (h7) | F1 | F2 (H8) | G1 max. | G1 min. | G2 min. | G2 min. | H | L |
RQ-130 | 130 | 160 | 143 | 110 | 45 | 36.5 | 15 | 0 | 35 | 20 | 60 | 25 |
RQ-150 | 150 | 180 | 163 | 110 | 65 | 50 | 15 | 0 | 35 | 20 | 63 | 25 |
RQ-170 | 170 | 200 | 182 | 110 | 65 | 50 | 15 | 0 | 35 | 20 | 63 | 25 |
Model/Spec. | M1 | M2 | M3 | O (H7) | N | R | T | U | X |
RQ-130 | M38×1.5 | M44×1.5 | 6-M8×65 | 36 | M5×10 | 42 | 74 | 108 | 90 |
RQ-150 | M55×2 | M52×1.5 | 6-M8×70 | 46 | M6×10 | 50 | 86 | 130 | 110 |
RQ-170 | M60×2 | M58×1.5 | 6-M8×70 | 52 | M6×10 | 56 | 86 | 130 | 110 |
